600mm wall-hung WC cabinet with dual flush plate
Product Options
Colour options:
White
|
Light Grey
|
As Shown
| W33A Steel frame for WC unit |
| AW32L 600mm back to wall WC unit (including cistern tank and front dual flush plate),light grey |
| AW34L - Combined product code |
Gross Weight Including Packaging
| W33A - frame for WC units - 9.34kg |
| AW32L - base unit - 16.5kg |
Packed Dimension
| W33A - 515 x 425 x 225 = 0.0492 m3 |
| AW32L - 700 x 400 x 920 = 0.2576 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Please ensure that the chosen WC pan is tall enough to cover the cut out |
|
Vinyl wrap gloss finish |
|
Full and half dual flush system |
|
Removable front access panel |
|
Steel wall hung WC frame |
|
Rigid solid carcass - not flat pack |
|
Work top required |
Downloads
- Instructions - PDF - W33A (English)
- Instructions - PDF - AW32L (English)
- Instructions - PDF - W33A (French)
-
2D CAD-File - DWG -
AW34L
(AW34L_LD.dwg)
-

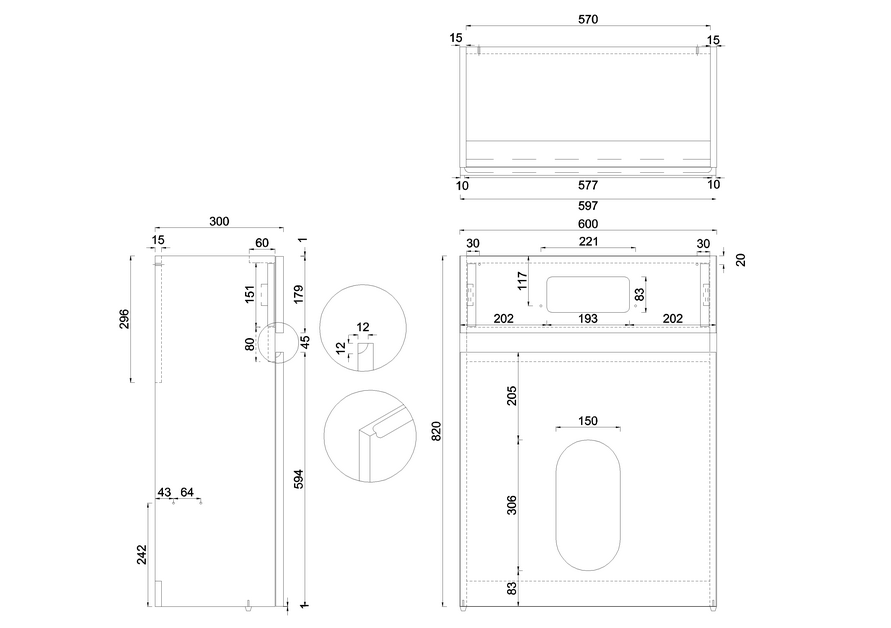

2D Drawing - PDF -
AW34L
(AW34L_LD.pdf)
2D Drawing - PDF - AW34L
-
3D DWG - File - DWG
-
AW34L
(AW34-20201119.dwg)
-
3D DXF - File - DXF
-
AW34L
(AW34-20201119.dxf)
-
3D IGS - File - IGS
-
AW34L
(AW34-20201119.igs)
-
3D RFA BIMM Objects - File - RFA
-
AW34L
(AW34-20201119.rfa)
