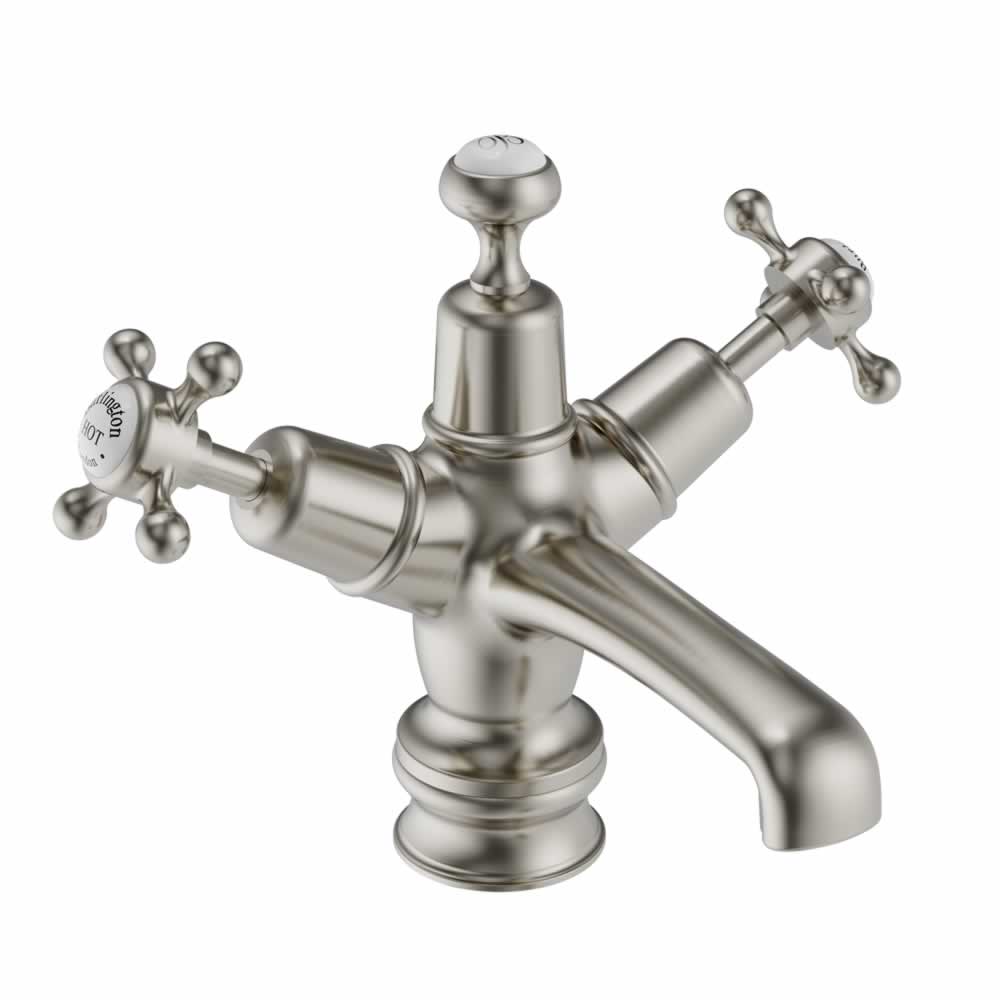

Burlington basin mixer with high central indice
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Waste options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
Standard base
|
Regent base
|
with click-clack waste
|
with pop-up waste
|
|
White
|
As Shown
| T12-QT GOLD Quarter Turn Basin Mixer , with pop up (excluding tap heads & base) GOLD |
| T1 GOLD Claremont tap handles (pair) GOLD |
| T4B GOLD Regent small single tap base (for Basin & Bidet monoblocs - single) GOLD |
| W11 GOLD Click-clack basin waste- GOLD |
| CLR6-QT GOLD - Combined product code |
Colour
| T12-QT GOLD - tap - Polished Gold |
| T1 GOLD - tap handle - Polished Gold |
| T4B GOLD - regent tap base - Polished Gold |
| W11 GOLD - waste - Polished Gold |
Material
| T12-QT GOLD - tap - Brass |
| T1 GOLD - tap handle - Brass |
| T4B GOLD - regent tap base - Brass |
| W11 GOLD - waste - Brass |
Size
| T12-QT GOLD - 166 x 159 x 152mm |
| T1 GOLD - 65 x 65 x 28mm |
| T4B GOLD - 55 x 55 x 29mm |
| W11 GOLD - 61 x 61 x 78mm |
Nett Weight
| T12-QT GOLD - tap - 1.75kg |
| T1 GOLD - tap handle - 0.15kg |
| T4B GOLD - regent tap base - 0.15kg |
| W11 GOLD - waste - 0.23kg |
Gross Weight Including Packaging
| T12-QT GOLD - tap - 2.26kg |
| T1 GOLD - tap handle - 0.17kg |
| T4B GOLD - regent tap base - 0.21kg |
| W11 GOLD - waste - 0.27kg |
Packed Dimension
| T12-QT GOLD - 415 x 335 x 180 = 0.025 m3 |
| T1 GOLD - 60 x 60 x 62 = 0.0002 m3 |
| T4B GOLD - 65 x 65 x 35 = 0.0001 m3 |
| W11 GOLD - 110 x 70 x 70 = 0.0005 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12 | 13.2 | 15.2 | 19.4 | 21.4 | n/a | n/a |
| Spout (aerator) | 4.5 | 7.8 | 8.7 | 9.8 | 12 | n/a | n/a |
| SP1660 | 1, 2 quarter turn COLD cartridge for T12-QT GOLD |
| SP1661 | 1, 2 quarter turn HOT cartridge for T12-QT GOLD |
| SP1772 | decorative cap in gold and B logo ceramic for T12-QT GOLD, T14-QT GOLD |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1554 | gold finish Bell shape handle part for T27-QT GOLD, T12-QT GOLD, T14-QT GOLD, T5-QT GOLD, T6-QT GOLD, T8-QT GOLD |
| SP1706 | gold finish Lower vertical and horizontal control rods of product T12-QT GOLD |
| SP1715 | gold finish Plug of pop up waste for product T12-QT GOLD, T14-QT GOLD |
| SP1725 GOLD | waste in gold for T12-QT GOLD, T14-QT GOLD |
Downloads
- Instructions - PDF - T12-QT GOLD (English)
- Instructions - PDF - W11 GOLD (English)
- Instructions - PDF - T12-QT GOLD (French)
- Instructions - PDF - W11 GOLD (French)
-
2D CAD-File - DWG -
CLR6-QT GOLD
(CLR6_LD.dwg)
-
2D Drawing - PDF -
CLR6-QT GOLD
(CLR6_LD.pdf)
2D Drawing - PDF - CLR6-QT GOLD
-
3D RFA BIMM Objects - File - RFA
-
CLR6-QT GOLD
(T12_T1_T4B_W11.rfa)
- 3D DWG - File - DWG - T12-QT GOLD (T12.dwg)
- 3D DXF - File - DXF - T12-QT GOLD (T12.dxf)
- 3D IGS - File - IGS - T12-QT GOLD (T12.igs)
- 3D DWG - File - DWG - T4B GOLD (T4B.dwg)
- 3D DXF - File - DXF - T4B GOLD (T4B.dxf)
- 3D IGS - File - IGS - T4B GOLD (T4B.igs)
- 3D IGS - File - IGS - W11 GOLD (W11 basin waste.igs)
- 3D IGS - File - IGS - T1 GOLD (T1.igs)
