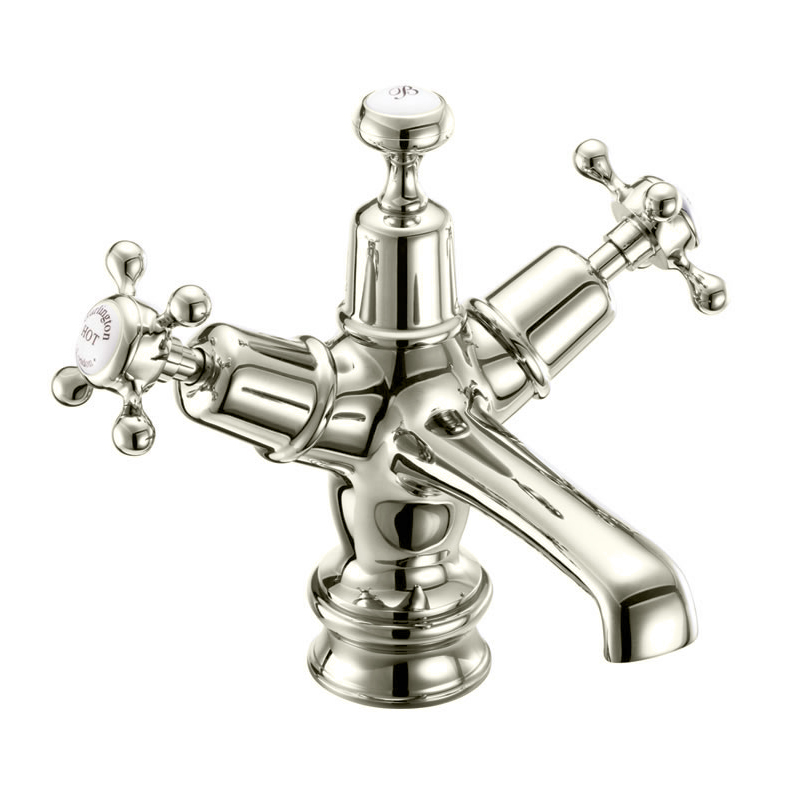

Burlington basin mixer with high central indice
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Waste options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
tradional screw-down
|
|
Standard base
|
Regent base
|
with click-clack waste
|
|
White
|
As Shown
| T12-QT NKL Quarter Turn Basin Mixer , with pop up (excluding tap heads & base) -nickel |
| T1 NKL Claremont tap handles (pair) -nickel |
| W11 NKL Basin click clack waste -nickel |
| CL6-QT NKL - Combined product code |
Colour
| T12-QT NKL - tap - Polished Nickel |
| T1 NKL - tap handle - Polished Nickel |
| W11 NKL - waste - Polished Nickel |
Gross Weight Including Packaging
| T12-QT NKL - tap - 2.26kg |
| T1 NKL - tap handle - 0.17kg |
| W11 NKL - waste - 0.27kg |
Packed Dimension
| T12-QT NKL - 295 x 270 x 182 = 0.0145 m3 |
| T1 NKL - 52 x 52 x 65 = 0.0002 m3 |
| W11 NKL - 110 x 70 x 70 = 0.0005 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12 | 13.2 | 15.2 | 19.4 | 21.4 | n/a | n/a |
| Spout (aerator) | 4.5 | 7.8 | 8.7 | 9.8 | 12 | n/a | n/a |
| SP1662 | 1, 2 quarter turn COLD cartridge for T12-QT NKL |
| SP1663 | 1, 2 quarter turn HOT cartridge for T12-QT NKL |
| SP1555 | nickel finish Bell shape handle part for products T27-QT NKL, T12-QT NKL, T14-QT NKL, T5-QT NKL, T6-QT NKL, T8-QT NKL |
Downloads
- Instructions - PDF - T12-QT NKL (English)
- Instructions - PDF - W11 NKL (English)
- Instructions - PDF - T12-QT NKL (French)
- Instructions - PDF - W11 NKL (French)
-
2D CAD-File - DWG -
CL6-QT NKL
(CL6_LD.dwg)
-
2D Drawing - PDF -
CL6-QT NKL
(CL6_LD.pdf)
2D Drawing - PDF - CL6-QT NKL
-
3D RFA BIMM Objects - File - RFA
-
CL6-QT NKL
(T12_T1_W11.rfa)
- 3D DWG - File - DWG - T12-QT NKL (T12.dwg)
- 3D DXF - File - DXF - T12-QT NKL (T12.dxf)
- 3D IGS - File - IGS - T12-QT NKL (T12.igs)
- 3D IGS - File - IGS - T1 NKL (T1.igs)
- 3D IGS - File - IGS - W11 NKL (W11 basin waste.igs)
