134 Freestanding Vanity Unit with Drawers
Product Options
Finish Options
Worktop options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
|
Minerva Carrara white worktop
|

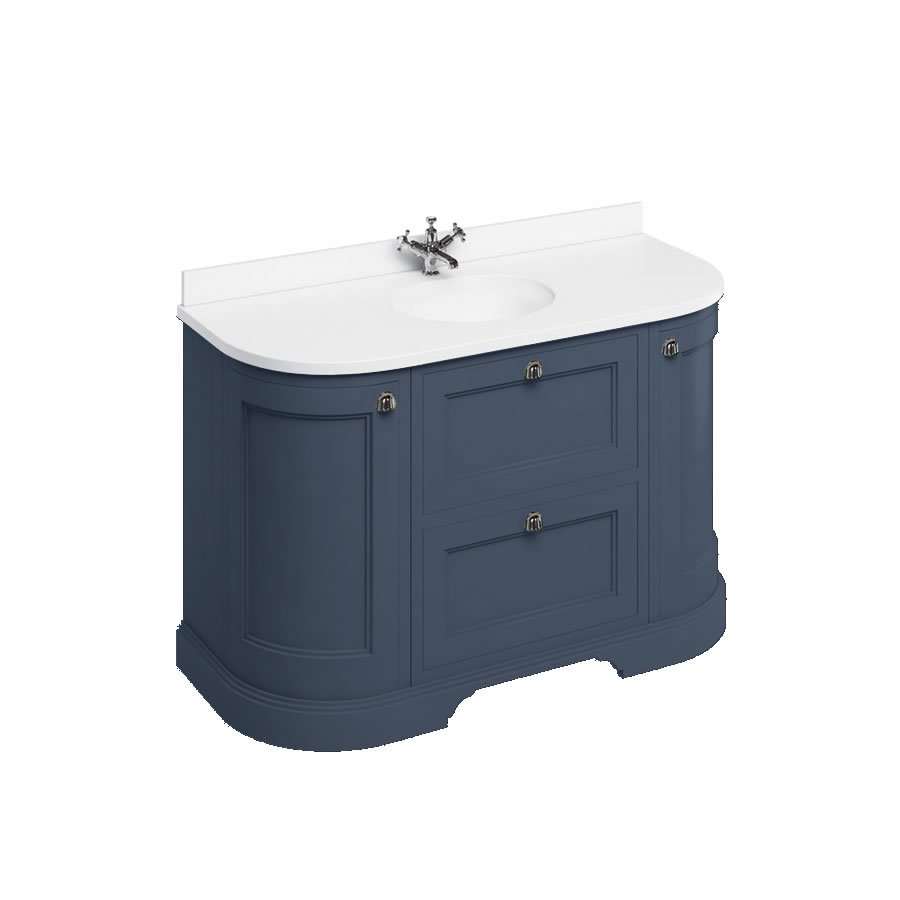

Minerva white worktop
|

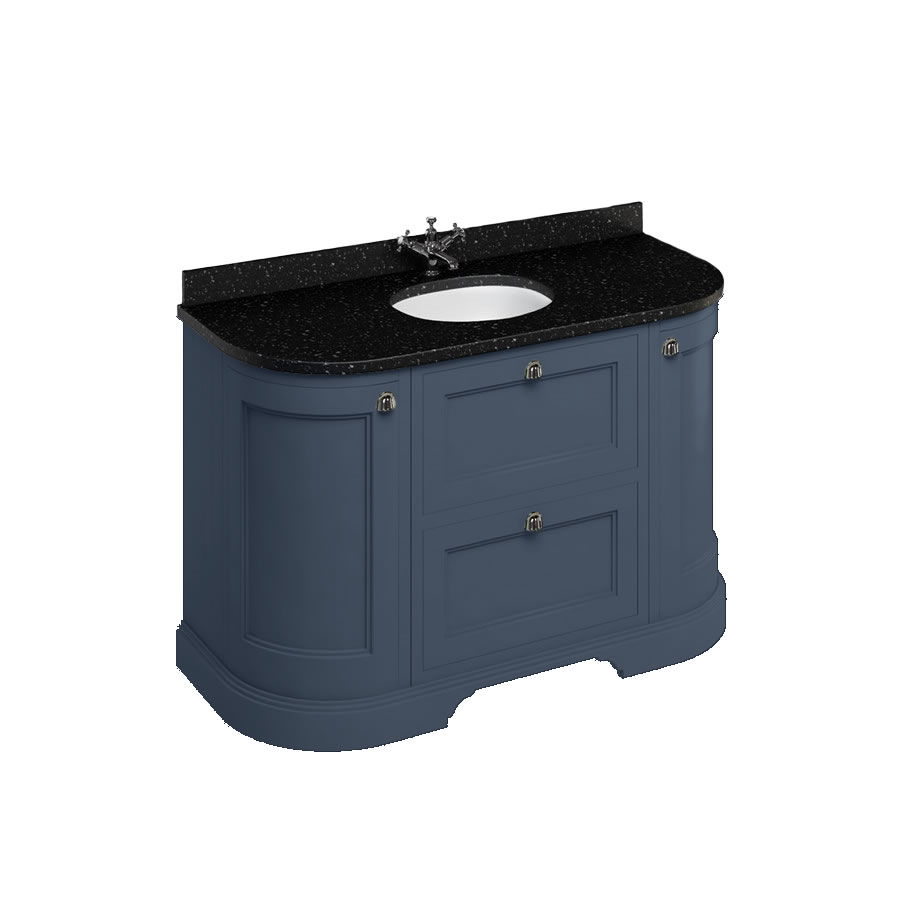

Minerva black granite worktop
|
As Shown
| FC4B Freestanding 134 Curved Vanity Unit with drawers - Blue |
| BC13 Minerva carrara white with vanity bowl |
| FC4B_BC13 - Combined product code |
Material
| FC4B - base unit - Engineered Wood - MDF |
| BC13 - worktop with intergrated basin - minerva solid surface material |
Gross Weight Including Packaging
| FC4B - base unit - 87kg |
| BC13 - worktop with intergrated basin - 43kg |
Packed Dimension
| FC4B - 1424 x 660 x 1075 = 1.0103 m3 |
| BC13 - 1420 x 625 x 255 = 0.2263 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
| SP999-B | bottom drawer (panel & internal) for Burlington freestanding unit — Blue |
| SPFC1CP_B_LH | curve Door LH for FC1, FC3, FC5 Blue |
| SPFC1CP_B_RH | curve Door RH for FC1, FC2, FC5 Blue |
| SPFC1CP_B | curve panel for FC1B, FC2B, FC3B, FC4B, FC5B |
| SP1476-B | drawer frame for FC4B with L-brackets and screws |
| SP674 | hinges for the curved panel of FC1, FC2, FC3, FC4, FC7, FC5 (1 set of 2 pieces) |
Downloads
-
2D CAD-File - DWG -
FC4B_BC13
(FC4_FT5B-B.dwg)
-
2D Drawing - PDF -
FC4B_BC13
(FC4_FT5B-B.pdf)
2D Drawing - PDF - FC4B_BC13
-
3D DWG - File - DWG
-
FC4B_BC13
(90546.dwg)
-
3D DXF - File - DXF
-
FC4B_BC13
(90546.dxf)
-
3D IGS - File - IGS
-
FC4B_BC13
(90546.igs)
-
3D RFA BIMM Objects - File - RFA
-
FC4B_BC13
(90546.rfa)
