Pivot Door & Side Panel
Product Options
Sizes (click on size to refresh details)
80cm (A), 80cm (C)
|
80cm (A), 90cm (C)
|
90cm (A), 80cm (C)
|
90cm (A), 90cm (C)
|
As Shown
| OXWPSPVC0800 Optix 10 Side Panel for Pivot Door 800 Brushed stainless steel |
| OXWPVC0900 Optix 10 Pivot Door 900 Brushed stainless steel |
Colour
| OXWPSPVC0800 - side panel - Brushed Stainless Steel |
| OXWPVC0900 - door - Brushed Stainless Steel |
Gross Weight Including Packaging
| OXWPSPVC0800 - side panel - 48kg |
| OXWPVC0900 - door - 55kg |
Packed Dimension
| OXWPSPVC0800 - 80 x 820 x 2090 = 0.1371 m3 |
| OXWPVC0900 - 80 x 880 x 2090 = 0.1471 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
2000mm enclosure height |
|
25mm width adjustment for easy fitting |
|
Outward opening pivot hinges |
|
Pivot hinge position reduces door overhang |
|
Reversible door for left or right hand entry |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
OXWPVC0900 OXWPSPVC0800
(OXWPSC0900 _ OXWPSPSC0800.dwg)
-

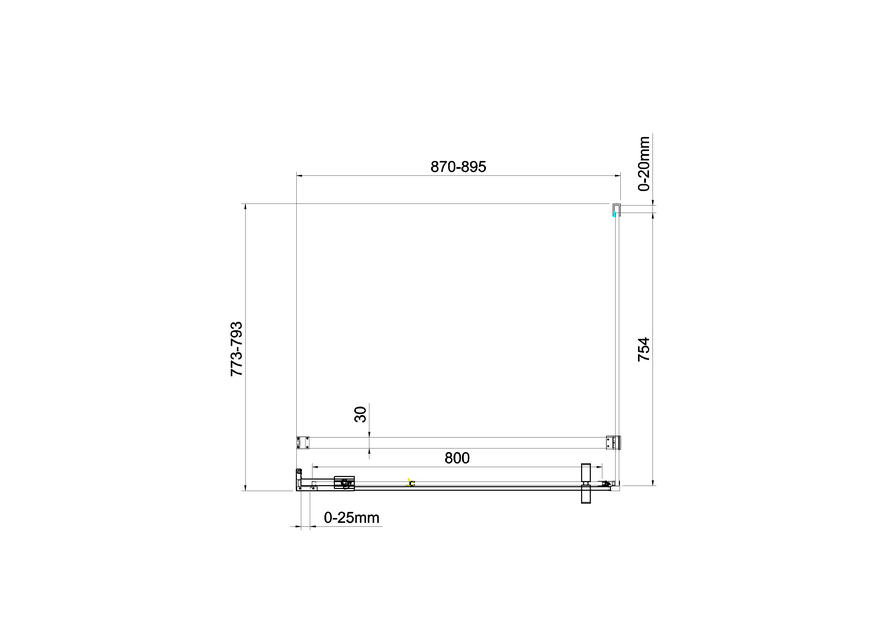

2D Drawing - PDF -
OXWPVC0900 OXWPSPVC0800
(OXWPSC0900 _ OXWPSPSC0800.pdf)
2D Drawing - PDF - OXWPVC0900 OXWPSPVC0800
