Pivot Door with in line Panel
Product Options
Sizes (click on size to refresh details)
80cm (A)
|
90cm (A)
|
100cm (A)
|
120cm (A)
|
140cm (A)
|
As Shown
| OXPDSC1000A Optix 10 Pivot Door with in line Panel 1000 Polished Stainless |
| OXPDSC1000B Optix 10 Pivot Door with in line Panel 1000 Moving Polished Stainless |
Nett Weight
| OXPDSC1000A - door - 32kg |
| OXPDSC1000B - door - 28kg |
Gross Weight Including Packaging
| OXPDSC1000A - door - 35kg |
| OXPDSC1000B - door - 30kg |
Packed Dimension
| OXPDSC1000A - 90 x 370 x 2090 = 0.0696 m3 |
| OXPDSC1000B - 90 x 680 x 2060 = 0.1261 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
2000mm enclosure height |
|
25mm width adjustment for easy fitting |
|
Flush-fit pivot hinges |
|
Reversible door for left or right hand entry |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
OXPDSC1000A
(OXPDSC1000.dwg)
-

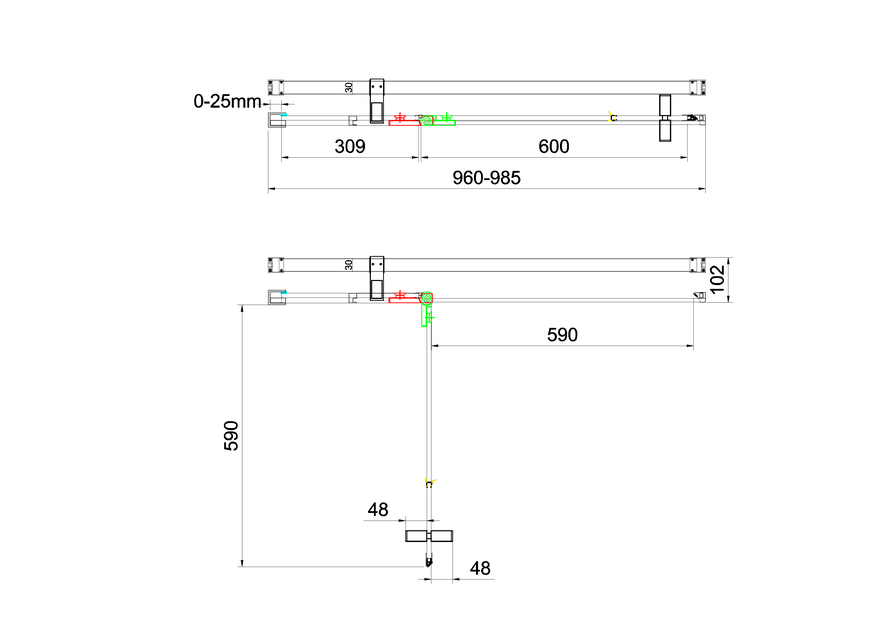

2D Drawing - PDF -
OXPDSC1000A
(OXPDSC1000.pdf)
2D Drawing - PDF - OXPDSC1000A
