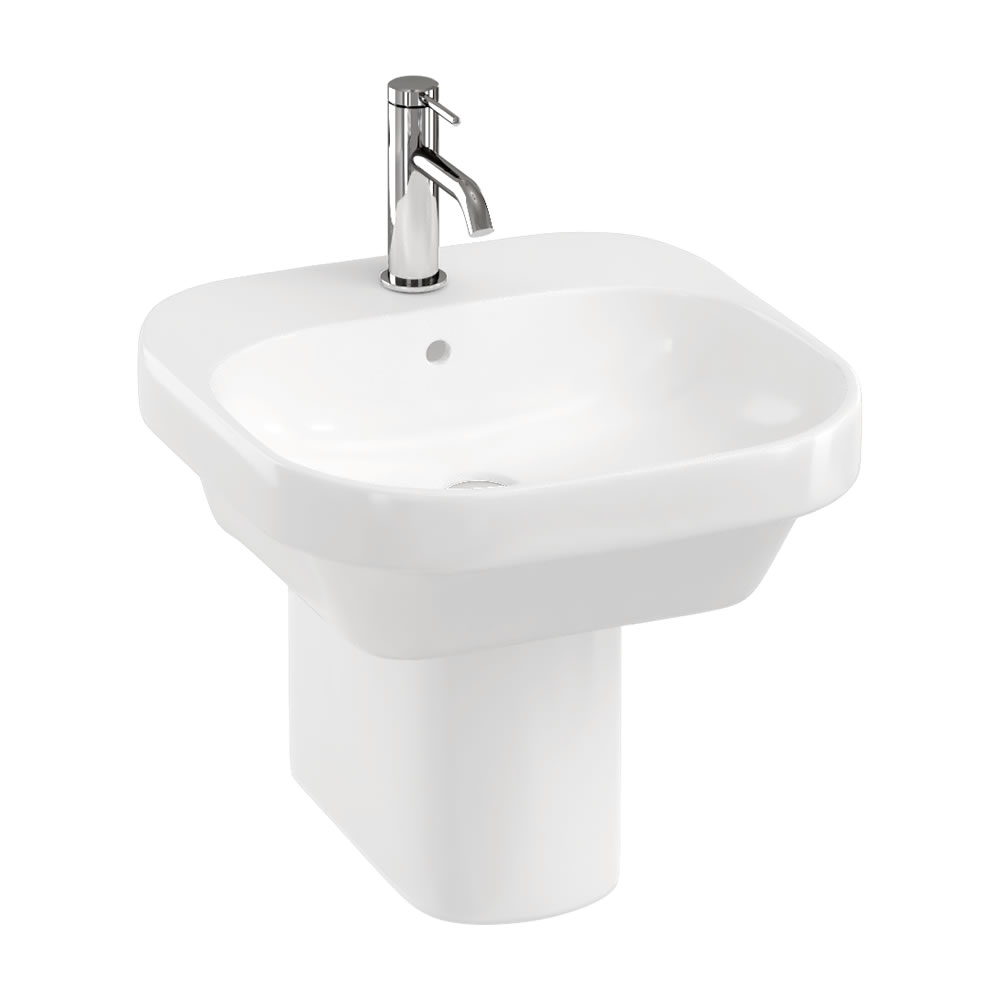

Curve2 45 Basin with Pedestal
Product Options
pedestal options
|
Full Pedestal
|
Semi-Pedestal
|
As Shown
| CUR2006 CURVE 2 Basin 450*450 |
| FP1032 Round full pedestal |
Nett Weight
| CUR2006 - basin - 10.9kg |
| FP1032 - pedestal - 9.4kg |
Gross Weight Including Packaging
| CUR2006 - basin - 11.9kg |
| FP1032 - pedestal - 14.1kg |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN31: 2011 |
Downloads
-
2D CAD-File - DWG -
CUR2.006 FP.1032
(CUR2.006_FP.1032.dwg)
-

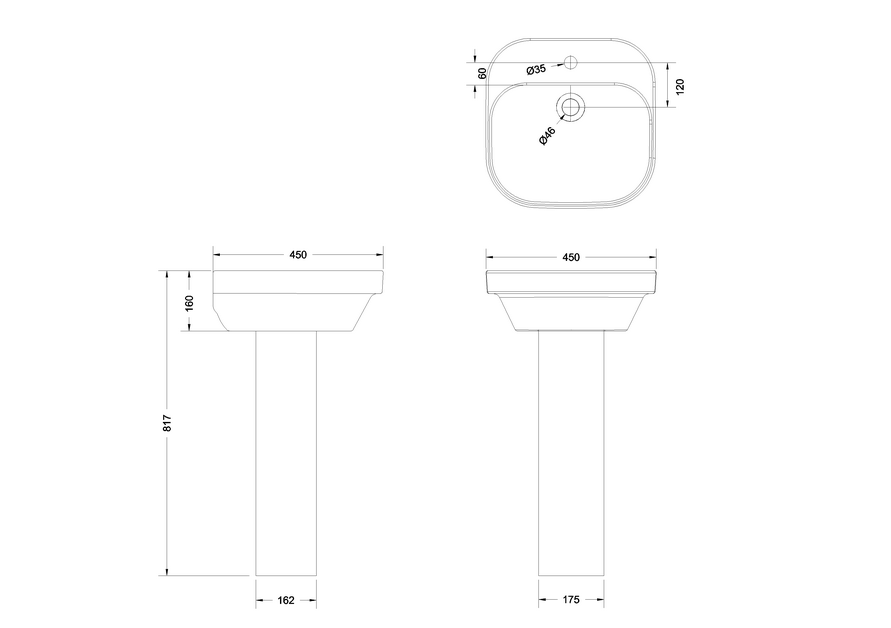

2D Drawing - PDF -
CUR2.006 FP.1032
(CUR2.006_FP.1032.pdf)
2D Drawing - PDF - CUR2.006 FP.1032
-
3D RFA BIMM Objects - File - RFA
-
CUR2.006 FP.1032
(CUR2.006_FP.1032.rfa)
- 3D IGS - File - IGS - CUR2006 (CUR2.006.igs)
- 3D STP - File - STP - FP1032 (FP.1032.stp)
