Trim 60 Basin with Pedestal

asaq2.Model.Web_product_new?.web_name

Product Options

pedestal options

Trim 60 Basin with Full Pedestal

Full Pedestal

Trim 60 Basin with Semi-Pedestal

Semi-Pedestal

Alternate Text

As Shown

SP1033 Round semi pedestal

TRIM.004 TRIM 600 BASIN 1TH

Colour

SP1033 - pedestal - Gloss White

TRIM.004 - basin - Gloss White

Material

SP1033 - pedestal - Vitreous China

TRIM.004 - basin - Vitreous China

Size

SP1033 - 265 x 175 x 250mm

TRIM.004 - 410 x 600 x 160mm

Nett Weight

SP1033 - pedestal - 5.6kg

TRIM.004 - basin - 13kg

Gross Weight Including Packaging

SP1033 - pedestal - 6.44kg

TRIM.004 - basin - 14kg

Packed Dimension

SP1033 - 277 x 192 x 270 = 0.0144 m3

TRIM.004 - 630 x 445 x 205 = 0.0575 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14688:2015

BS EN31:2011

Downloads

2D CAD-File - DWG - TRIM.004 SP.1033 (TRIM.004_SP.1033_20230412.dwg)

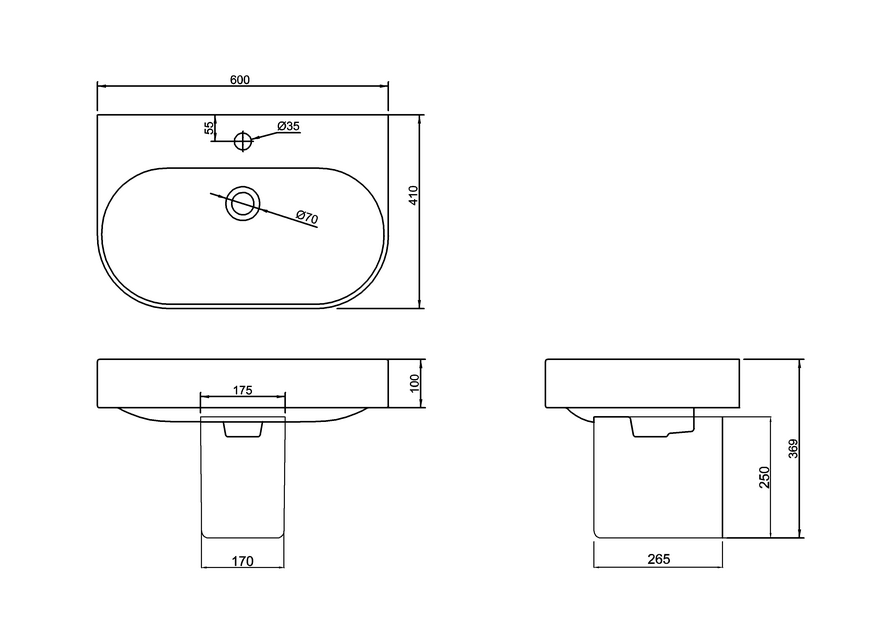

2D Drawing - PDF - TRIM.004 SP.1033 (TRIM.004_SP.1033_20230412.pdf) 2D Drawing - PDF - TRIM.004 SP.1033

3D RFA BIMM Objects - File - RFA - TRIM.004 SP.1033 (116008.rfa)
3D STP - File - STP - TRIM.004 (TRIM.004.stp)
3D STP - File - STP - SP1033 (SP.1033.stp)

Lifestyle image 1 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
