Trim 50 Basin with Pedestal
Product Options
pedestal options
Full Pedestal
|
Semi-Pedestal
|
As Shown
| SP1033 Round semi pedestal |
| TRIM005 TRIM 500 BASIN 1TH |
Nett Weight
| SP1033 - pedestal - 5.6kg |
| TRIM005 - basin - 12.4kg |
Gross Weight Including Packaging
| SP1033 - pedestal - 6.44kg |
| TRIM005 - basin - 13.4kg |
Packed Dimension
| SP1033 - 277 x 192 x 270 = 0.0144 m3 |
| TRIM005 - 435 x 530 x 195 = 0.045 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN31:2011 |
Downloads
-
2D CAD-File - DWG -
TRIM.005 SP.1033
(TRIM.005_SP.1033_20230412.dwg)
-

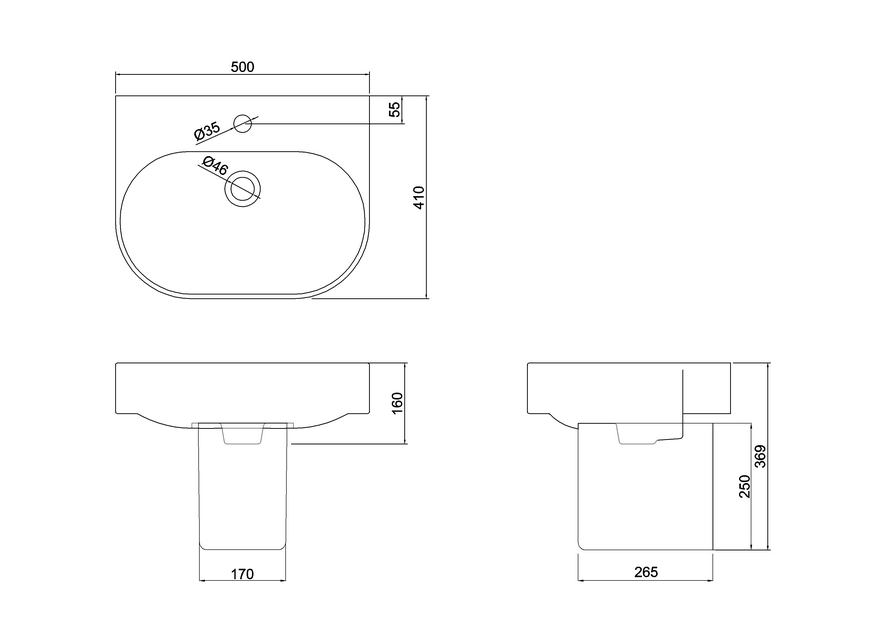

2D Drawing - PDF -
TRIM.005 SP.1033
(TRIM.005_SP.1033_20230412.pdf)
2D Drawing - PDF - TRIM.005 SP.1033
-
3D RFA BIMM Objects - File - RFA
-
TRIM.005 SP.1033
(116010.rfa)
- 3D STP - File - STP - TRIM005 (TRIM.005.stp)
- 3D STP - File - STP - SP1033 (SP.1033.stp)
