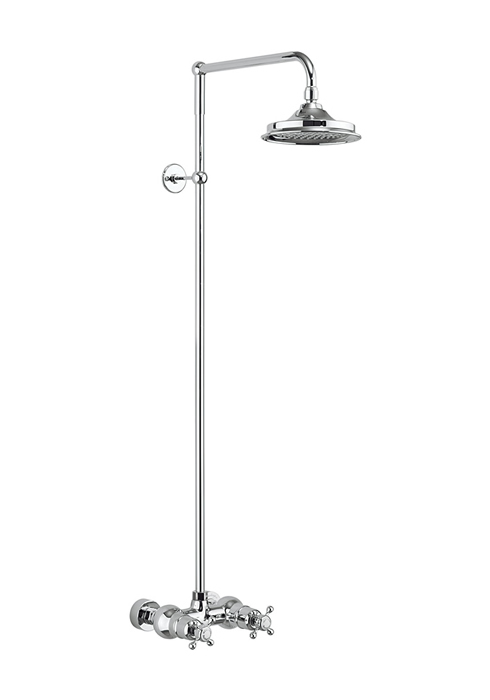

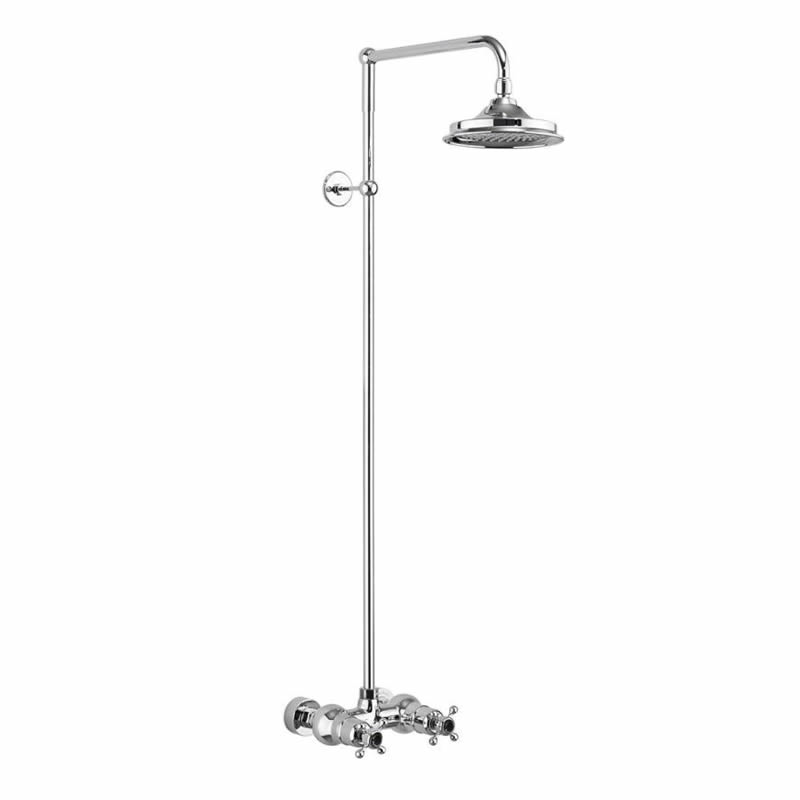

Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Rigid Riser and Swivel Shower Arm
Product Options
shower head options
Indicies & lever finish

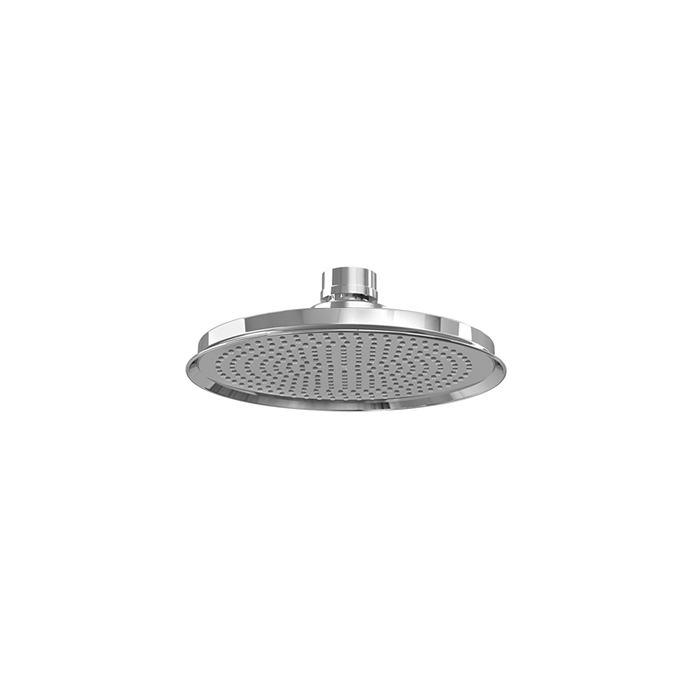

6 inch
|
9 inch
|

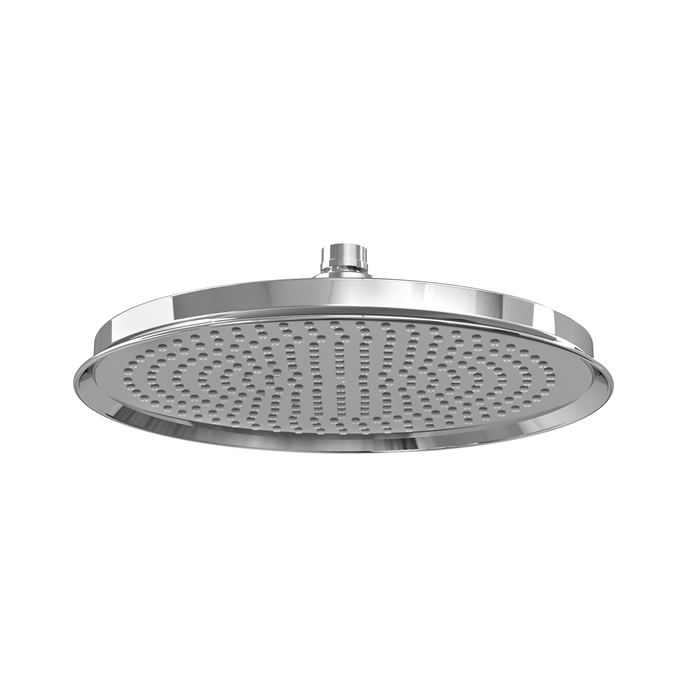

12 inch
|
White
|
Medici
|
Black
|
As Shown
| EF1S Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm |
| V21 Standard vertical riser |
| V60 12 inch shower rose |
| BX12 Black on/off valve indice |
| BX4 Black hot/cold valve indice |
| BEF1S BLA_V60 - Combined product code |
Colour
| EF1S - valve - Polished Chrome |
| V21 - riser - Polished Chrome |
| V60 - shower rose - Polished Chrome |
| BX12 - indice - black |
| BX4 - indice - Gloss Black |
Material
| EF1S - valve - Brass |
| V21 - riser - Brass |
| V60 - shower rose - Brass |
| BX12 - indice - ceramic |
| BX4 - indice - Vitreous China |
Size
| EF1S - 355 x 210 x 937.8mm |
| V21 - 171 x 60 x 842mm |
| V60 - 330 x 330 x 95mm |
| BX12 - 53 x 52 x 53mm |
| BX4 - 53 x 52 x 53mm |
Nett Weight
| EF1S - valve - 4.03kg |
| V21 - riser - 0.86kg |
| V60 - shower rose - 1.67kg |
| BX12 - indice - 0.006kg |
| BX4 - indice - 0.006kg |
Gross Weight Including Packaging
| EF1S - valve - 4.55kg |
| V21 - riser - 1.07kg |
| V60 - shower rose - 2.17kg |
| BX12 - indice - 0.02kg |
| BX4 - indice - 0.02kg |
Packed Dimension
| EF1S - 440 x 240 x 120 = 0.0127 m3 |
| V21 - 860 x 95 x 70 = 0.0057 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
| BX12 - 55 x 54 x 55 = 0.0002 m3 |
| BX4 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Additional Information
|
355mm adjustable swivel shower arm |
|
V22 Extended vertical riser is available if required and can be ordered as an option |
|

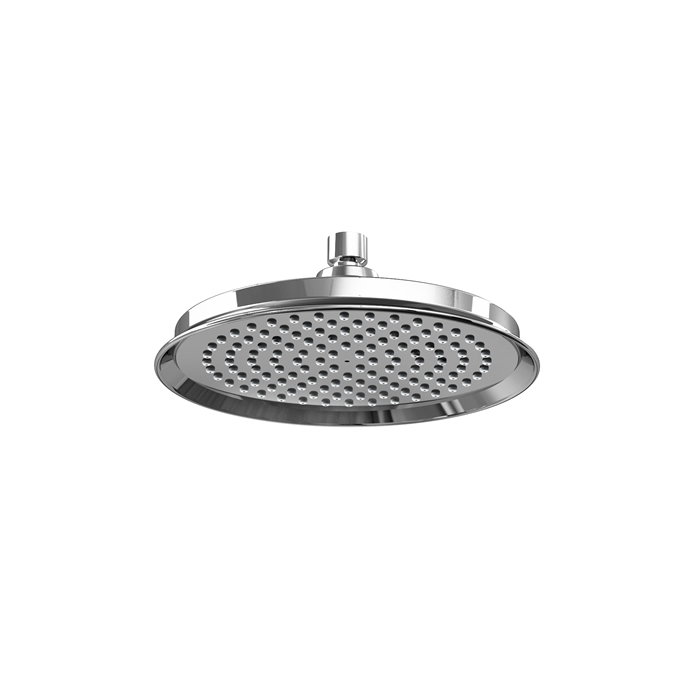

6" AirBurst shower head (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Traditional brass body, Claremont handles, with ceramic indices |
|
18mm diameter vertical brass shower riser |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 3.46 | 4.2 | 7.81 | 11.7 | 14.73 | n/a | n/a |
| 6 inch rose | 3.36 | 4.99 | 7.11 | 10.71 | 12.96 | n/a | n/a |
| 9 inch rose | 3.14 | 4.04 | 6.38 | 9.73 | 12.18 | n/a | n/a |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP376 | adaptor(pair) G1, 2 male thread to 15mm pipe |
| SP1052 | cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP599 | grub screw (M4x4) |
| SP580 | hent F4 flow control cartridge |
| SP868 | inner box of product V21 |
| SP1483 | joint cover for T2WS, EF1S, EF2S, T2WB |
| SP1783 | metal block for EF1S, EF2S, T2WB, T2WS, T2DS |
| SP726 | metal block for Trent, Severn, Eden, Spey shower valves |
| SP1170 | new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body |
| SP1896 | old retaining ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP695 | on, off ceramic indice for EF1S |
| SP1701 | one pair of connectors for EF1S, EF2S, T2WS, T2WB |
| SP1268 | one piece of wall plate for EF1S, EF2S, T2WS, T2WB |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP981 | pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB |
| SP1350 | retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS |
| SP862 | sleeve connector for product EF1S |
| SP601 | small grub screw (M4x4) |
| V11_1 | straight shower arm for vertical riser mounting |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP585 | VQT2 cartridge temperature control cartridge |
| SP188 | wall Bracket for V21and V22(28-125mm) |
| SP1735 | washers (pair) on the back of body of EF2S, EF1S, T2WS, T2DS, T2DB, T2WB |
| SP1778 | white overflow ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
Downloads
- Instructions - PDF - EF1S (English)
- Instructions - PDF - V21 (English)
- Instructions - PDF - V60 (English)
- Instructions - PDF - V21 (French)
- Instructions - PDF - EF1S (French)
-

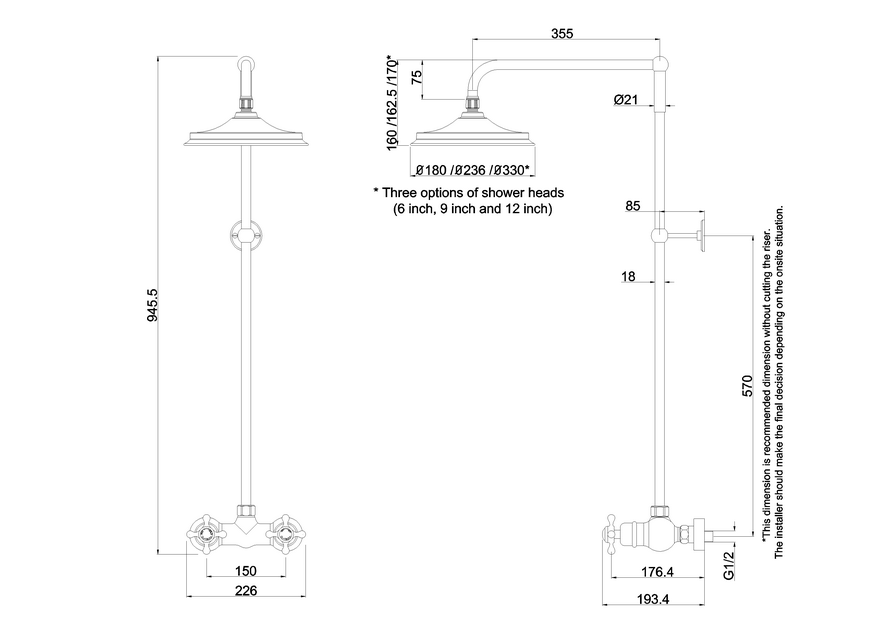

2D CAD-File - DWG -
