Avon Thermostatic dual function brass valve
Product Options
shower head options
Finish Options
Indicies & lever finish
rigid riser option
6 inch
|
9 inch
|
12 inch
|
|
Chrome
|
White
|
Medici
|
Black
|
|
Standard rigid riser
|
Extended rigid riser
|

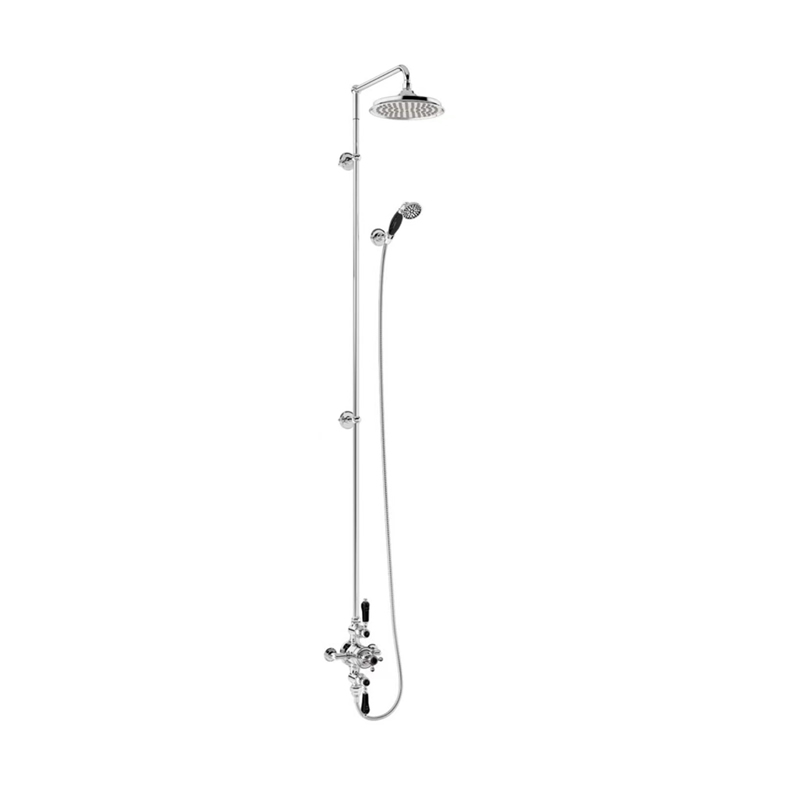

As Shown
| AF3S BLA Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser) - chrome & black |
| V16 6 inch shower rose |
| V21 Standard vertical riser |
| BAF3S BLA_V16 - Combined product code |
Colour
| AF3S BLA - shower kit - Polished Chrome |
| V16 - shower rose - Polished Chrome |
| V21 - riser - Polished Chrome |
Gross Weight Including Packaging
| AF3S BLA - shower kit - 6.7kg |
| V16 - shower rose - 0.58kg |
| V21 - riser - 1.07kg |
Packed Dimension
| AF3S BLA - 435 x 400 x 175 = 0.0305 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
| V21 - 860 x 95 x 70 = 0.0057 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass body, Claremont handle, with ceramic levers |
|
Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle |
|
18mm diameter vertical brass shower riser |
|
355mm adjustable swivel shower arm |
|
Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
V22 Extended vertical riser is available if required and can be ordered as an option |
|
The length of the shower hose is 1.5m |
|
Large bore shower hose (11mm) |
|
Hot & cold inlet ∅15mm |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.23 | 7.62 | 10.27 | 15.7 | 19.1 | n/a | n/a |
| 12 inch rose & handset | 7.27 | 9.85 | 15.01 | 23.71 | 30.14 | n/a | n/a |
| 6 inch rose | 4.05 | 6.39 | 8.27 | 11.55 | 14.46 | n/a | n/a |
| 6 inch rose & handset | 7.08 | 9.17 | 14.58 | 22.5 | 28.11 | n/a | n/a |
| 9 inch rose | 3.64 | 4.15 | 7 | 10.46 | 13.04 | n/a | n/a |
| 9 inch rose & handset | 6.86 | 8.34 | 14.18 | 21.93 | 26.5 | n/a | n/a |
| Handset | 3.13 | 5.92 | 8.06 | 11.55 | 14.6 | n/a | n/a |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| V26 | burlington Shower hose 1500mm |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP1248 | gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S |
| SP868 | inner box of product V21 |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP1310 | plastic block for all finishes products of AF1S, ARC74, V25, AF3S |
| SP1385 | retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP188 | wall Bracket for V21and V22(28-125mm) |
| SP1293 | washer for all finishes products of ARC74, AF3S |
Downloads
- Instructions - PDF - AF3S BLA (English)
- Instructions - PDF - V16 (English)
- Instructions - PDF - V21 (English)
- Instructions - PDF - V21 (French)
- Instructions - PDF - AF3S BLA (French)
-
2D CAD-File - DWG -
BAF3S BLA_V16
(BAF3S-V16 17 60_LD.dwg)
-
2D Drawing - PDF -
BAF3S BLA_V16
(BAF3S-V16 17 60_LD.pdf)
2D Drawing - PDF - BAF3S BLA_V16
-
3D RFA BIMM Objects - File - RFA
-
BAF3S BLA_V16
(af3s-V16_V21.rfa)
-
3D IGS - File - IGS
-
BAF3S BLA_V16
(af3s.igs)
- 3D DWG - File - DWG - V16 (V16_6_showerhead.DWG)
- 3D DXF - File - DXF - V16 (V16_6_showerhead.dxf)
- 3D IGS - File - IGS - V16 (V16_6_showerhead.igs)
- 3D STP - File - STP - V16 (V16_shower_head.stp)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V16 (V16_6_showerhead.rfa)
- 3D DWG - File - DWG - V21 (V21.dwg)
- 3D DXF - File - DXF - V21 (V21.dxf)
- 3D IGS - File - IGS - V21 (V21.igs)
- 3D DWG - File - DWG - AF3S BLA (af3s.dwg)
- 3D DXF - File - DXF - AF3S BLA (af3s.dxf)
