Trent Thermostatic single function brass valve
Product Options
shower head options
Finish Options
Indicies & lever finish
6 inch
|
9 inch
|
12 inch
|
|
Chrome
|
White
|
Medici
|
Black
|
As Shown
| TF1S BLA Trent Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm (excluding Shower Head) - chrome & black |
| V60 12 inch shower rose |
| TF1S_V60_BLA - Combined product code |
Nett Weight
| TF1S BLA - valve - 3.35kg |
| V60 - shower rose - 1.67kg |
Gross Weight Including Packaging
| TF1S BLA - valve - 3.9kg |
| V60 - shower rose - 2.17kg |
Packed Dimension
| TF1S BLA - 645 x 215 x 135 = 0.0187 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass faceplate, Claremont handle with ceramic lever. |
|
390mm adjustable fixed shower arm |
|

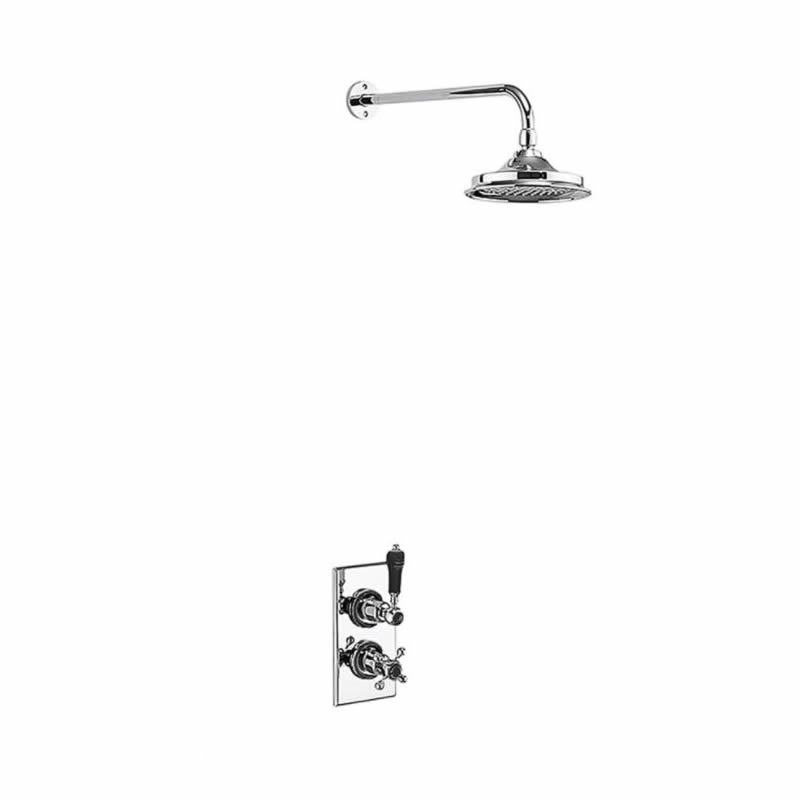

Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 3.52 | 4.73 | 7 | 9.86 | 12.68 | n/a | n/a |
| 6 inch rose | 3.84 | 4.94 | 7.95 | 11.29 | 13.21 | n/a | n/a |
| 9 inch rose | 4.11 | 5.15 | 8.11 | 11.44 | 14.36 | n/a | n/a |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP1499 | new Cartridge cap & grub screw for ON-OFF cartridge fo product TF1H, TF1H BLA, TF1S, TF1S BLA, TF3S, TF3S BLA, VF1S, VF3S - Chrome finish |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1479 | retaining sleeve for TF1S, V52, TF3S, VF3S, TF3S BLA, SF3S, V50, VF1S, TF1H, TF1S BLA, TF1H BLA, SF1S |
Downloads
-
2D CAD-File - DWG -
TF1S_V60_BLA
(TF1S-V16_LD.dwg)
-
2D Drawing - PDF -
TF1S_V60_BLA
(TF1S-V16_LD.pdf)
2D Drawing - PDF - TF1S_V60_BLA
-
3D RFA BIMM Objects - File - RFA
-
TF1S_V60_BLA
(TF1S-V16.rfa)
- 3D DWG - File - DWG - TF1S BLA (TF1S.dwg)
- 3D DXF - File - DXF - TF1S BLA (TF1S.dxf)
- 3D IGS - File - IGS - TF1S BLA (TF1S.igs)
- 3D DWG - File - DWG - V60 (V60_12_showerhead.dwg)
- 3D DXF - File - DXF - V60 (V60_12_showerhead.dxf)
- 3D IGS - File - IGS - V60 (V60_12_showerhead.igs)
