Hoxton shower set with outlet elbow chrome
Product Options
finish options
Chrome
|
Matt Black
|
Brushed brass
|
As Shown
| HOX.053BB Hoxton shower set with outlet elbow Brushed Brass |
Material
| HOX.053BB - shower kit - Brass |
Nett Weight
| HOX.053BB - shower kit - 0.87kg |
Gross Weight Including Packaging
| HOX.053BB - shower kit - 1.04kg |
Packed Dimension
| HOX.053BB - 730 x 150 x 85 = 0.0093 m3 |
Guarantee
Standards Information
|
BS EN248:2002 |
Additional Information
|
Spray Modes: Three mode |
|
Hose Length: 1500mm |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Handset | 3.25 | 4 | 5.93 | 8.2 | 9.96 | n/a | 12.5 |
| SP1691BB | brushed brass finish elbow for HOX.053BB |
| SP1568 | brushed brass finish shower handset (3 modes) for HOX.053BB |
| SP1442 | brushed brass finish shower hose-1500mm length |
Downloads
-
2D CAD-File - DWG -
HOX.053BB
(HOX.053.dwg)
-
2D Drawing - PDF -
HOX.053BB
(HOX.053.pdf)
2D Drawing - PDF - HOX.053BB
-
3D IGS - File - IGS
-
HOX.053BB
(HOX.053.igs)
-
3D RFA BIMM Objects - File - RFA
-
HOX.053BB
(HOX.053.rfa)
- 3D IGS - File - IGS - HOX.053BB (HOX.053.igs)
-

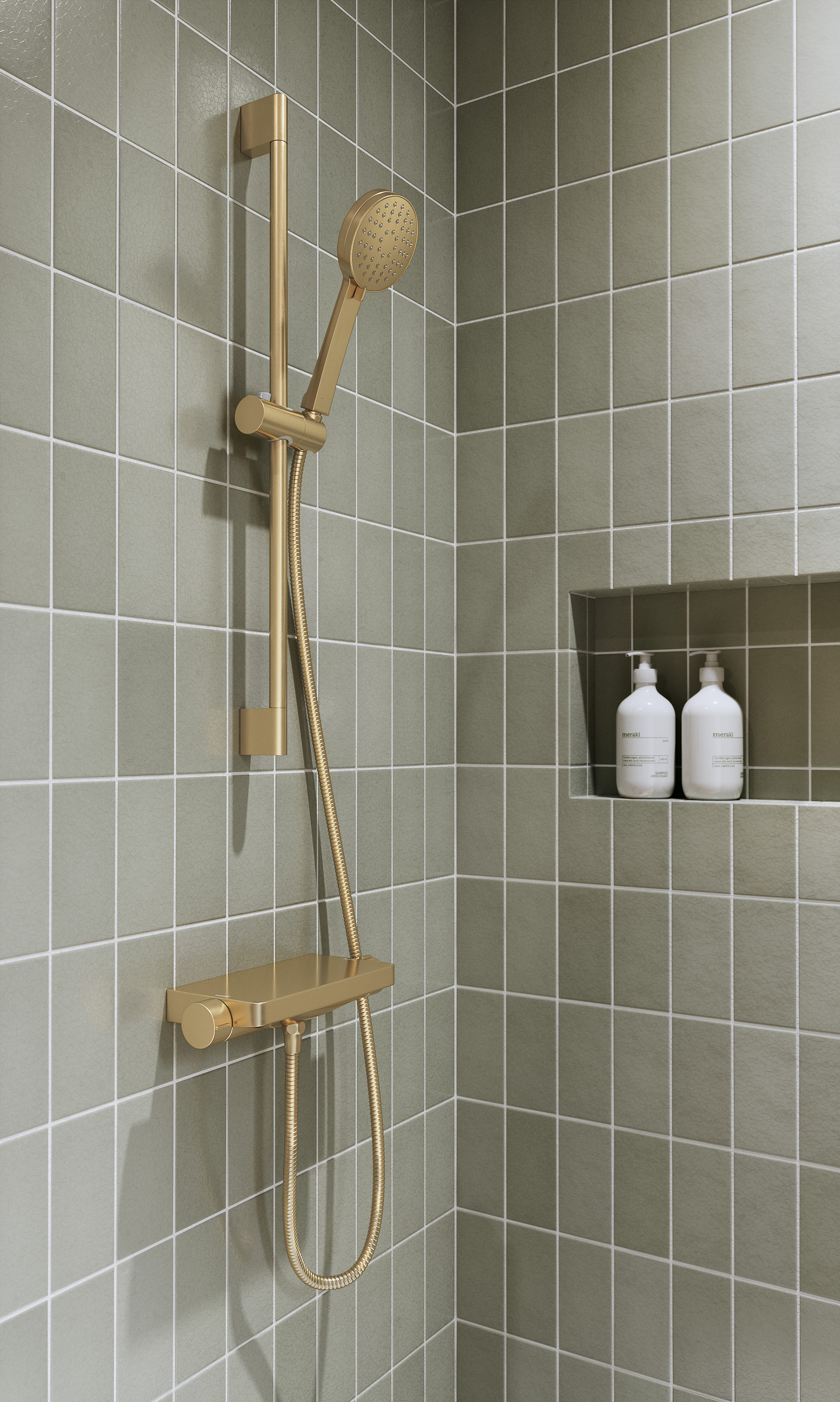

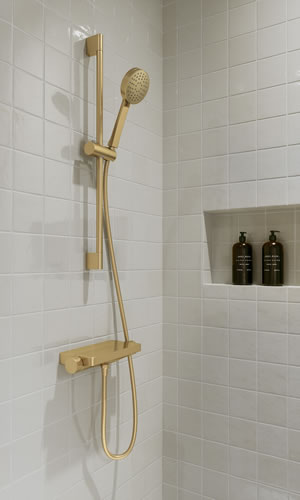

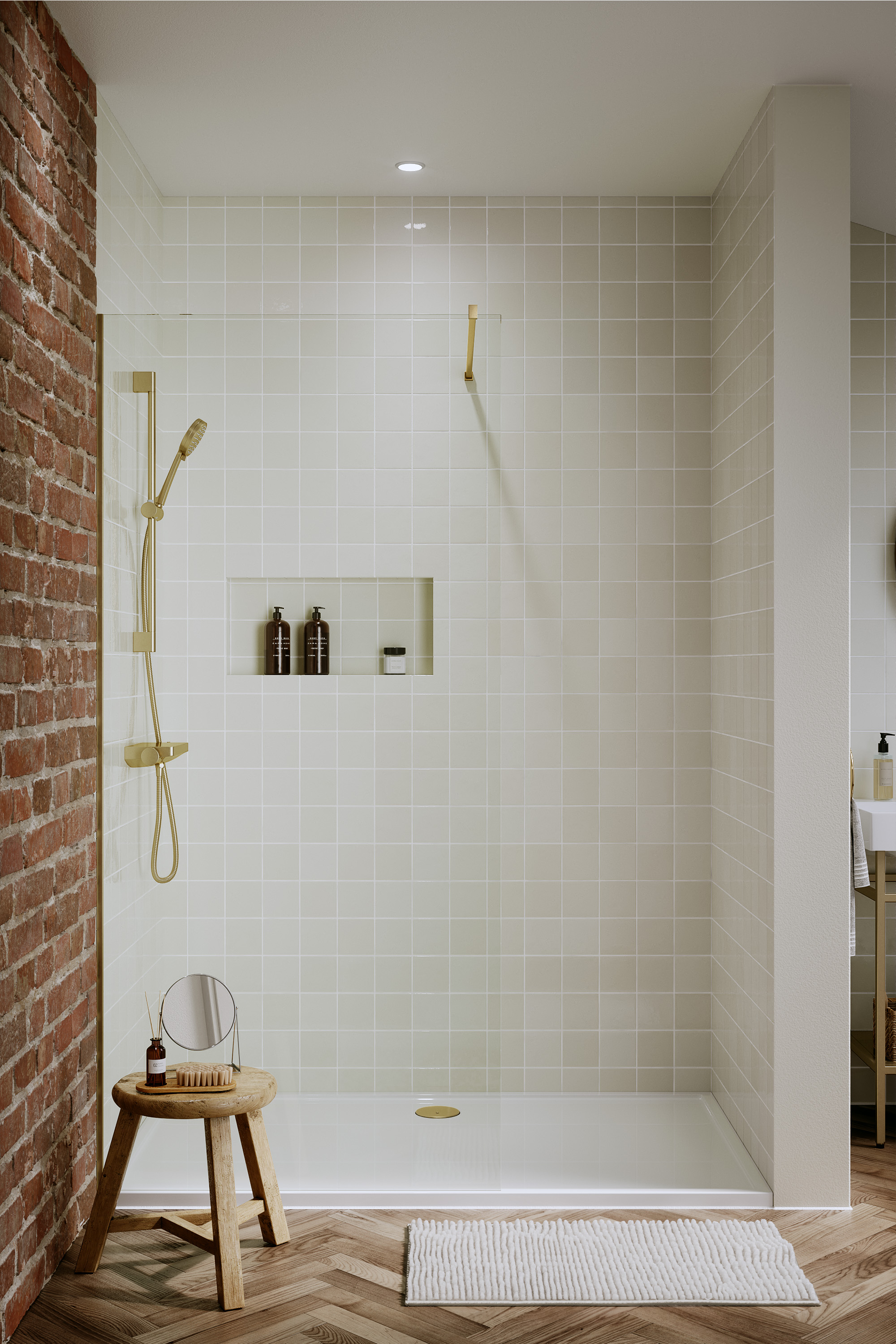

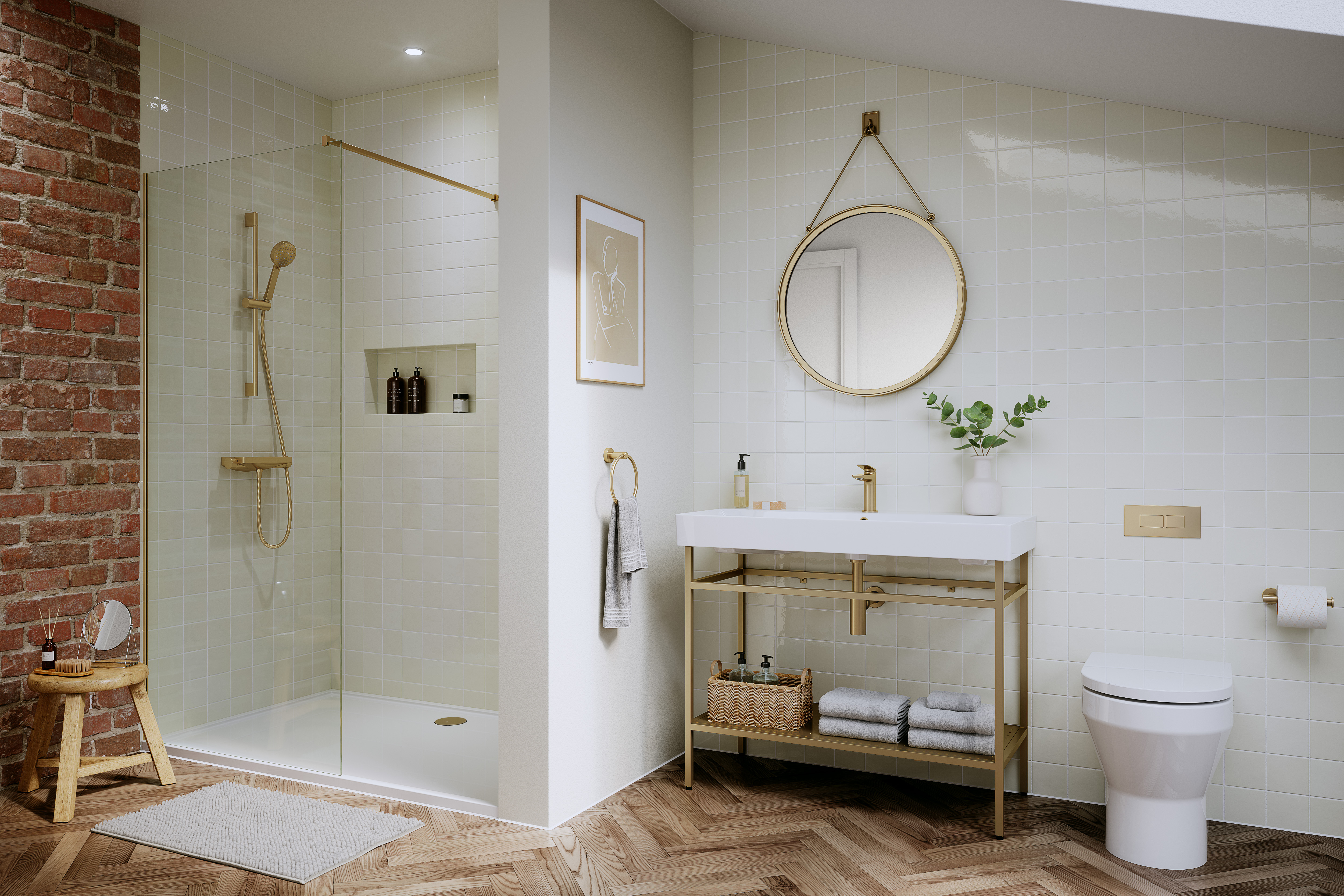

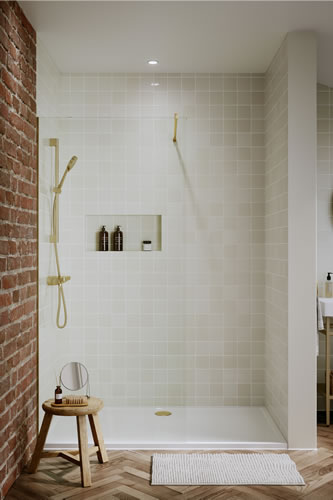

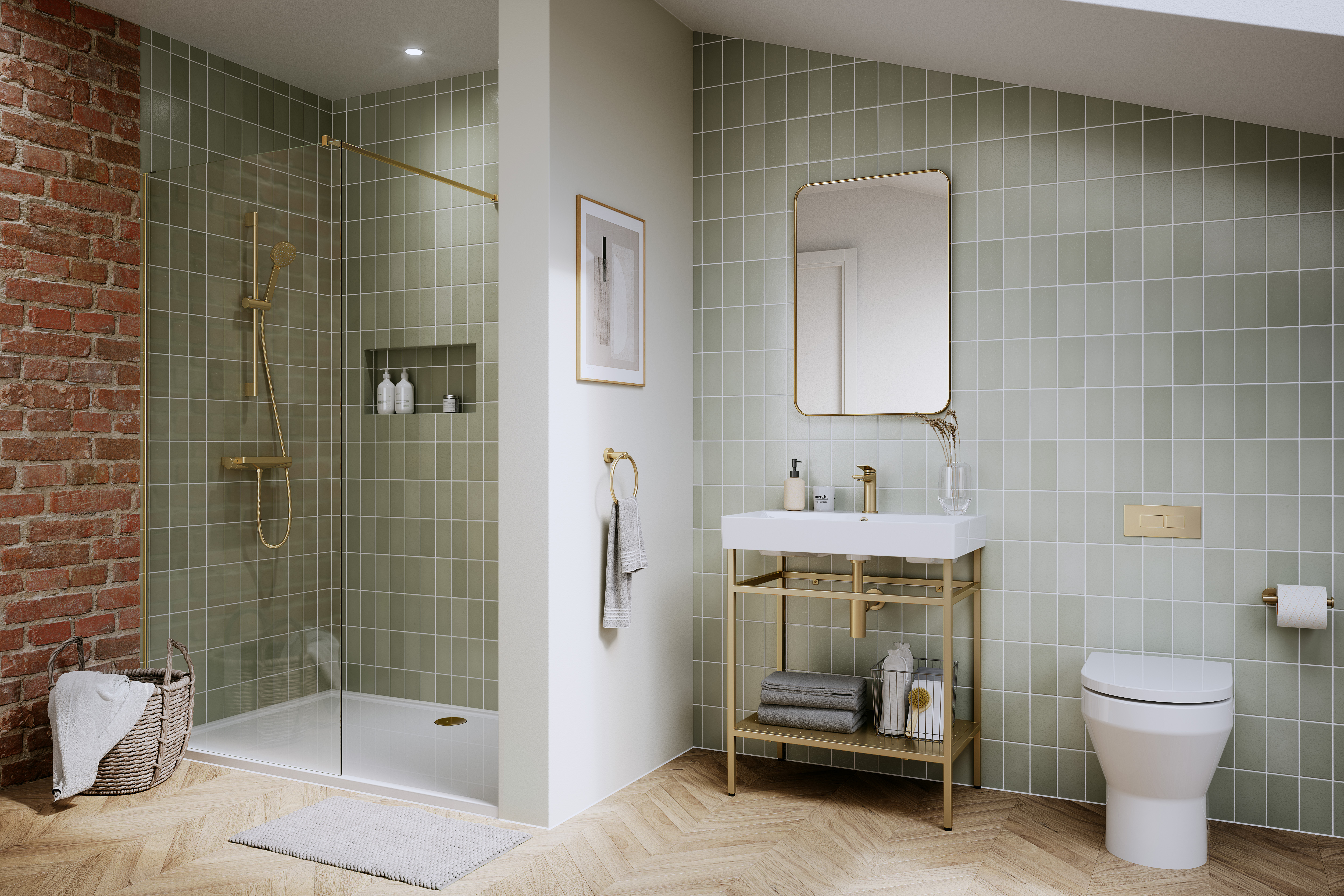

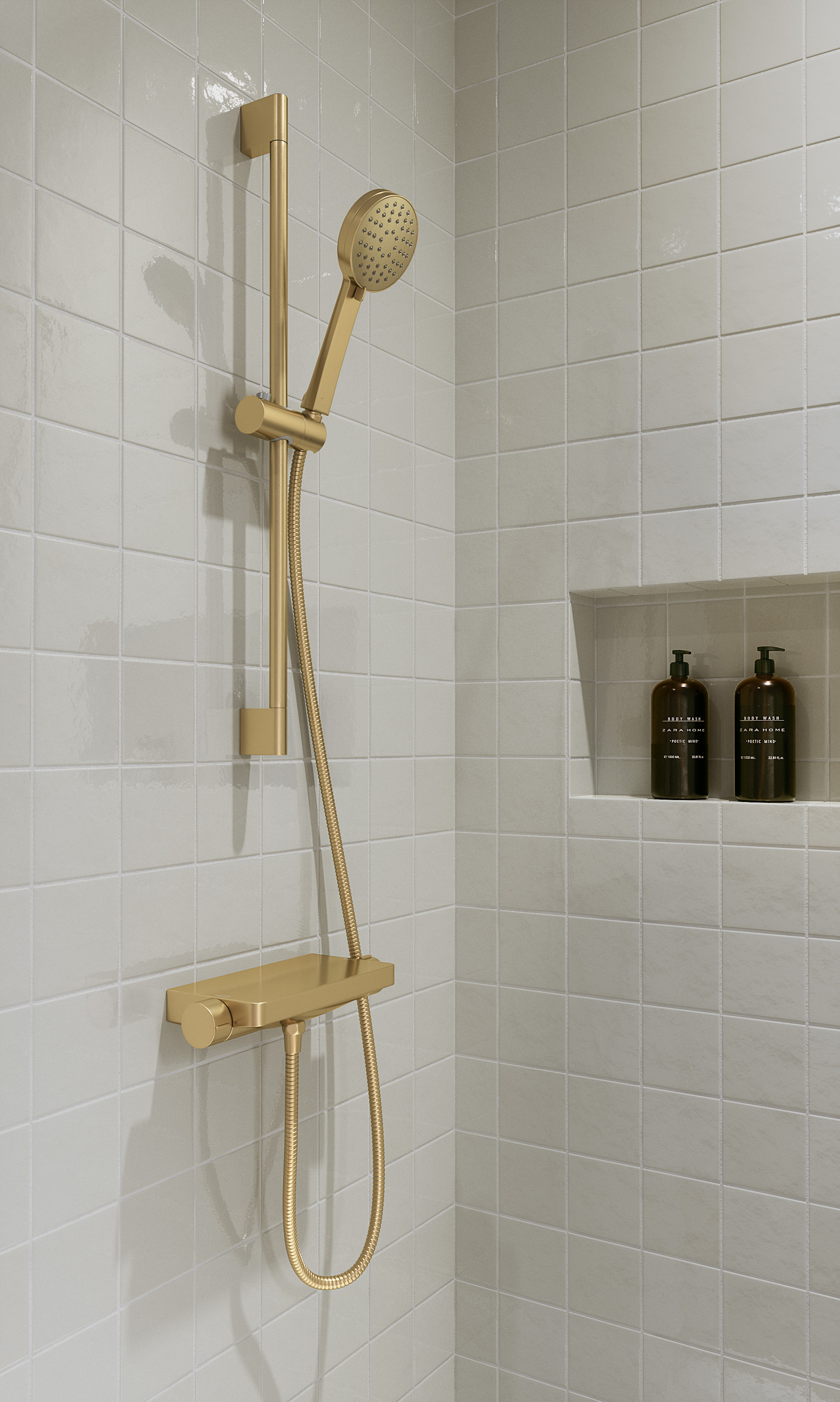

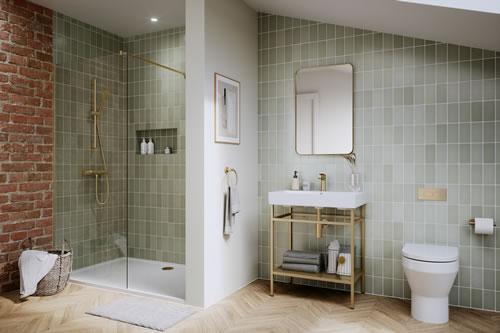

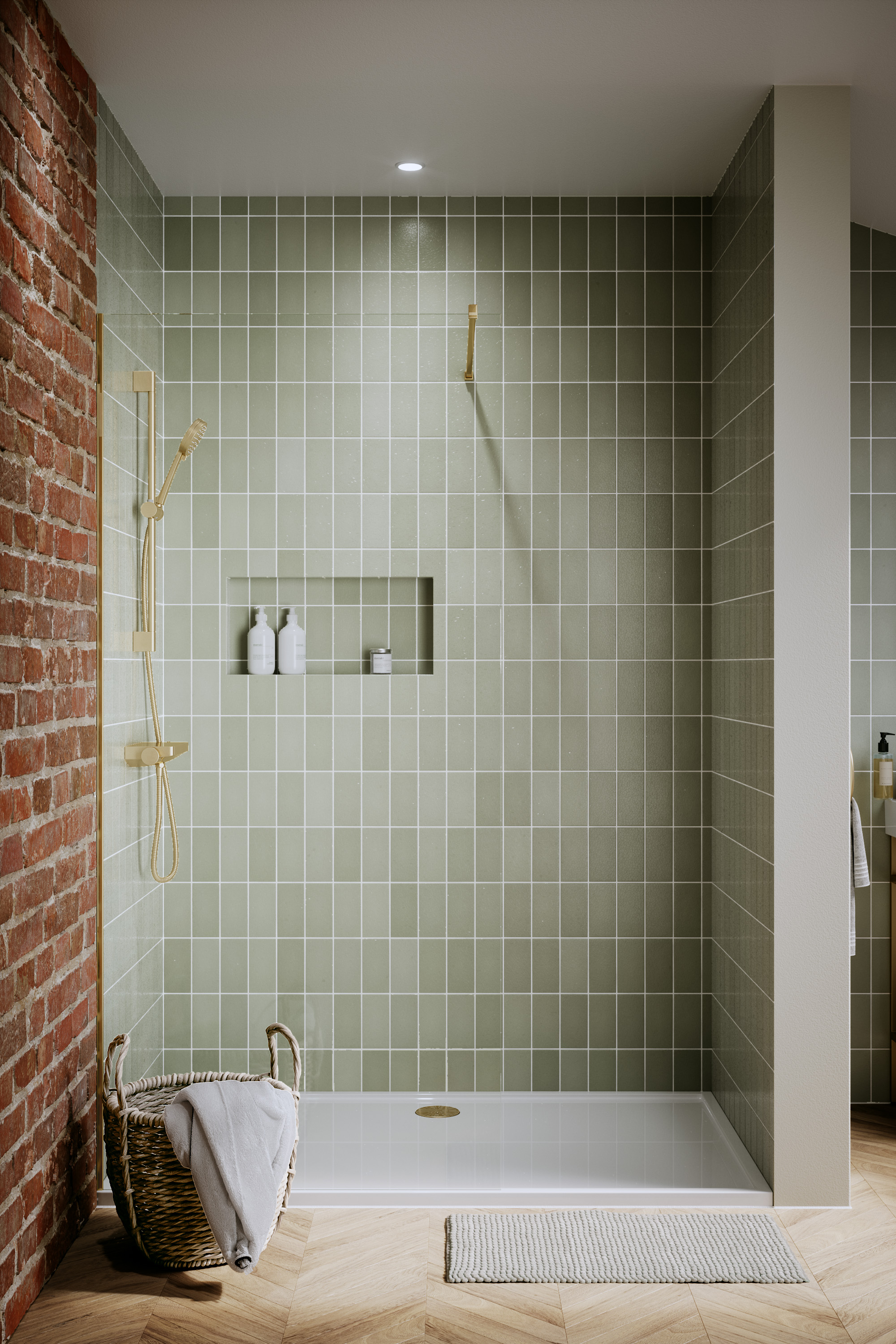

Lifestyle image 1 -
tiff
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
tiff
jpg -
Lifestyle image 5 -
tiff
jpg -
Lifestyle image 6 -
tiff
jpg -
Product image 1 -
jpg
