Greenwich tall basin mixer chrome
Product Options
finish options
|
Chrome
|

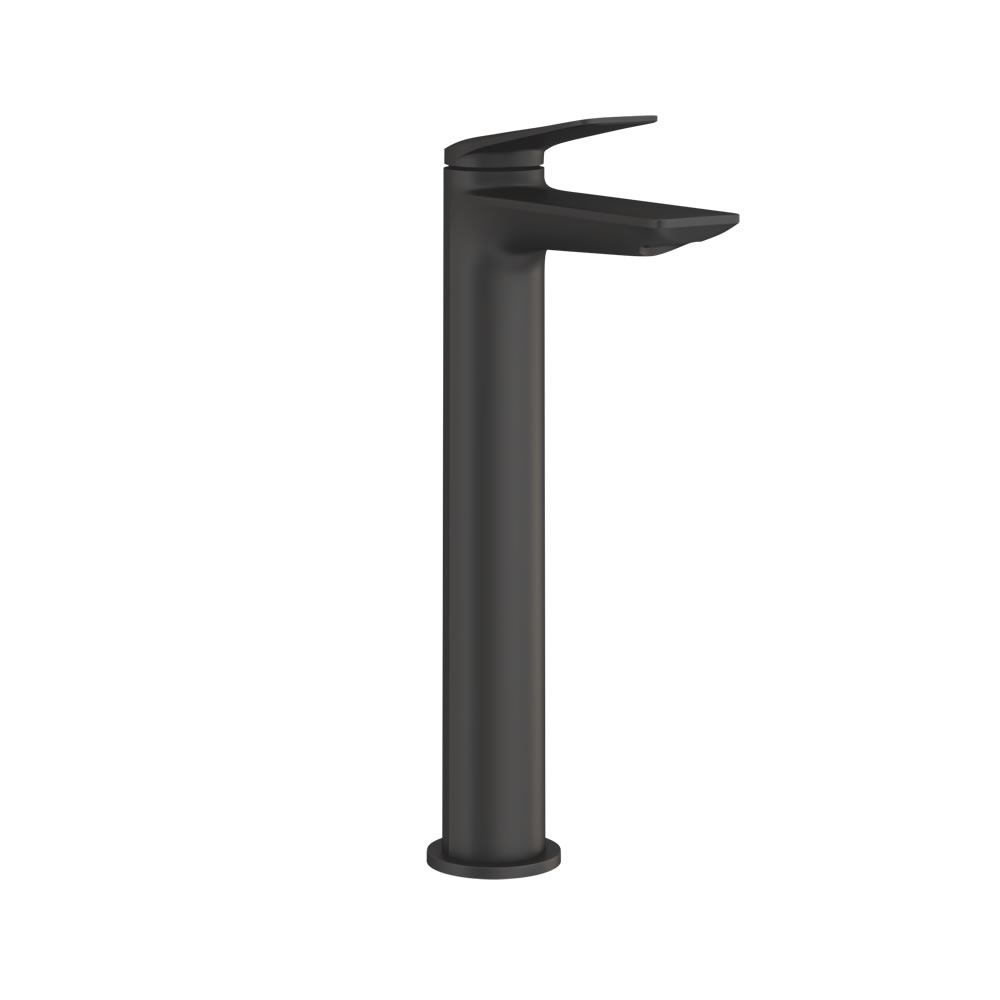

Matt Black
|

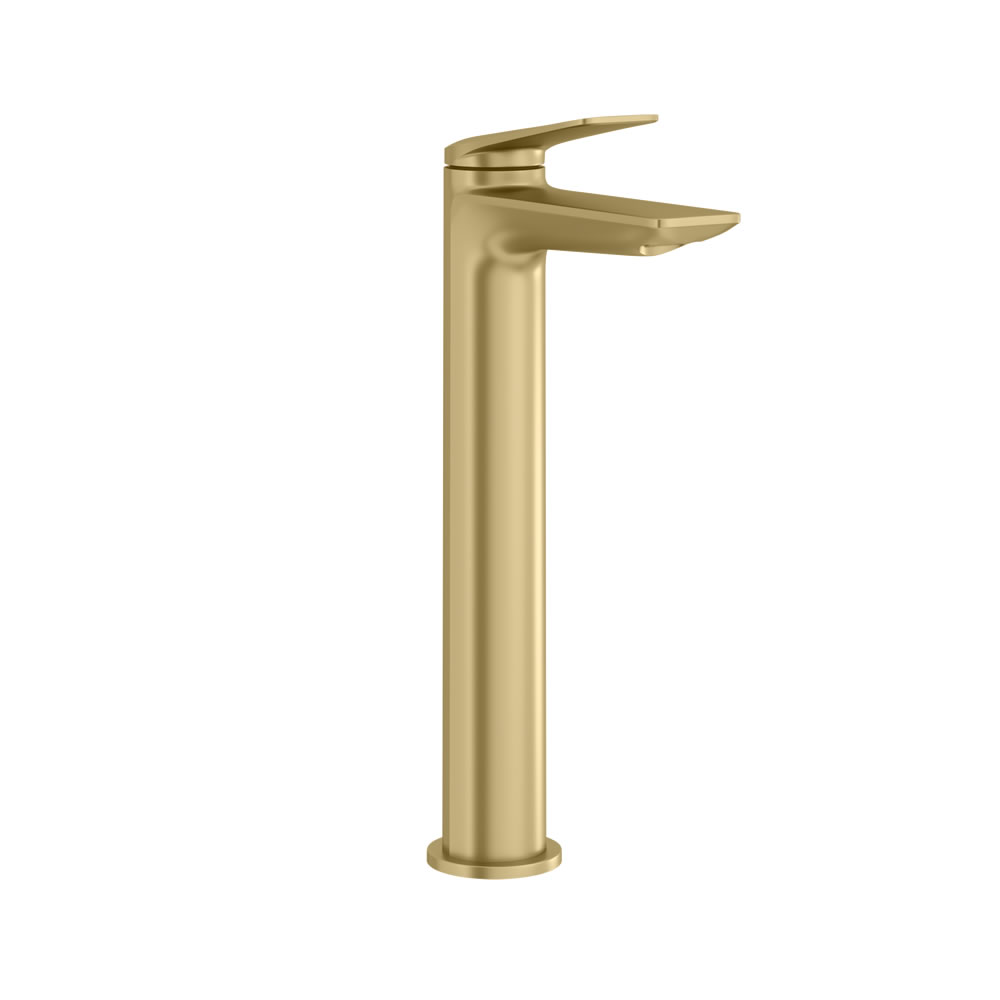

Brushed brass
|
As Shown
| GRE112CP Greenwich Tall Basin Mixer Chrome |
Material
| GRE112CP - tap - Brass |
Nett Weight
| GRE112CP - tap - 1.24kg |
Gross Weight Including Packaging
| GRE112CP - tap - 1.47kg |
Packed Dimension
| GRE112CP - 380 x 200 x 70 = 0.0053 m3 |
Guarantee
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with aerator for use with high water pressure. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 2.7 | 4.68 | 6.5 | 9.3 | 12 | n/a | 14.6 |
| SP1572 | aerator for GRE.110, GRE.112, GRE.113 - all finishes |
| SP1580 | chrome finish cartridge cover for GRE.110CP, GRE.112CP |
| SP1574 | chrome finish handle for GRE.110, GRE.112 |
| SP1398 | flexible hoses(pair) for GRE.112, HOX.001, HOX.002 - all finishes |
| SP1569 | on, off cartridge for GRE.110, GRE.112 - all finishes |
| SP1583 | retaining nut for GRE.110, GRE.112 - all finishes |
Downloads
-
2D CAD-File - DWG -
GRE.112CP
(GRE.112.dwg)
-

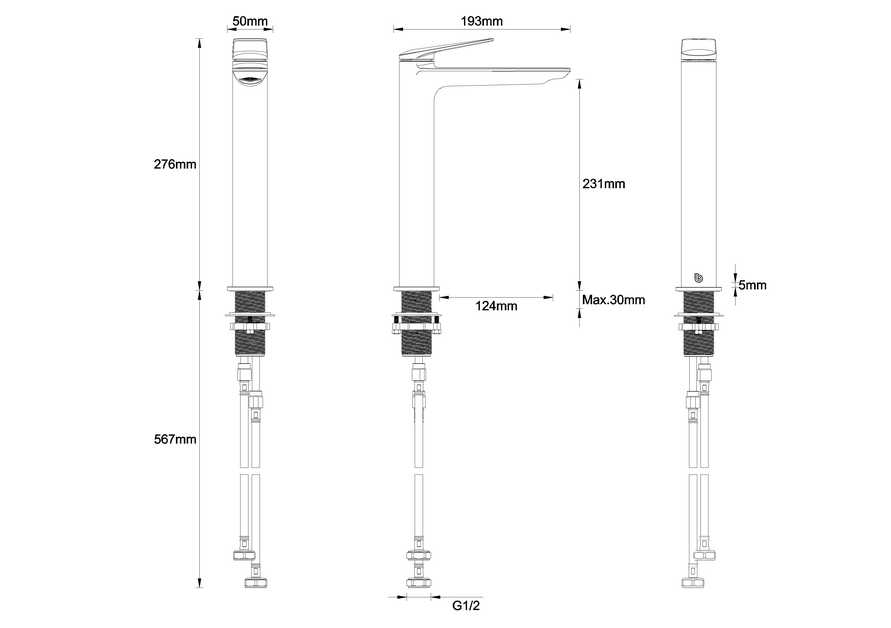

2D Drawing - PDF -
GRE.112CP
(GRE.112.pdf)
2D Drawing - PDF - GRE.112CP
-
3D IGS - File - IGS
-
GRE.112CP
(GRE112.igs)
-
3D RFA BIMM Objects - File - RFA
-
GRE.112CP
(GRE.112.rfa)
