Riviera 58cm Square Basin
Product Options
tap hole options
pedestal options
|
no tap holes
|
1 tap hole
|
2 tap holes
|
|
full pedestal
|
semi pedestal
|
As Shown
| RIV1_NTH Riviera 58cm Square Basin NTH White |
| RIV7 Riviera Semi Pedestal White |
Nett Weight
| RIV1_NTH - basin - 15.5kg |
| RIV7 - pedestal - 9kg |
Gross Weight Including Packaging
| RIV1_NTH - basin - 17.1kg |
| RIV7 - pedestal - 10.1kg |
Packed Dimension
| RIV1_NTH - 500 x 605 x 200 = 0.0605 m3 |
| RIV7 - 180 x 360 x 300 = 0.0194 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
Downloads
-
2D CAD-File - DWG -
RIV1 NTH RIV7
(RIV1 NTH_RIV7.dwg)
-

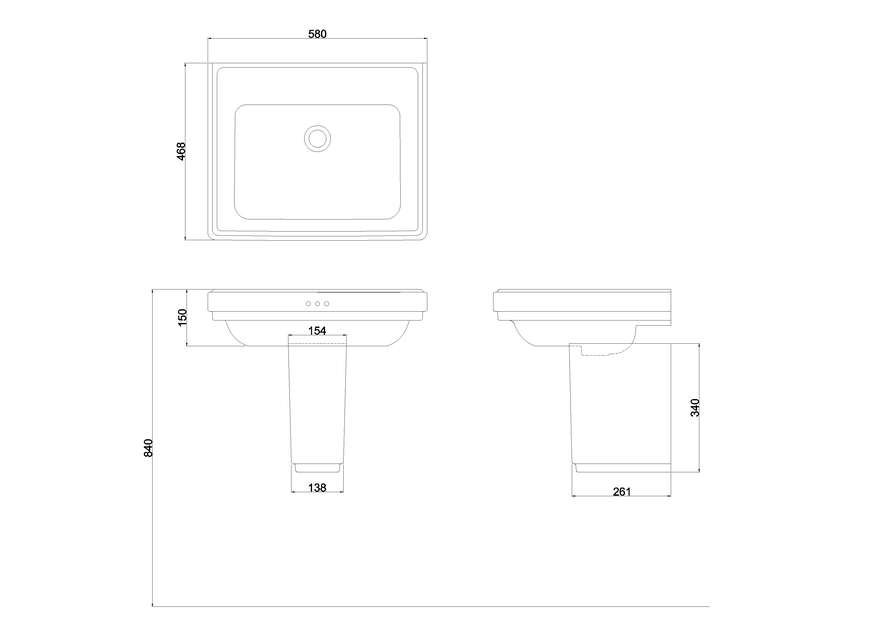

2D Drawing - PDF -
RIV1 NTH RIV7
(RIV1 NTH_RIV7.pdf)
2D Drawing - PDF - RIV1 NTH RIV7
