Riviera Shower valve with fixed shower head
Product Options
Finish Options
shower head options
Chrome
|
Gold
|
9 inch
|
As Shown
| HOX.006V Concealed Valve without Diverter |
| RIV2 GOLD Riviera 1000 shower plate and handles Gold |
| V17 GOLD 9'' ABS Air-system round rain shower GOLD |
| V11 GOLD Straight shower arm -GOLD |
| R1S GOLD+V17 GOLD - Combined product code |
Colour
| HOX.006V - valve - No Finish |
| RIV2 GOLD - tap - Polished Gold |
| V17 GOLD - shower rose - Polished Gold |
| V11 GOLD - shower arm - Polished Gold |
Material
| HOX.006V - valve - Brass |
| RIV2 GOLD - tap - Brass |
| V17 GOLD - shower rose - ABS |
| V11 GOLD - shower arm - Brass |
Size
| HOX.006V - 107 x 124 x 151.5mm |
| RIV2 GOLD - 127 x 120 x 215mm |
| V17 GOLD - 236 x 236 x 87mm |
| V11 GOLD - 416 x 60 x 96mm |
Nett Weight
| HOX.006V - valve - 1.1kg |
| RIV2 GOLD - tap - 3.28kg |
| V17 GOLD - shower rose - 0.56kg |
| V11 GOLD - shower arm - 0.304kg |
Gross Weight Including Packaging
| HOX.006V - valve - 1.2kg |
| RIV2 GOLD - tap - 3.7kg |
| V17 GOLD - shower rose - 0.82kg |
| V11 GOLD - shower arm - 0.39kg |
Packed Dimension
| HOX.006V - 155 x 115 x 140 = 0.0025 m3 |
| RIV2 GOLD - 235 x 285 x 72 = 0.0048 m3 |
| V17 GOLD - 260 x 240 x 100 = 0.0062 m3 |
| V11 GOLD - 85 x 65 x 450 = 0.0025 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Additional Information
|
390mm adjustable fixed shower arm. |
|
Image shown is with 9" Airburst shower head. (as shown on image). |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 9 inch rose | 4.11 | 5.15 | 8.11 | 11.44 | 14.36 | n/a | n/a |
| SP315 | hent F2 flow control cartridge |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - HOX.006V (English)
- Instructions - PDF - RIV2 GOLD (English)
- Instructions - PDF - V17 GOLD (English)
- Instructions - PDF - V11 GOLD (English)
- Instructions - PDF - V11 GOLD (French)
- Instructions - PDF - RIV2 GOLD (French)
- Instructions - PDF - HOX.006V (French)
- Instructions - PDF - V17 GOLD (French)
-
2D CAD-File - DWG -
R1S GOLD+V17 GOLD
(R1S_DD.dwg)
-

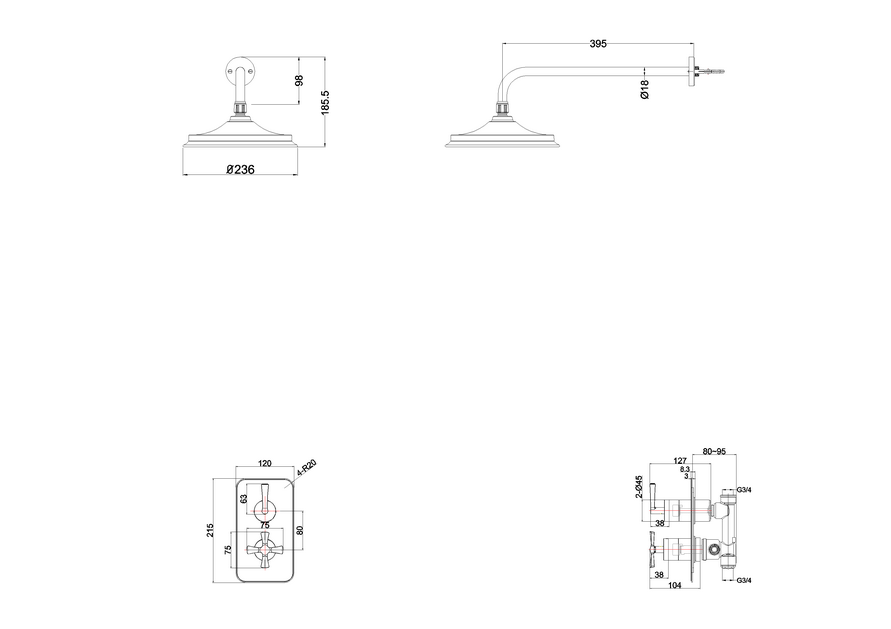

2D Drawing - PDF -
R1S GOLD+V17 GOLD
(R1S_DD.pdf)
2D Drawing - PDF - R1SGOLD
-
3D RFA BIMM Objects - File - RFA
-
R1S GOLD+V17 GOLD
(R1SCHR.rfa)
- 3D IGS - File - IGS - HOX.006V (HOX.006.igs)
- 3D DWG - File - DWG - V17 GOLD (V17_9_showerhead.dwg)
- 3D DXF - File - DXF - V17 GOLD (V17_9_showerhead.dxf)
- 3D IGS - File - IGS - V17 GOLD (V17_9_showerhead.igs)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V17 GOLD (V17_9_showerhead.rfa)
- 3D IGS - File - IGS - RIV2 GOLD (RIV2.igs)
- 3D IGS - File - IGS - V11 GOLD (V11.igs)
-
