Riviera Shower valve shower hose
Product Options
Finish Options
shower head options
Chrome
|
Gold
|
9 inch
|
As Shown
| HOX005V Concealed Valve with Diverter |
| RIV3GOLD Riviera 1500 shower plate and handles Gold |
| V17GOLD 9'' ABS Air-system round rain shower GOLD |
| V11GOLD Straight shower arm -GOLD |
| RIV20GOLD Riviera handset & hose & elbow Gold |
| R2S GOLD+V17 GOLD - Combined product code |
Colour
| HOX005V - valve - No Finish |
| RIV3GOLD - tap - Polished Gold |
| V17GOLD - shower rose - Polished Gold |
| V11GOLD - shower arm - Polished Gold |
| RIV20GOLD - fittings - Polished Gold |
Material
| HOX005V - valve - Brass |
| RIV3GOLD - tap - Brass |
| V17GOLD - shower rose - ABS |
| V11GOLD - shower arm - Brass |
| RIV20GOLD - fittings - Brass |
Size
| HOX005V - 107 x 124 x 143.3mm |
| RIV3GOLD - 106 x 120 x 215mm |
| V17GOLD - 236 x 236 x 87mm |
| V11GOLD - 416 x 60 x 96mm |
| RIV20GOLD - 305 x 230 x 110mm |
Nett Weight
| HOX005V - valve - 1.41kg |
| RIV3GOLD - tap - 1.3kg |
| V17GOLD - shower rose - 0.56kg |
| V11GOLD - shower arm - 0.304kg |
| RIV20GOLD - fittings - 1.265kg |
Gross Weight Including Packaging
| HOX005V - valve - 1.5kg |
| RIV3GOLD - tap - 1.6kg |
| V17GOLD - shower rose - 0.82kg |
| V11GOLD - shower arm - 0.39kg |
| RIV20GOLD - fittings - 1.62kg |
Packed Dimension
| HOX005V - 155 x 115 x 140 = 0.0025 m3 |
| RIV3GOLD - 235 x 285 x 72 = 0.0048 m3 |
| V17GOLD - 260 x 240 x 100 = 0.0062 m3 |
| V11GOLD - 85 x 65 x 450 = 0.0025 m3 |
| RIV20GOLD - 365 x 285 x 85 = 0.0088 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Additional Information
|
Adjustable wall bracket. |
|
390mm adjustable fixed shower arm. |
|
Image shown is with 9" Airburst shower head. |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet 3/4 female thread |
|
Wall outlet, and 1750mm shower hose. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Handset | n/a | 8.55 | 9.57 | 11.51 | 13.25 | 15.04 | 16.36 |
| 9 inch rose | 3.74 | 4.17 | 5.27 | 8.15 | 11.32 | n/a | n/a |
| SP1669 | 1750mm shower hose in Gold finish for RIV20 GOLD |
| SP1496 | arcade handset without logo Gold |
| SP1676 | diverter retaining nut for all finishes products of HOX.005V, TF2S |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| SP584 | mingshi F4 flow control cartridge |
| SP1667 | outlet elbow 1, 2 in Gold finish for RIV20 GOLD |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1668 | shower hook (for wall mounting of telephone shower head) in Gold finish for RIV20 GOLD, AF3S GOLD, TF2S GOLD |
| SP1676_1 | updated Diverter retaining nut for all finishes products of TF2S, HOX005V, GUSHOWERPACKSQ3, GUSHOWERPACKSQ4, HOX1500R |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - HOX005V (English)
- Instructions - PDF - RIV3GOLD (English)
- Instructions - PDF - V17GOLD (English)
- Instructions - PDF - V11GOLD (English)
- Instructions - PDF - RIV20GOLD (English)
- Instructions - PDF - V11GOLD (French)
- Instructions - PDF - RIV3GOLD (French)
- Instructions - PDF - HOX005V (French)
- Instructions - PDF - RIV20GOLD (French)
- Instructions - PDF - V17GOLD (French)
-
2D CAD-File - DWG -

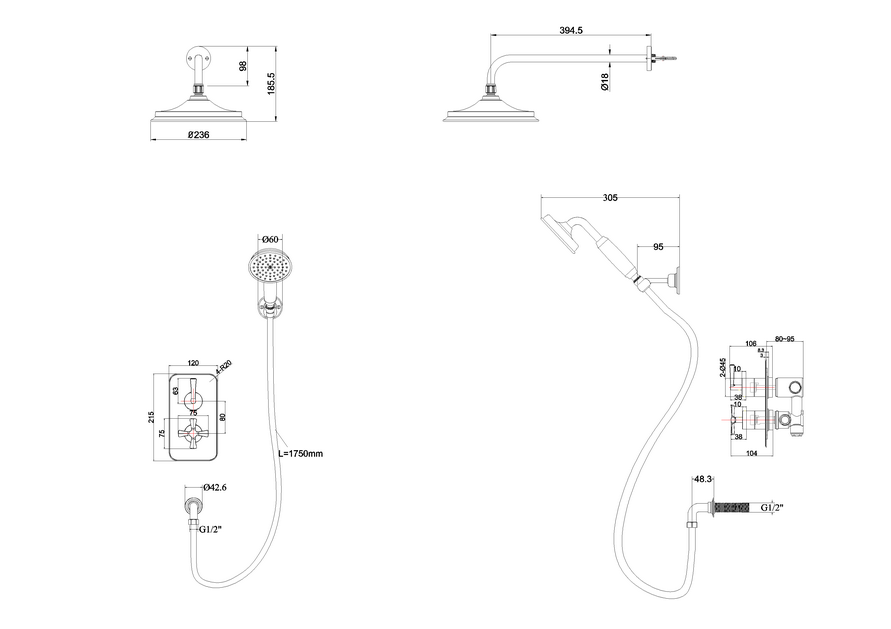

R2S GOLD+V17 GOLD
