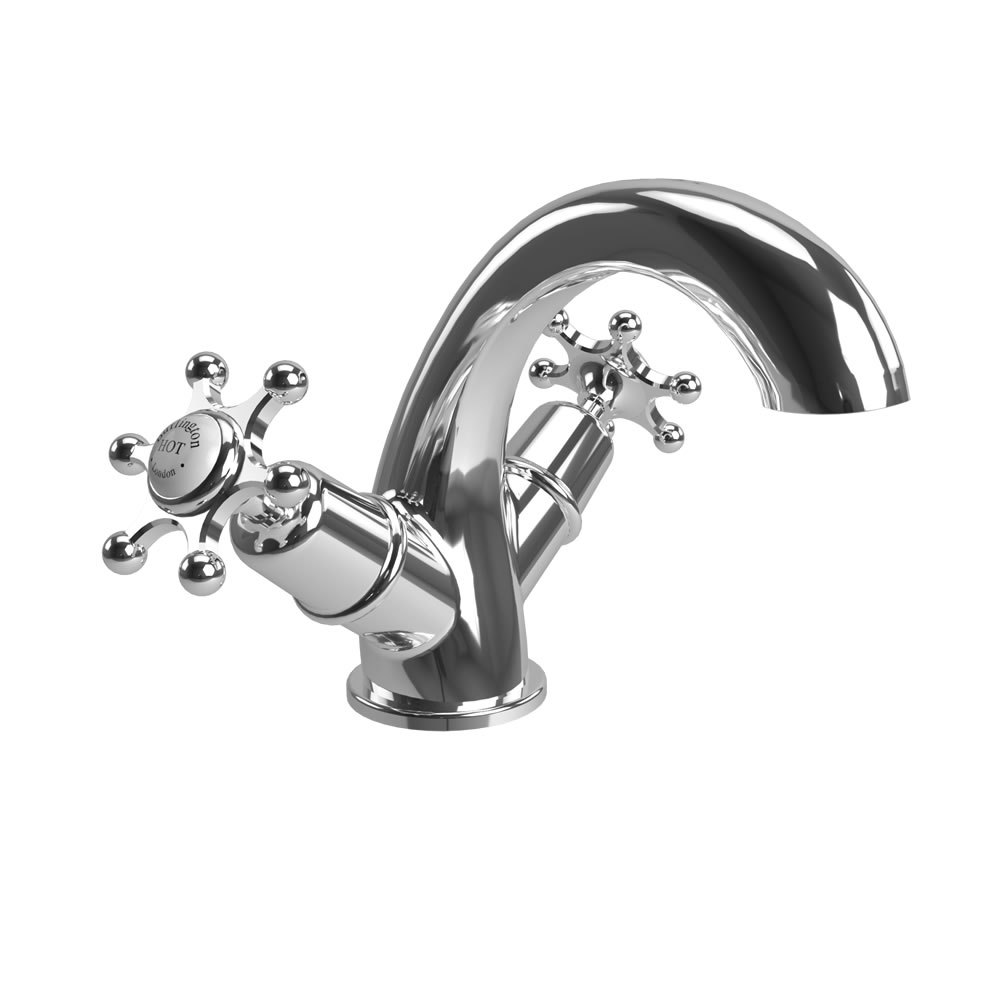

Burlington T27 mono basin mixer chrome
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Indicies & lever finish
|
Chrome
|
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
White
|
Black
|
As Shown
| T27_QT Burlington T27 Mono Basin Mixer Chrome |
| T3 Birkenhead tap handles |
| BX8 Black hot/cold tap indices |

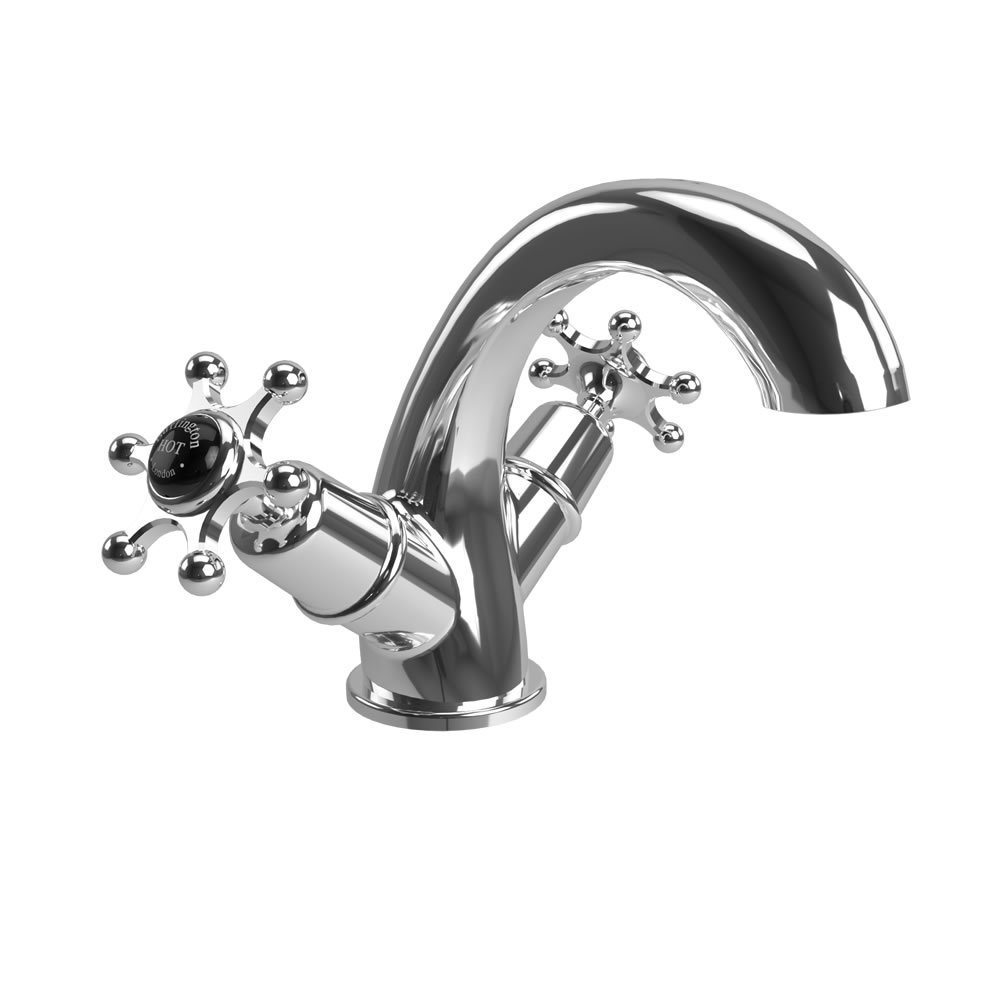

| BI45-QT BLA - Combined product code |
Gross Weight Including Packaging
| T27_QT - tap - 1.62kg |
| T3 - tap handle - 0.2kg |
| BX8 - indice - 0.02kg |
Packed Dimension
| T27_QT - 215 x 170 x 130 = 0.0048 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
Standards Information
|
BS EN 817:2008 |
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter - this is for use with low water pressure |
|
Supplied with aerator - this is for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | n/a | 30.87 | 37 | 42 | 50 | n/a | n/a |
| Spout (aerator) | n/a | 9.63 | 15.75 | 21.06 | 22.44 | 25.47 | 28.02 |
| SP70 | 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP69 | 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1550 | chrome finish Base plate including rubber gasket for T27-QT |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP1553 | clamping sets for all finishes products of T27-QT |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP655 | pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11 |
| SP1549 | rubber gasket for base plate for all finishes products of T27-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
Downloads
-
2D CAD-File - DWG -
BI45-QT BLA
(BI45-QT.dwg)
-

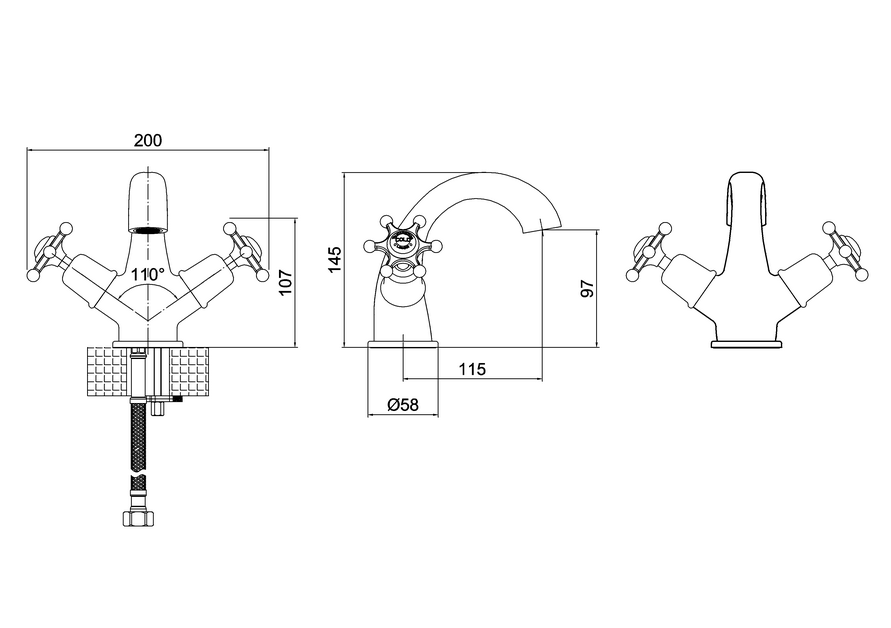

2D Drawing - PDF -
BI45-QT BLA
(BI45-QT.pdf)
2D Drawing - PDF - BI45-QT BLA
-
3D RFA BIMM Objects - File - RFA
-
BI45-QT BLA
(BI45-QT.rfa)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D IGS - File - IGS - T27_QT (T27-QT.igs)
