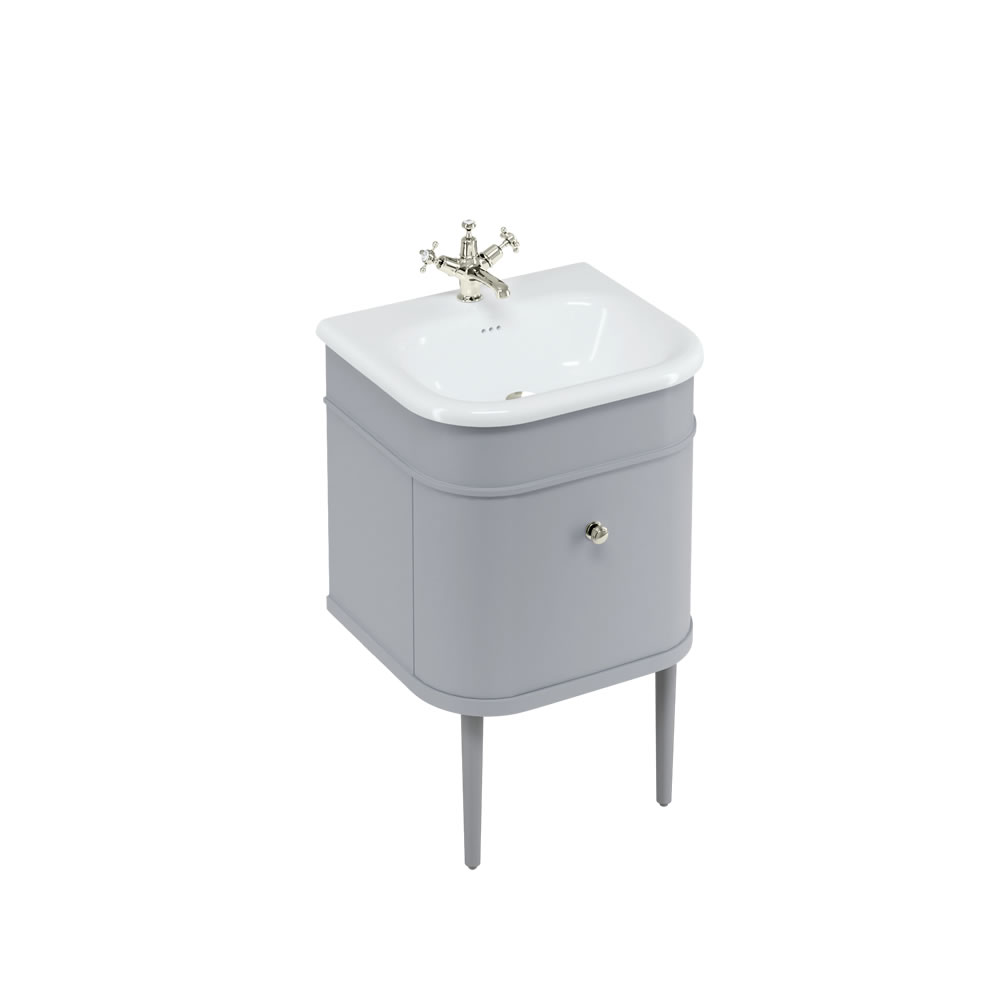

Chalfont 55cm Single drawer unit
Product Options
finish options
handle finish options
Installation options
|
Matt Grey
|
|
Chrome
|
Nickel
|
Gold
|
Without legs
|
Matt Grey legs
|
Chrome legs
|
As Shown
| B7E 55x47 roll top basin with overflow |
| CH55G Chalfont 55cm Single drawer unit Matt Grey |
| CHKCHR Chalfont Handle Chrome (single) |
| CHLEGG Chalfont Legs Matt Grey (Pair) |
Colour
| B7E - basin - Gloss White |
| CH55G - base unit - Matt Grey |
| CHKCHR - accessories - Polished Chrome |
| CHLEGG - accessories - Matt Grey |
Material
| B7E - basin - Natural Stone |
| CH55G - base unit - Engineered Wood - MDF |
| CHKCHR - accessories - Brass |
| CHLEGG - accessories - Engineered Wood - MDF |
Size
| B7E - 470 x 550 x 171mm |
| CH55G - 525 x 458 x 530mm |
| CHKCHR - 30 x 30 x 27mm |
| CHLEGG - 35 x 35 x 335mm |
Nett Weight
| B7E - basin - 11.5kg |
| CH55G - base unit - 20kg |
| CHKCHR - accessories - 0.09kg |
| CHLEGG - accessories - 0.53kg |
Gross Weight Including Packaging
| B7E - basin - 13.5kg |
| CH55G - base unit - 22kg |
| CHKCHR - accessories - 0.12kg |
| CHLEGG - accessories - 0.66kg |
Packed Dimension
| B7E - 600 x 520 x 200 = 0.0624 m3 |
| CH55G - 585 x 515 x 620 = 0.1868 m3 |
| CHKCHR - 60 x 60 x 100 = 0.0004 m3 |
| CHLEGG - 320 x 130 x 80 = 0.0033 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Soft close drawer |
|
Fully assembled |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Handle not included. |
| SP1526 | wall hung bracket for Chalfont units |
Downloads
- Instructions - PDF - B7E (English)
- Instructions - PDF - CH55G (English)
- Instructions - PDF - CH55G (French)
- Instructions - PDF - B7E (French)
-
2D CAD-File - DWG -
CH55G B7E CHKCHR CHLEGG
(CH55 B7E CHKCHR CHLEGMB.dwg)
-
2D Drawing - PDF -
CH55G B7E CHKCHR CHLEGG
(CH55 B7E CHKCHR CHLEGMB.pdf)
2D Drawing - PDF - CH55G B7E CHKCHR CHLEGG
-
3D DWG - File - DWG
-
CH55G B7E CHKCHR CHLEGG
(3D-CH55-wooden legs-20221122.dwg)
-
3D RFA BIMM Objects - File - RFA
-
CH55G B7E CHKCHR CHLEGG
(BIM-CH55-wooden legs-20221122.rfa)
