Verge Double Ended Bath
Product Options
Bath size options
|
1700 x 700mm
|
1700 x 750mm
|
1700 x 800mm
|
1800 x 750mm
|
1800 x 800mm
|
As Shown
| R10CW Verge 180cm x 80cm Double Ended Bath |
Colour
| R10CW - bath - Gloss White |
Material
| R10CW - bath - Acrylic |
Nett Weight
| R10CW - bath - 26.8kg |
Gross Weight Including Packaging
| R10CW - bath - 27.4kg |
Packed Dimension
| R10CW - 1810 x 810 x 450 = 0.6597 m3 |
Bath water capacity
| 138 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| BTW0202C - Bath Click Clack Waste |
| PRO0202M - Bath Click Clack Waste - Matt Black |
| PRO0202F+ - Bath Click Clack Waste - Brushed Brass |
| PRO0202V+ - Bath Click Clack Waste - Brushed Stainless Steel Effect |
| PRI0202M - Bath Click Clack Waste - Carbon Black |
| PRI0202UB - Bath Click Clack Waste - Unlacquered Brushed Brass |
| PRO0351C - Mike Pro bath filler with click clack waste Chrome |
| PRO0360W+ - MPRO Bath Filler with Click Clack Waste - Matt White |
| PRO0355M - Mike Pro bath filler with click clack waste Matt Black |
| PRO0355F+ - MPRO Bath Filler with Click Clack Waste - Brushed Brass |
| PRO0355V - Mike Pro bath filler with click clack waste Brushed Stainless Steel Effect |
| PRO0210W+ - MPRO Bath Clicker Waste Extended Matt White |
| R26FCW - Front bath panel 1800 |
| R29ECW - End bath panel 800 |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
| SP705 | rectangular ABS block on the Cleargreen bath |
| SP704 | square ABS block on the Cleargreen bath |
Downloads
-
2D CAD-File - DWG -
R10CW
(R10.dwg)
-

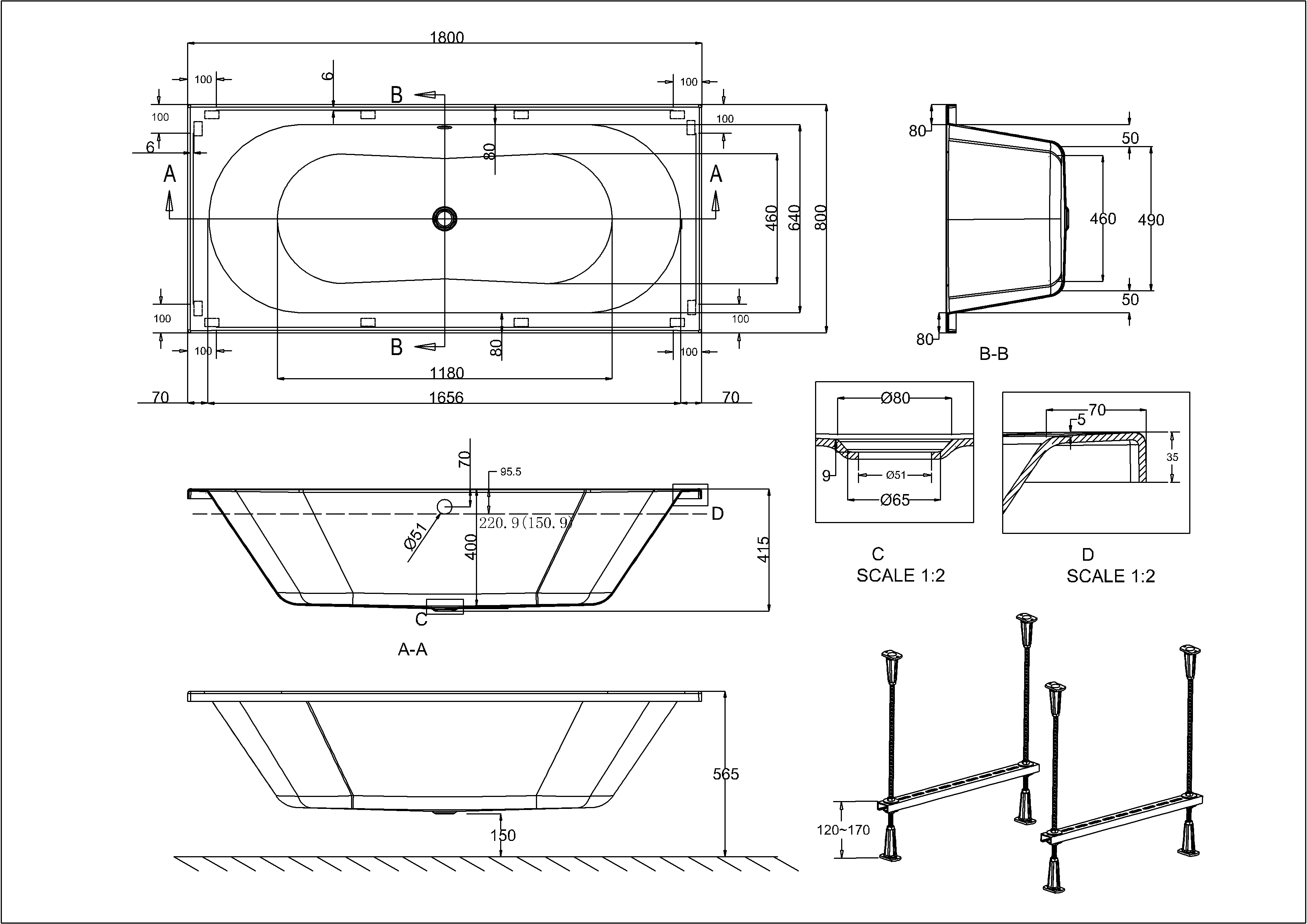

2D Drawing - PDF -
R10CW
(R10.pdf)
2D Drawing - PDF - R10CW
-
3D DWG - File - DWG
-
R10CW
(BSA-1803HWC.dwg)
-
3D DXF - File - DXF
-
R10CW
(BSA-1803HWC.dxf)
-
3D IGS - File - IGS
-
R10CW
(BSA-1803HWC.igs)
-
3D RFA BIMM Objects - File - RFA
-
R10CW
(R10.rfa)
