End Bath Panel

asaq2.Model.Web_product_new?.web_name

Product Options

Panel size options

End bath panel 700

End Bath Panel 700

End bath panel 750

End Bath Panel 750

End bath panel 800

End Bath Panel 800

Alternate Text

As Shown

R28ECW End Bath Panel 750

Colour

R28ECW - bath panel - Gloss White

Material

R28ECW - bath panel - Acrylic

Size

R28ECW - 40 x 732 x 540mm

Nett Weight

R28ECW - bath panel - 2.8kg

Gross Weight Including Packaging

R28ECW - bath panel - 3.3kg

Packed Dimension

R28ECW - 740 x 550 x 45 = 0.0183 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R28ECW (English)
Instructions - PDF - R28ECW (French)

2D CAD-File - DWG - R28ECW (R28E.dwg)

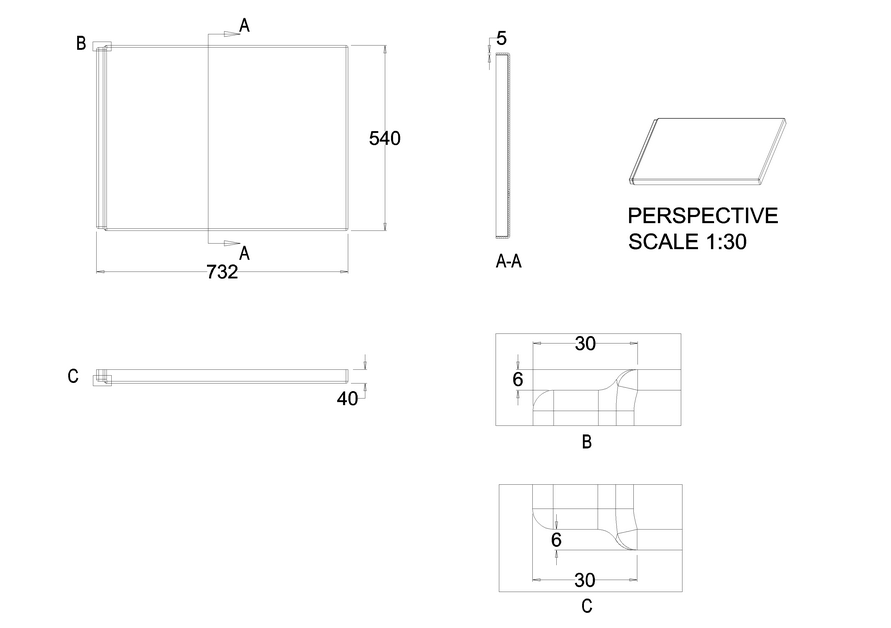

2D Drawing - PDF - R28ECW (R28E.pdf) 2D Drawing - PDF - R28ECW

3D DWG - File - DWG - R28ECW (41405002260.dwg)
3D DXF - File - DXF - R28ECW (41405002260.dxf)
3D IGS - File - IGS - R28ECW (41405002260.igs)
3D RFA BIMM Objects - File - RFA - R28ECW (R28E.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
