Camberwell 60cm Unit with worktop
Product Options
Colour options
Handle options
|
Frosted White
|

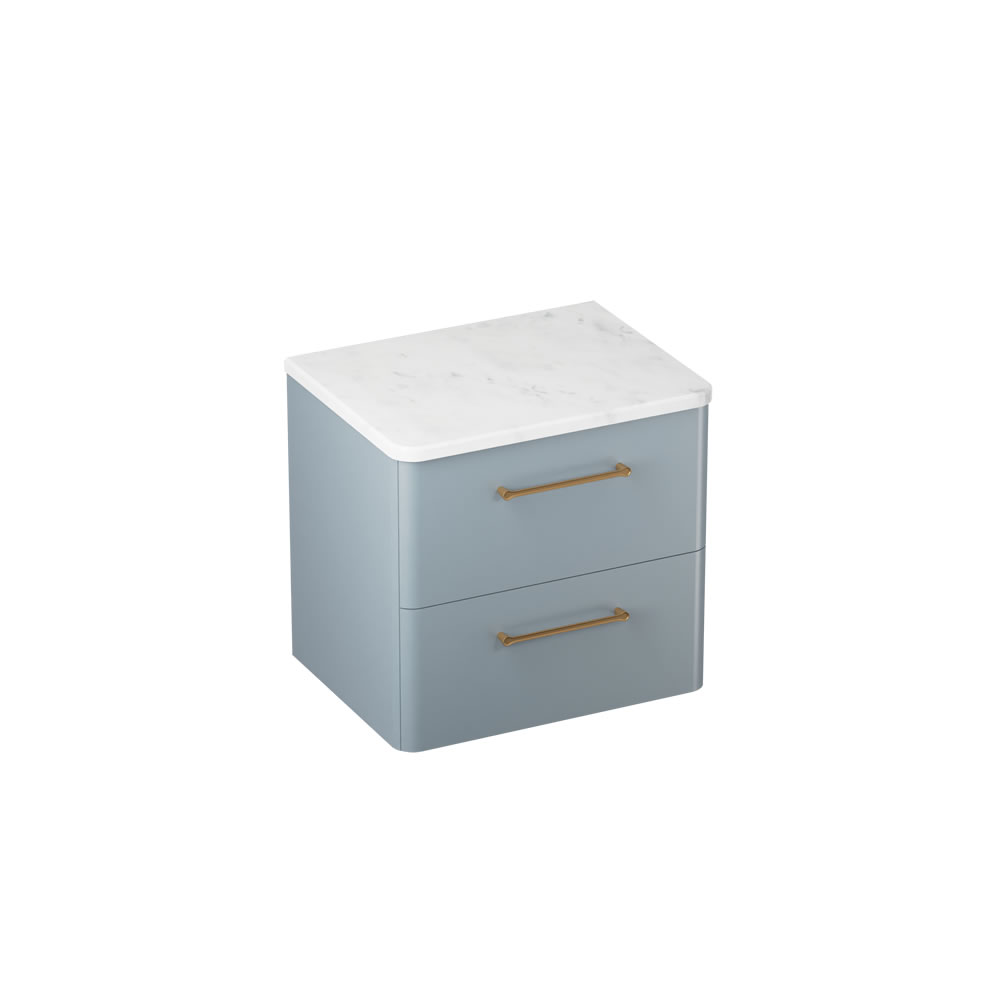

Dusty Blue
|

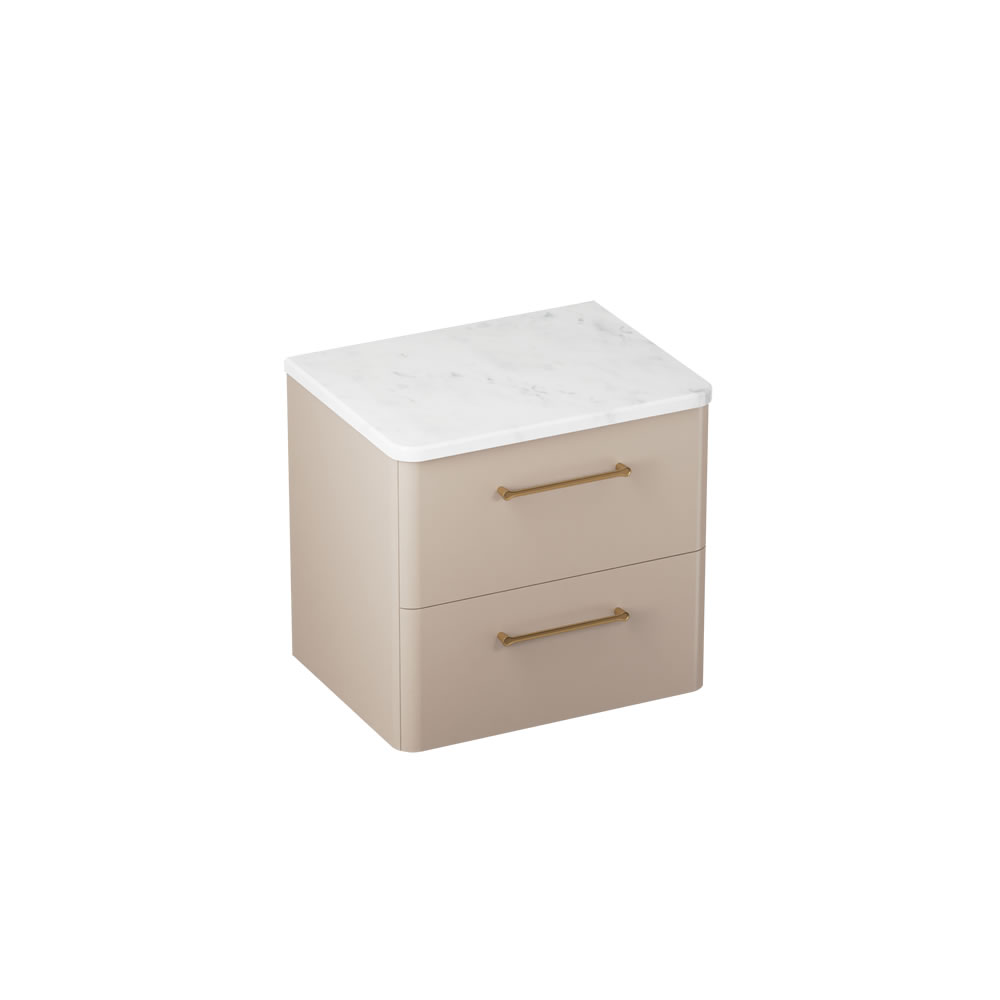

Warm Beige
|

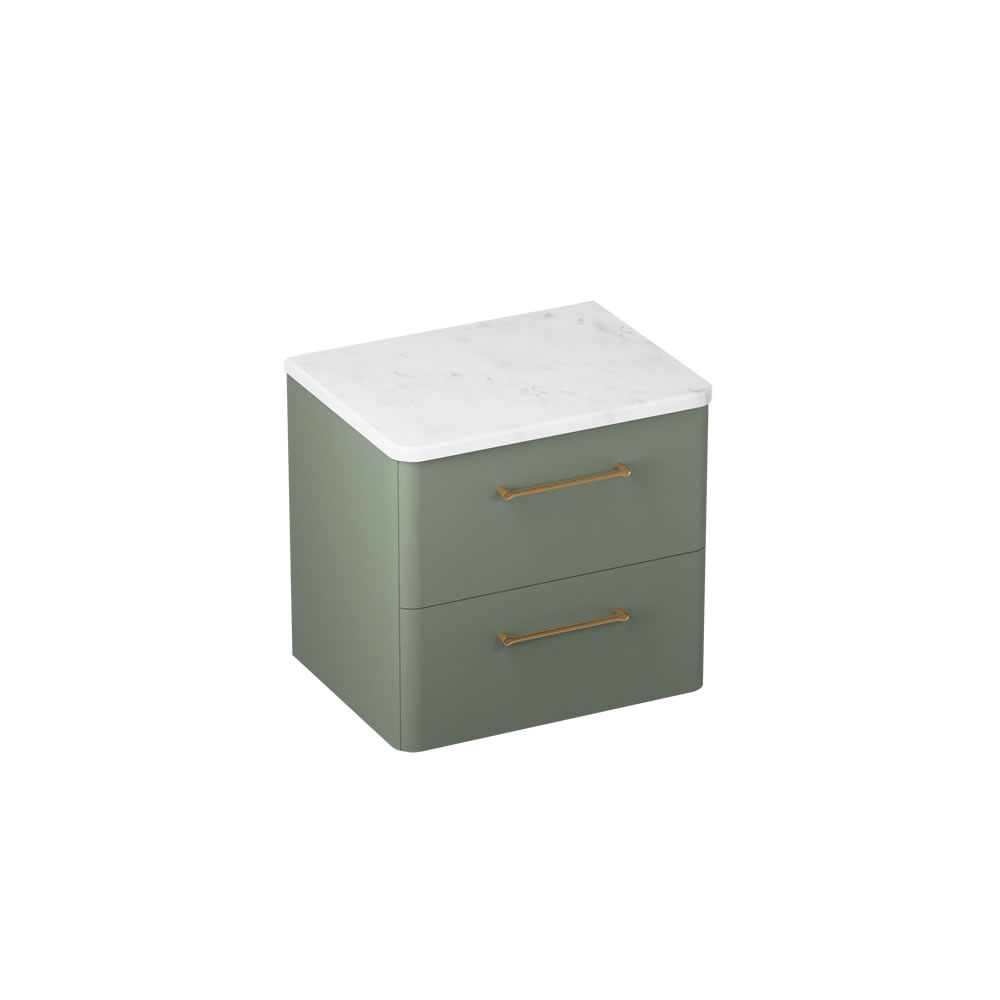

Earthy Green
|
Chrome
|
Matt Black
|
Brushed Brass
|
As Shown
| C60DDW Camberwell 600cm Unit Chalk White |
| CB60C Camberwell Work Top 600 Carrara Marble |
| CAM001BB Camberwell Handle Brushed Brass x2 |
| C60DDW_CB60C_CAM.001BB - Combined product code |
Colour
| C60DDW - base unit - Frosted White |
| CB60C - worktop - Carrara Marble |
| CAM001BB - handle - Brushed Brass |
Material
| C60DDW - base unit - MDF, MFC Painted |
| CB60C - worktop - Solid surface |
| CAM001BB - handle - Zamac |
Gross Weight Including Packaging
| C60DDW - base unit - 30kg |
| CB60C - worktop - 14.5kg |
| CAM001BB - handle - 0.08kg |
Packed Dimension
| C60DDW - 500 x 700 x 600 = 0.21 m3 |
| CB60C - 465 x 610 x 30 = 0.0085 m3 |
| CAM001BB - 60 x 300 x 30 = 0.0005 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Fully assembled |
|
full extension soft close pull to open drawers |
|
wall hangers 2 way adjustment (100kg weight capacity when fitted to a solid wall) |
Downloads
- Instructions - PDF - C60DDW (English)
- Instructions - PDF - CB60C (English)
- instructions - File - specifications - C60DDW
- instructions - File - specifications - CB60C
- instructions - File - specifications - CAM001BB
-
2D CAD-File - DWG -
C60DDXX_DWG_V10522
(C60DDxx_DWG_V10522.DWG)
-
2D CAD-File - DWG -
CB60C_DWG_V10322
(CB60C_DWG_V10322.DWG)
-
2D CAD-File - DWG -
CAM.001_DWG_V10322
(CAM.001_DWG_V10322.DWG)
- 3D STEP - File - STEP - C60DDW (C60DDxx_STP_V10522.STEP)
- 3D STEP - File - STEP - CB60C (CB60C_STP_V10522.STEP)
- 3D STEP - File - STEP - CAM001BB (CAM_001_STP_V10522.STEP)
- drawing - File - drawing - C60DDW (C60DDxx_DWG_V10522.DWG)
- drawing - File - drawing - CB60C (CB60C_DWG_V10322.DWG)
- drawing - File - drawing - CAM001BB (CAM.001_DWG_V10322.DWG)
