Burlington 3" basin taps

Product Options

Finish Options

Chrome

Gold

Nickel

Brushed Nickel

Tap Head Options (Chrome Finish Shown)

Claremont

Quarter turn options

quarter turn

Tap Base options

Standard base

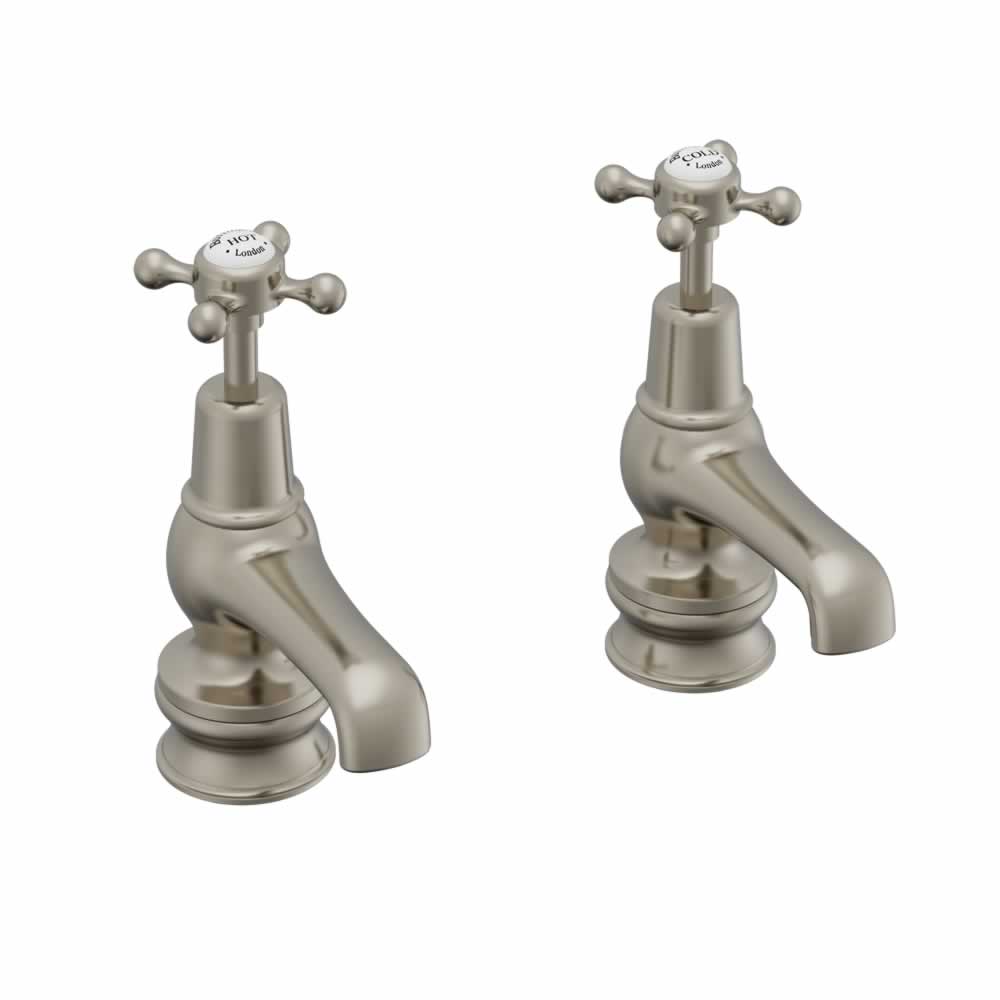

Claremont Regent basin tap 3" brushed nickel

Regent base

Indicies & lever finish

White

As Shown

T5_QTBNKL Quarter Turn Basin Pillar Taps 3" Brushed Nickel

T1BNKL Claremont tap handles (pair) Brushed Nickel

CL1-QT BNKL - Combined product code

Colour

T5_QTBNKL - - Brushed Nickel

T1BNKL - - Brushed Nickel

Material

T5_QTBNKL - - Brass

T1BNKL - - Brass

Size

T5_QTBNKL - 122 x 148 x 120mm

T1BNKL - 65 x 65 x 28mm

Nett Weight

T5_QTBNKL - - 1.282kg

T1BNKL - - 0.15kg

Gross Weight Including Packaging

T5_QTBNKL - - 1.55kg

T1BNKL - - 0.17kg

Packed Dimension

T5_QTBNKL - 245 x 175 x 55 = 0.0024 m3

T1BNKL - 60 x 60 x 62 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Gold and Nickel finish is only available with the quarter turn option

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	13.2	14.3	18.1	22.8	22.9	n/a	n/a
Spout (aerator)	4.8	7.7	9.1	10.7	11.6	n/a	n/a

Spare parts

SP1652BNKL	3, 4 quarter turn COLD cartridge for T5_QTBNKL, T6_QTBNKL
SP1653BNKL	3, 4 quarter turn HOT cartridge for T5_QTBNKL, T6_QTBNKL
SP450	aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91	G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP1093	thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
