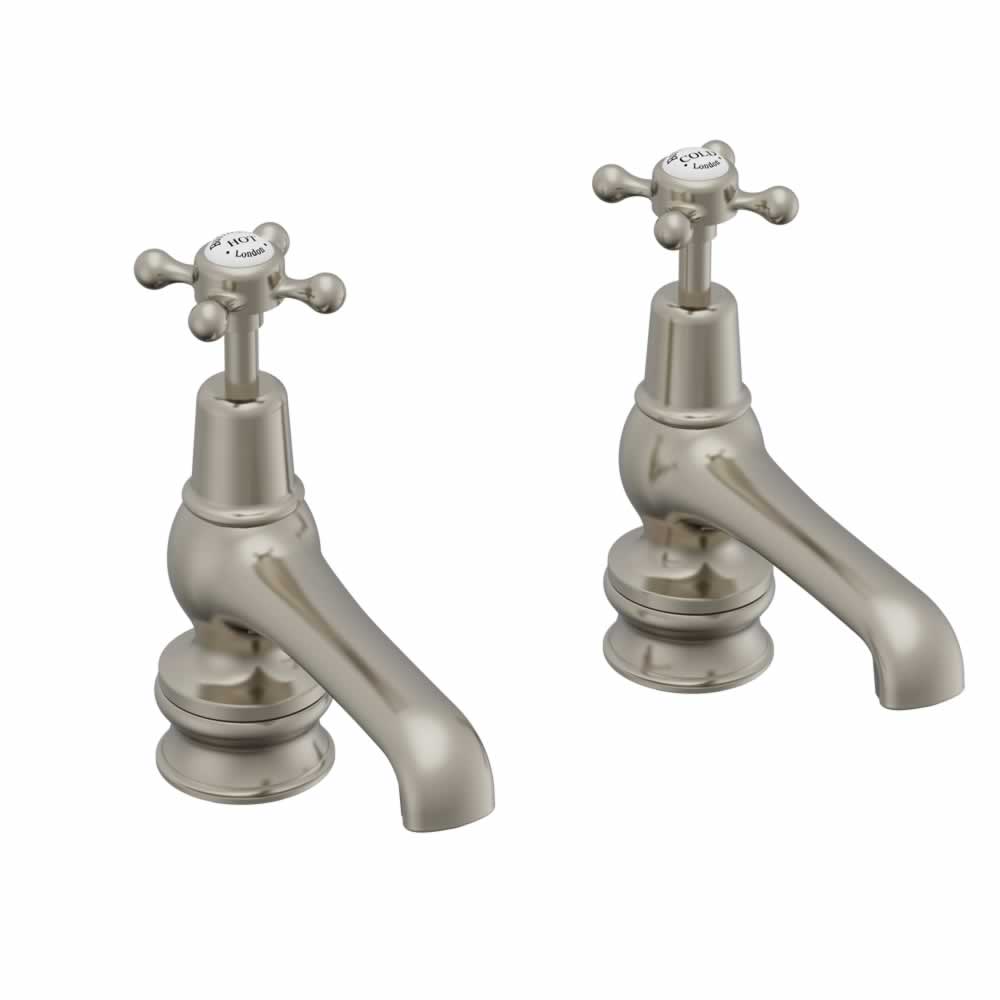

Burlington 5" basin taps
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
|
Standard base
|
Regent base
|
|
White
|
As Shown
| T6_QTBNKL Quarter Turn Basin Pillar Taps 5” Brushed Nickel |
| T1BNKL Claremont tap handles (pair) Brushed Nickel |
| CL2-QT-BNKL - Combined product code |
Material
| T6_QTBNKL - - Brass |
| T1BNKL - - Brass |
Nett Weight
| T6_QTBNKL - - 1.32kg |
| T1BNKL - - 0.15kg |
Gross Weight Including Packaging
| T6_QTBNKL - - 1.62kg |
| T1BNKL - - 0.17kg |
Packed Dimension
| T6_QTBNKL - 325 x 195 x 55 = 0.0035 m3 |
| T1BNKL - 60 x 60 x 62 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12.7 | 13.8 | 17.6 | 22.2 | 22.6 | n/a | n/a |
| Spout (aerator) | 4.8 | 7.9 | 9.1 | 10.5 | 11.6 | n/a | n/a |
| SP1652BNKL | 3, 4 quarter turn COLD cartridge for T5_QTBNKL, T6_QTBNKL |
| SP1653BNKL | 3, 4 quarter turn HOT cartridge for T5_QTBNKL, T6_QTBNKL |
| SP450 | aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP91 | G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT |
| SP451 | key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
