Berkeley radiator
Product Options
finish
|
Chrome
|
Gold
|
Brushed Nickel
|
As Shown
| R4 GOLD Berkeley Gold |
Material
| R4 GOLD - radiator - Steel |
Nett Weight
| R4 GOLD - radiator - 5.86kg |
Gross Weight Including Packaging
| R4 GOLD - radiator - 6.86kg |
Packed Dimension
| R4 GOLD - 980 x 670 x 170 = 0.1116 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
The radiator can be installed and connected to a central heating system. |
|
THE TOWEL RAIL IS NOT SUITABLE FOR USE WITH DUAL FUEL ELEMENTS. |
|
420mm plumbing pipe centers |
|
Distance from wall to the rail is 110mm. |
|
Includes all brackets and fixings. |
|
High quality plated finish. |
|
Output:819 BTUs/180 watts (△T=50℃) |
|
Valves are required. These are not included. |
|
Diameter of tubes is 32mm. |
|
Designed to be plumbed into your central heating system. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
Compatible Products
| R6 BNKL - Angled Radiator Valve Brushed Nickel |
| SP801GOLD | air Vent Gold Towel Rail |
| SP137GOLD | brackets Set R1, R2, R4 GOLD |
Downloads
-
2D CAD-File - DWG -
R4 GOLD
(R4 GOLD_BNKL-230203.dwg)
-

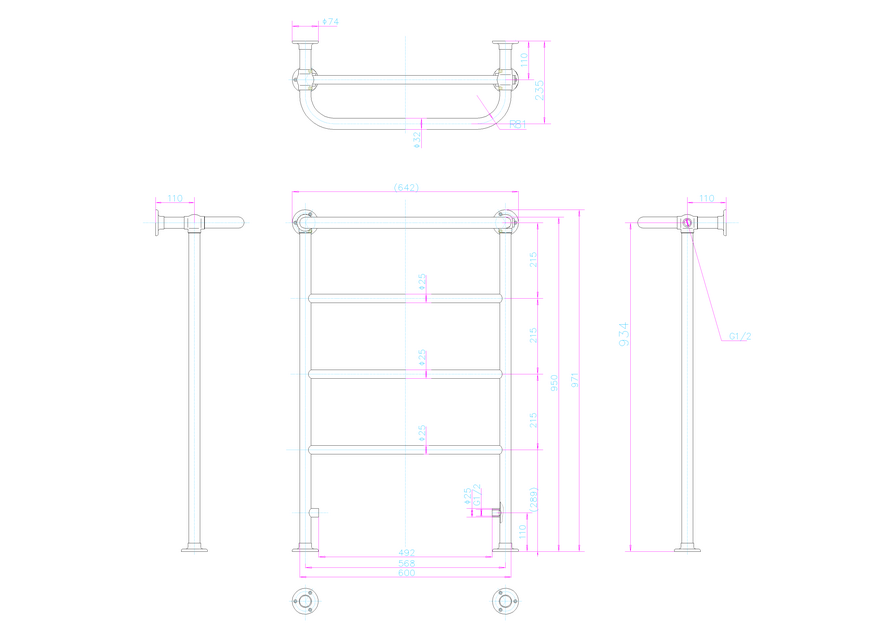

2D Drawing - PDF -
R4 GOLD
(R4 GOLD_BNKL-230203.pdf)
2D Drawing - PDF - R4 GOLD
-
3D DWG - File - DWG
-
R4 GOLD
(R4.dwg)
-
3D DXF - File - DXF
-
R4 GOLD
(R4.dxf)
-
3D RFA BIMM Objects - File - RFA
-
R4 GOLD
(R4.rfa)
-
3D IGS - File - IGS
-
R4 GOLD
(R4 GOLD_BNKL.igs)
