Freestanding 650 vanity unit with drawers & Classic 650 basin for standard waste & overflow
Product Options
Colour options: furniture
Tap hole options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Matt Green
|
1 tap hole
|
2 tap holes
|
3 tap holes
|
As Shown
| FF9MG Freestanding Basin Unit with drawers Matt Green |
| B15 3TH Classic 65cm basin three tap holes |
Nett Weight
| FF9MG - base unit - 34kg |
| B15 3TH - basin - 19.05kg |
Gross Weight Including Packaging
| FF9MG - base unit - 39.5kg |
| B15 3TH - basin - 22.9kg |
Packed Dimension
| FF9MG - 730 x 615 x 885 = 0.3973 m3 |
| B15 3TH - 670 x 597 x 315 = 0.126 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
| SP945 | assembling screws & fixings for Burlington and Aqua furniture (10pcs for one set) |
| SP999-MG | freesta Unit Bot Draw Pan & Int MGreen |
| SP998-MG | freesta Unit Top Draw Pan & Int MGreen |
| SP670 | one set of drawer runner 400mm for Burlington units |
Downloads
-
2D CAD-File - DWG -
FF9MG
(FF9_B15 3TH.dwg)
-

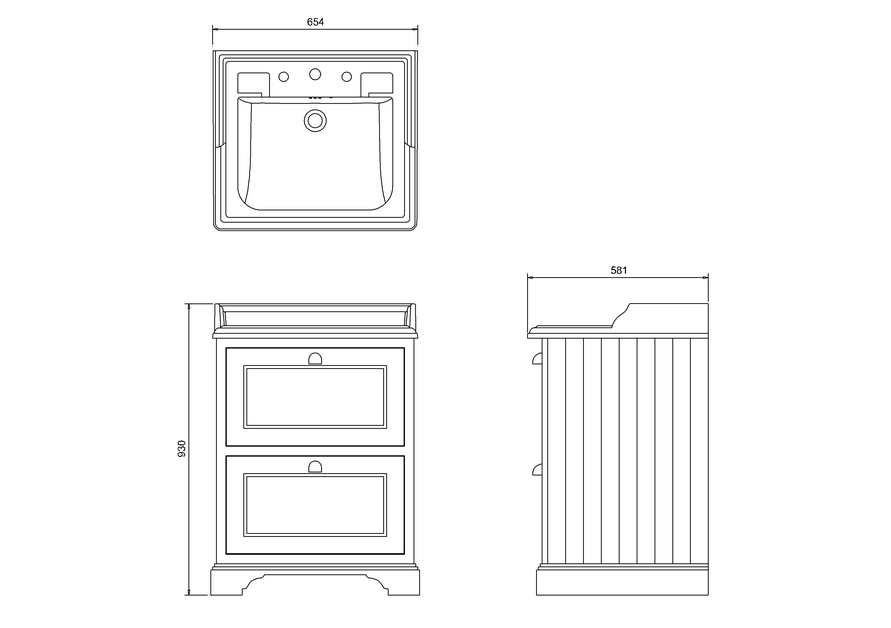

2D Drawing - PDF -
FF9MG
(FF9_B15 3TH.pdf)
2D Drawing - PDF - FF9MG
-
3D DWG - File - DWG
-
FF9MG
(90532.dwg)
-
3D DXF - File - DXF
-
FF9MG
(90532.dxf)
-
3D IGS - File - IGS
-
FF9MG
(90532.igs)
-
3D RFA BIMM Objects - File - RFA
-
FF9MG
(90532.rfa)
