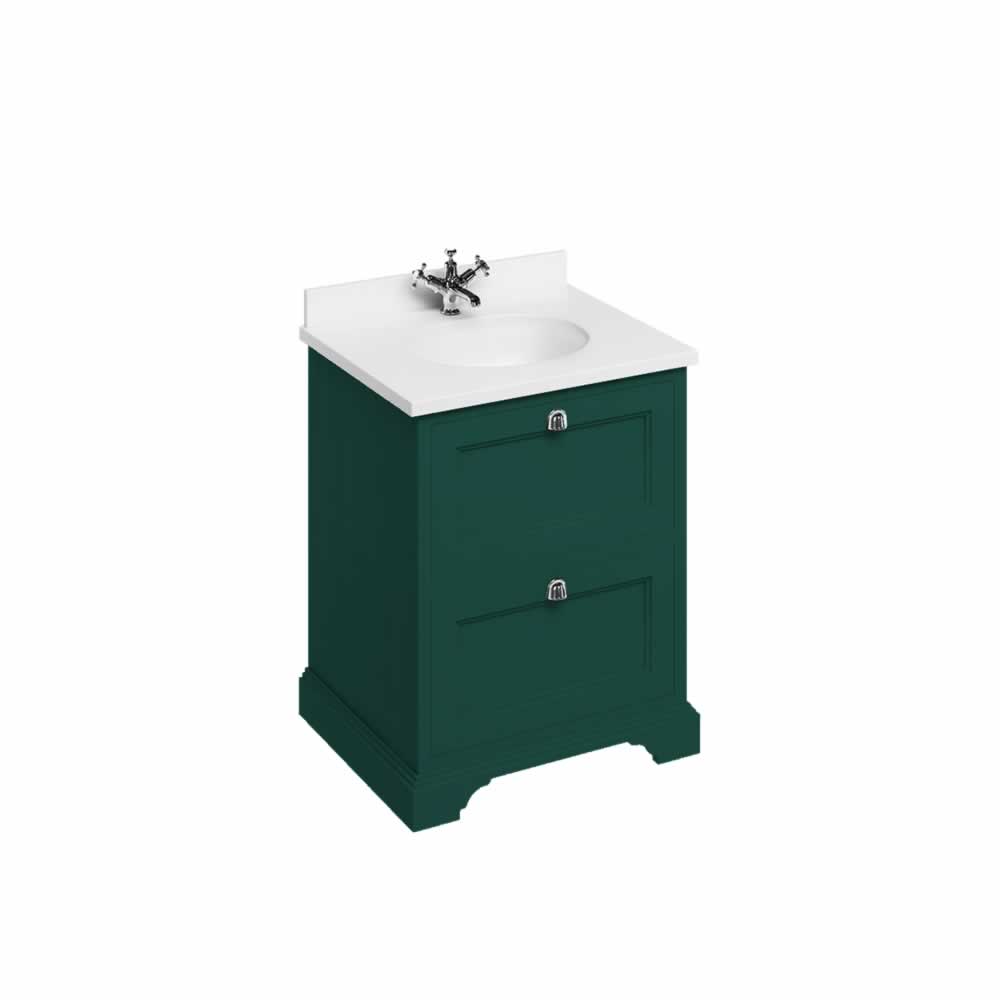

Freestanding 650 vanity unit with drawers & Minerva® White with vanity bowl
Product Options
Colour options: furniture
Worktop options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Matt Green
|
|
Minerva Carrara white worktop
|
Minerva white worktop
|

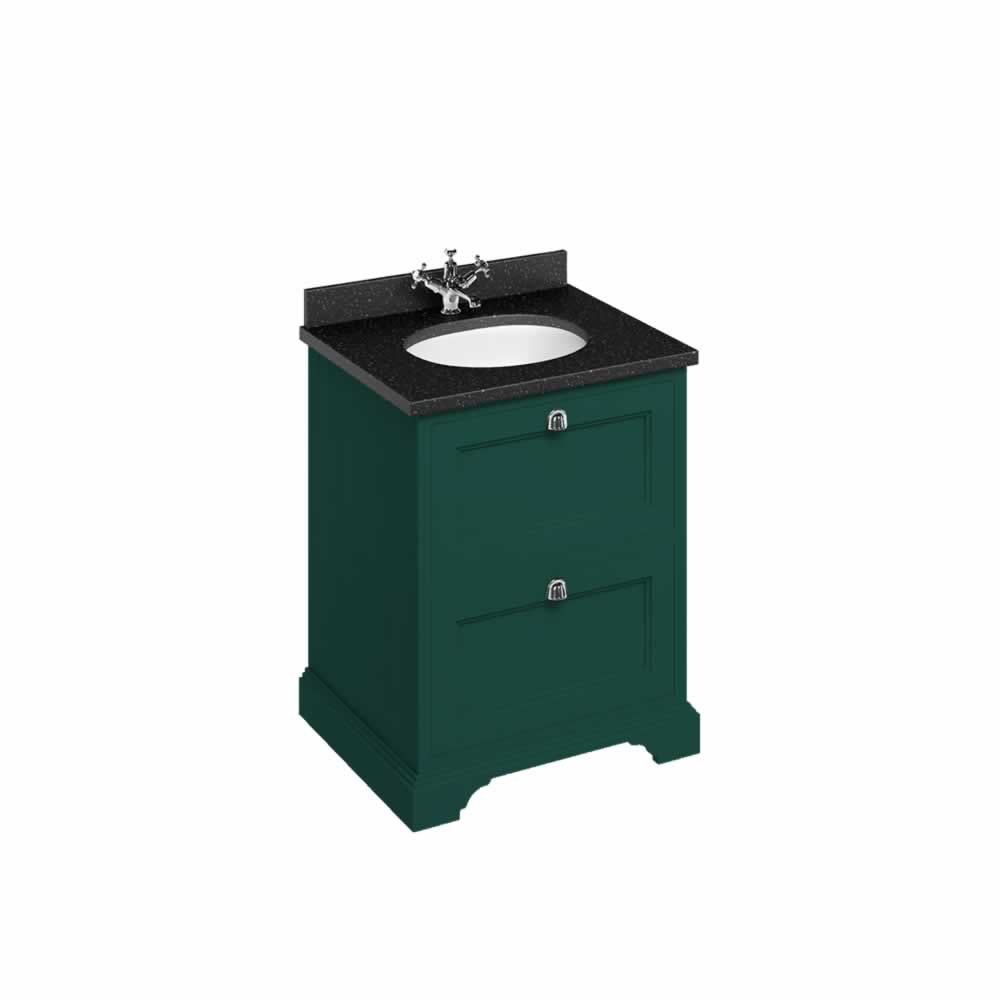

Minerva black granite worktop
|
As Shown
| FF9MG Freestanding Basin Unit with drawers Matt Green |
| BC66 Minerva carrara white with vanity bowl |
Material
| FF9MG - base unit - Engineered Wood - MDF |
| BC66 - worktop with intergrated basin - minerva solid surface material |
Gross Weight Including Packaging
| FF9MG - base unit - 39.5kg |
| BC66 - worktop with intergrated basin - 24kg |
Packed Dimension
| FF9MG - 730 x 615 x 885 = 0.3973 m3 |
| BC66 - 745 x 625 x 255 = 0.1187 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
| SP945 | assembling screws & fixings for Burlington and Aqua furniture (10pcs for one set) |
Downloads
-
2D CAD-File - DWG -
FF9MG
(FF9_FT1B_1.dwg)
-
2D Drawing - PDF -
FF9MG
(FF9_FT1B_1.pdf)
2D Drawing - PDF - FF9MG
-
3D DWG - File - DWG
-
FF9MG
(90528.dwg)
-
3D DXF - File - DXF
-
FF9MG
(90528.dxf)
-
3D IGS - File - IGS
-
FF9MG
(90528.igs)
-
3D RFA BIMM Objects - File - RFA
-
FF9MG
(90528.rfa)
