Bath Screen
Product Options
Bath Screen options
Without Access Panel
|
With Access Panel
|

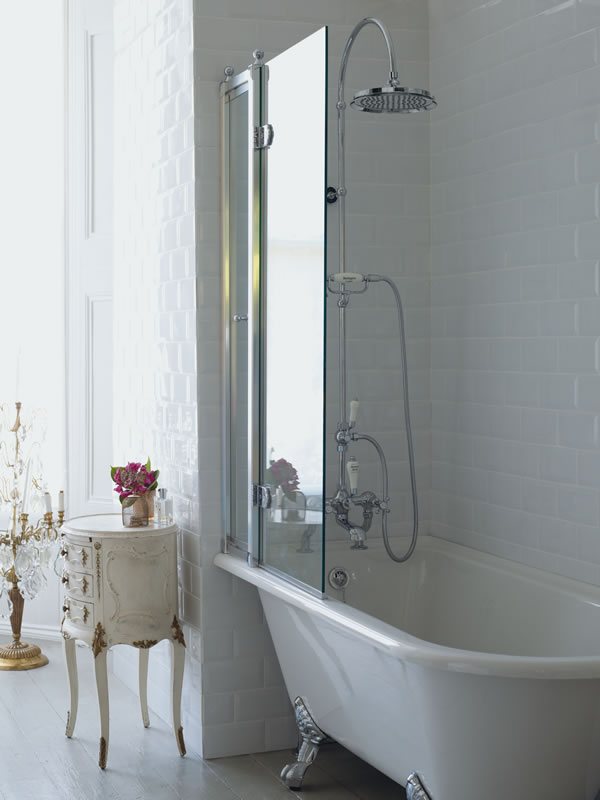

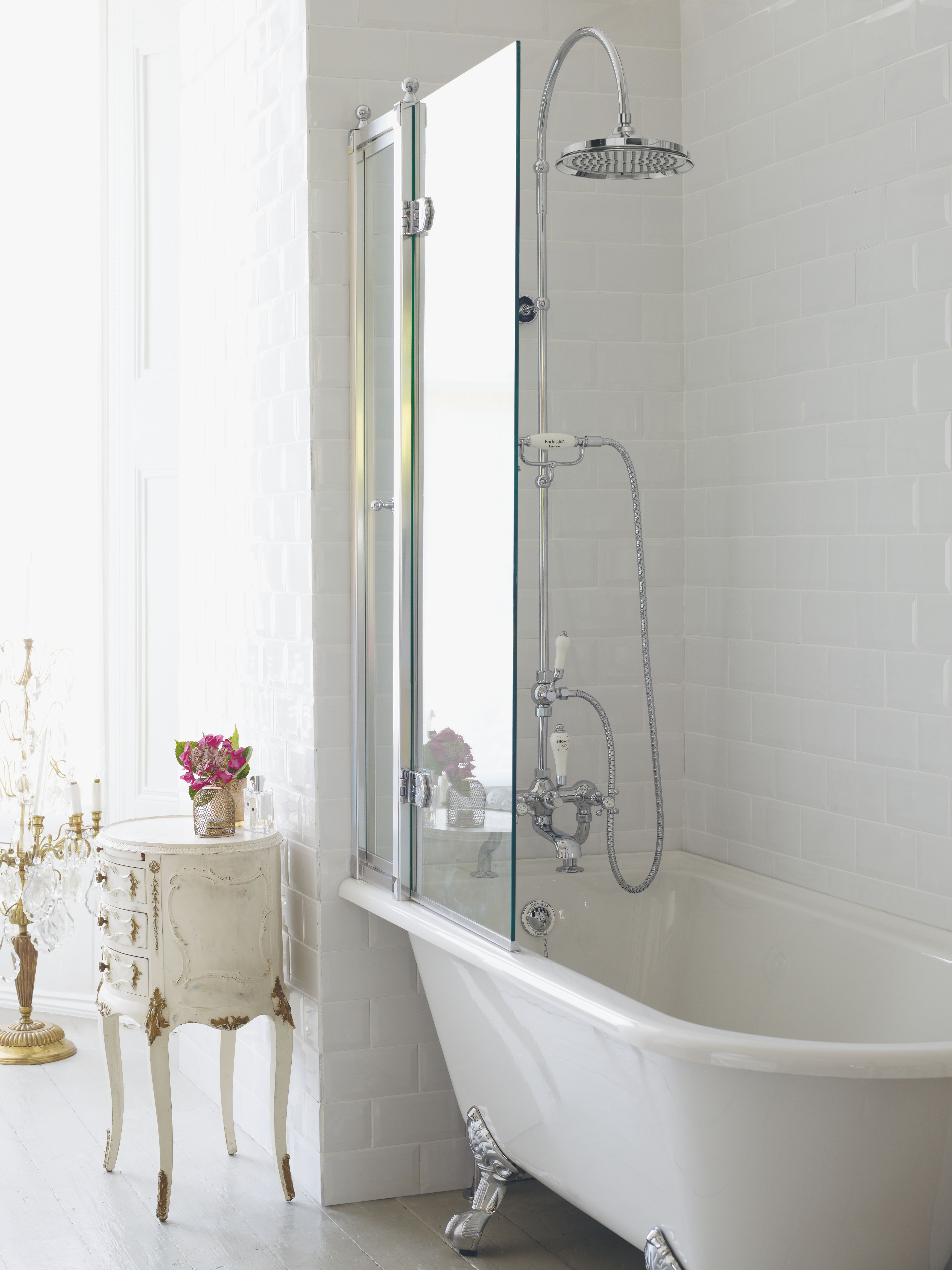

As Shown
| C10 Bathscreen with access panel |
| BU44 - Combined product code |
Material
| C10 - bathscreen - Aluminum |
Size
| C10 - 850 x 1450mm |
Nett Weight
| C10 - bathscreen - 26.4kg |
Gross Weight Including Packaging
| C10 - bathscreen - 29.2kg |
Packed Dimension
| C10 - 1510 x 640 x 102 = 0.0986 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Screen opens outwards only |
| SP81 | bath screen bottom waterproof strip 1M |
| SP57 | bath Screen With Access Panel Spare Kit |
| SP121 | bottom water proof strip cap for C9, C10 - B050 |
| SP120 | bottom water proof strip for C10 - B054 |
| SP153 | handle for C10 |
| SP912 | hinge of product C19, C20, C21, C9, C10 |
| SP1001 | hinge profile of product C9, C10 (without hinges) |
| SP1687 | hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21, |
| SP556 | magnet seals for the access panel of C10 (pair) |
| SP1035 | pair of top and bottom seals of the access panel |
| SP515 | supporting bar for side panel C10, C11, C12, C13, C15 |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP494 | vertical waterproof strip for C10 L=1381mm |
| SP139 | wall profile cover for C10 |
| SP615 | wall profile for C9, C10 (B051) |
Downloads
-
2D CAD-File - DWG -
BU44
(C10_LD.dwg)
-

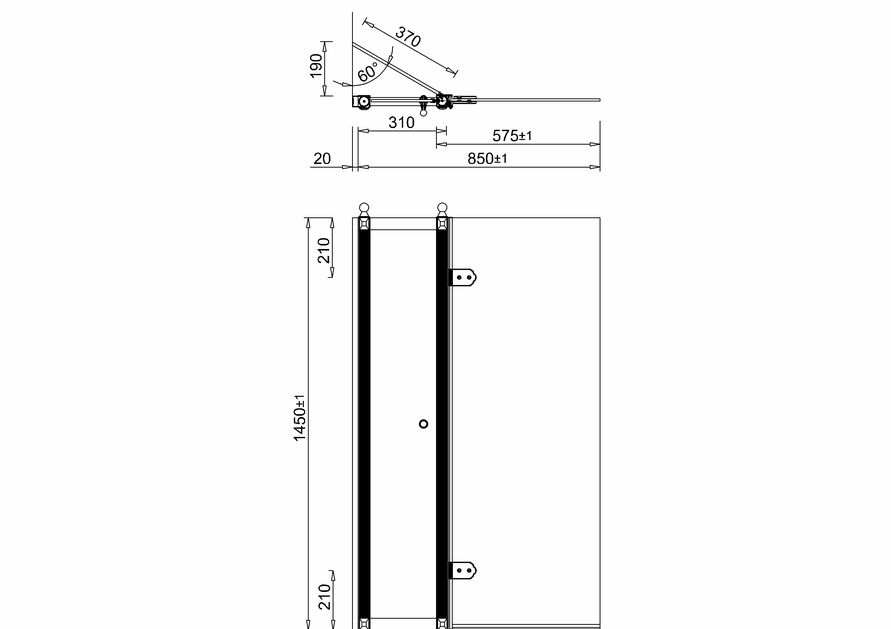

2D Drawing - PDF -
BU44
(C10_LD.pdf)
2D Drawing - PDF - C10
-
3D DWG - File - DWG
-
BU44
(C10.dwg)
-
3D DXF - File - DXF
-
BU44
(C10.dxf)
-
3D IGS - File - IGS
-
BU44
(C10.igs)
-
3D RFA BIMM Objects - File - RFA
-
BU44
(C10.rfa)
