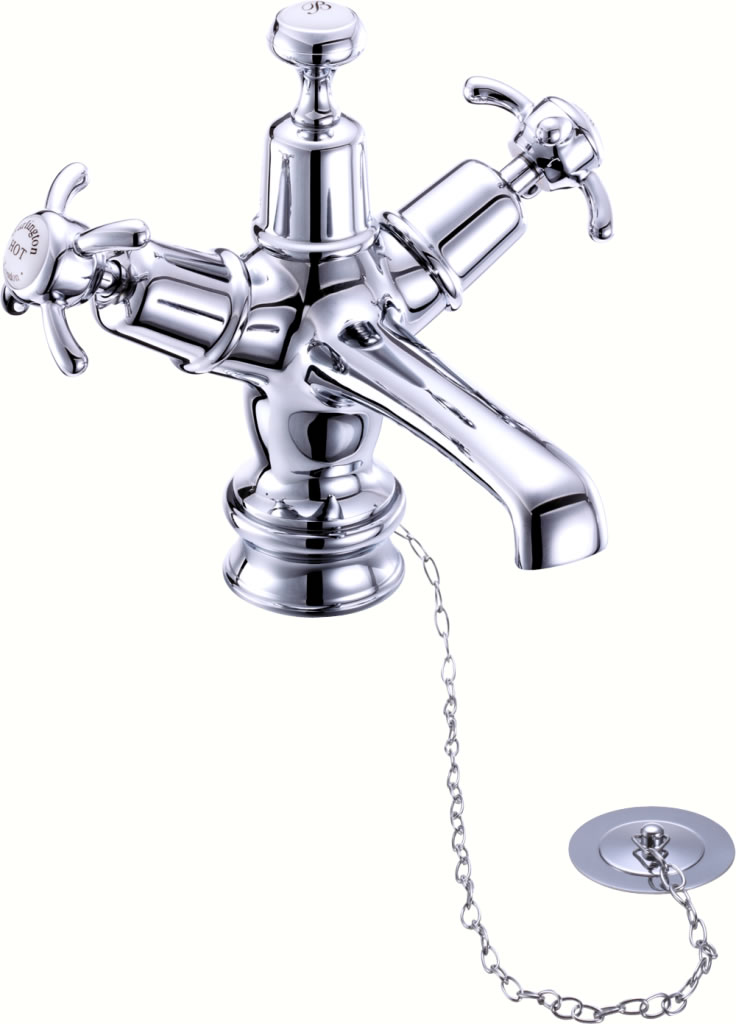

Burlington basin mixer with high central indice

Product Options

Finish Options

Anglesey Regent basin mixer with plug and chain waste

Chrome

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Anglesey basin mixer with plug and chain waste

Standard base

Regent base

Waste options

with click-clack waste

with pop-up waste

with plug & chain

Indicies & lever finish

White

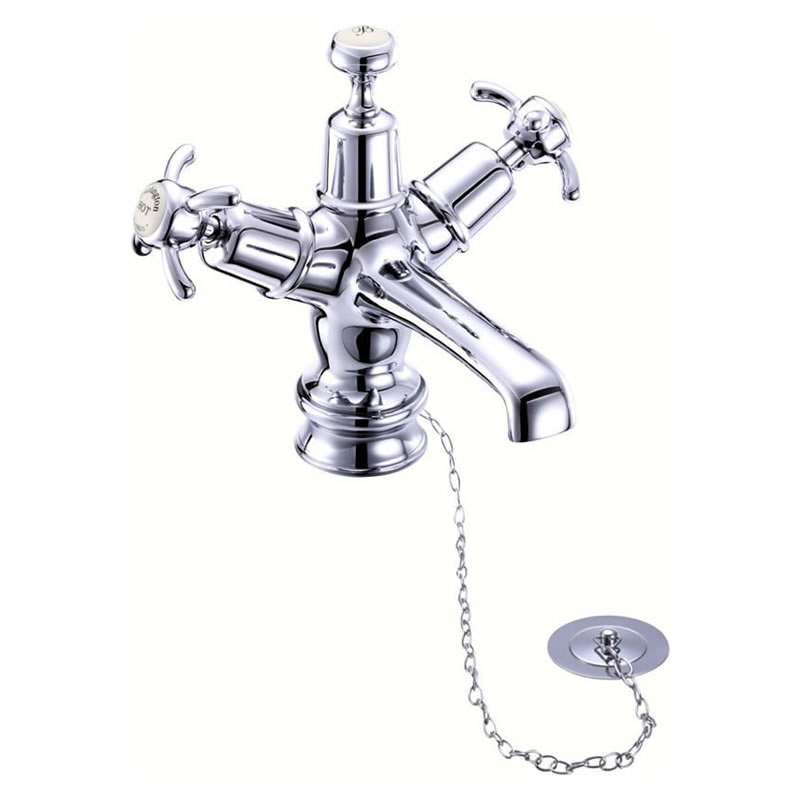

Medici

Black

As Shown

T13 Basin mixer with plug & chain

T2 Anglesey tap handles

T4B Regent small single tap base

ANR5 - Combined product code

Colour

T13 - tap - Polished Chrome

T2 - tap handle - Polished Chrome

T4B - regent tap base - Polished Chrome

Material

T13 - tap - Brass

T2 - tap handle - Brass

T4B - regent tap base - Brass

Size

T13 - 151 x 215 x 152mm

T2 - 64 x 64 x 23.7mm

T4B - 55 x 55 x 29mm

Nett Weight

T13 - tap - 1.7kg

T2 - tap handle - 0.16kg

T4B - regent tap base - 0.15kg

Gross Weight Including Packaging

T13 - tap - 2kg

T2 - tap handle - 0.18kg

T4B - regent tap base - 0.21kg

Packed Dimension

T13 - 415 x 335 x 180 = 0.025 m3

T2 - 52 x 52 x 65 = 0.0002 m3

T4B - 65 x 65 x 35 = 0.0001 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

ACS Approved

Additional Information

Gold and Nickel finish is only available with the quarter turn option

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	12	13.2	15.2	19.4	21.4	n/a	n/a
Spout (aerator)	4.5	7.8	8.7	9.8	12	n/a	n/a

Spare parts

SP450	aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1726	back bottom washer for SP28
SP1189	black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235	chain for T13, T13-QT, T16, T16-QT, W1
SP817	chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP194	o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655	pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP1111	plug (including the chain, stud and nut) for T13, T13-QT
SP884	plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48	T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29	T13, T15 1, 2 full turn cartridge
SP942	tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1103	the grate for the W1, T16, T16-QT, T13, T13-QT
SP985	top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
