Burlington basin mixer with high central indice
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

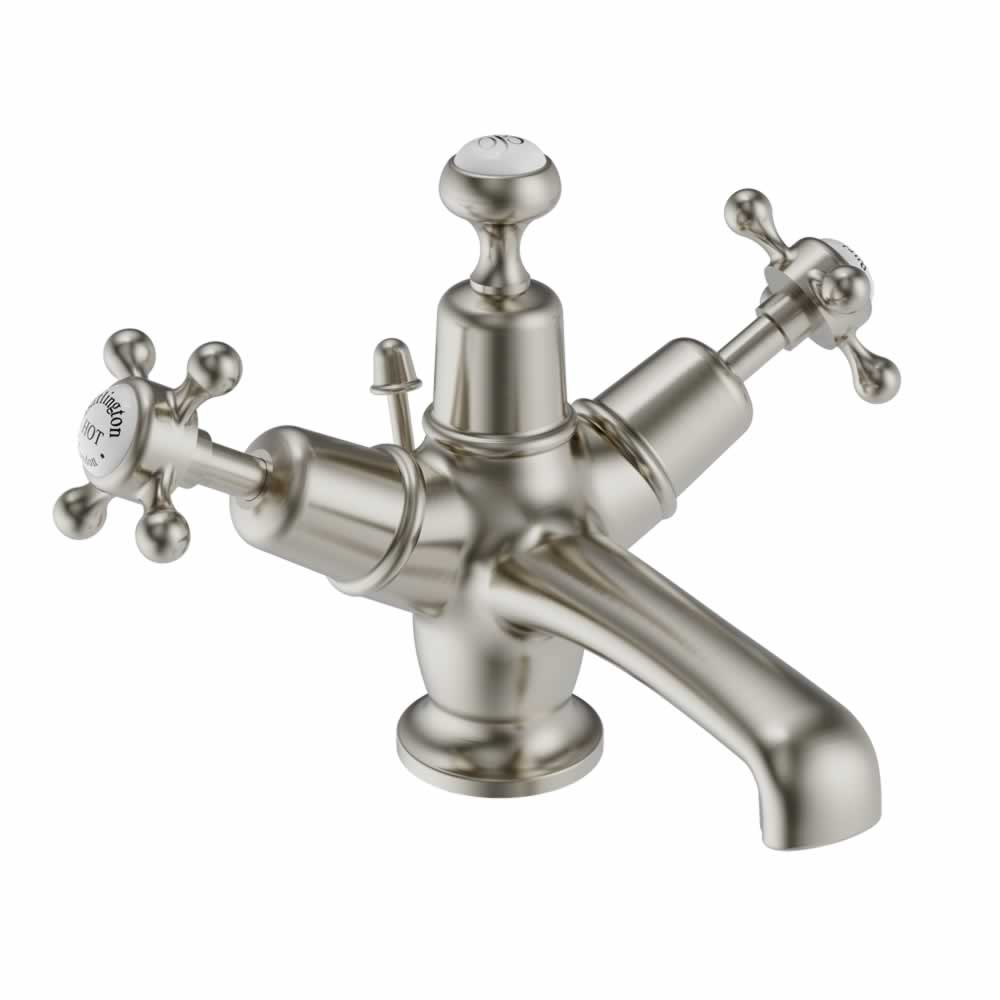

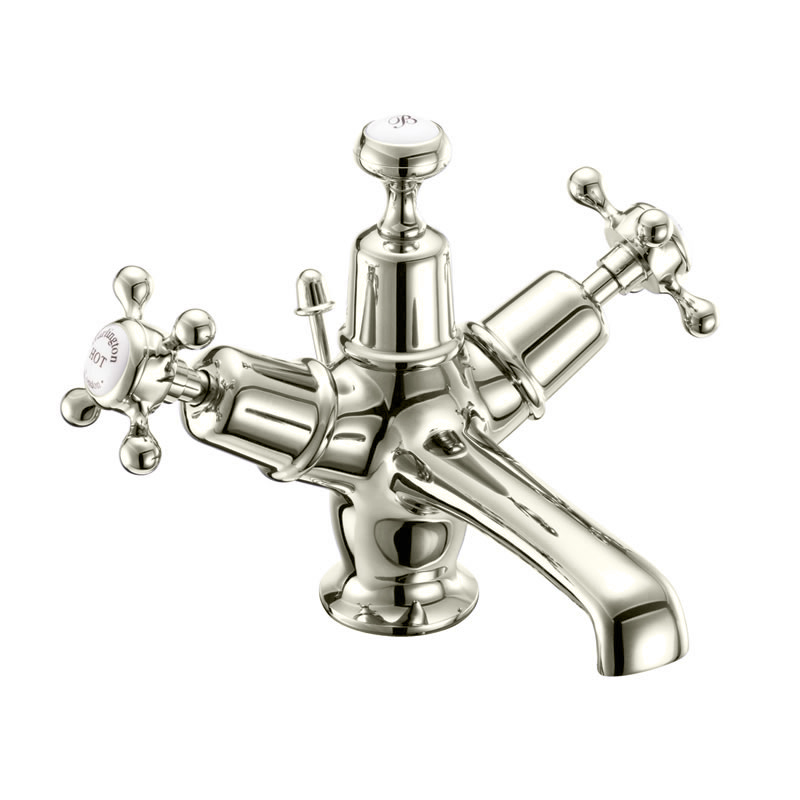

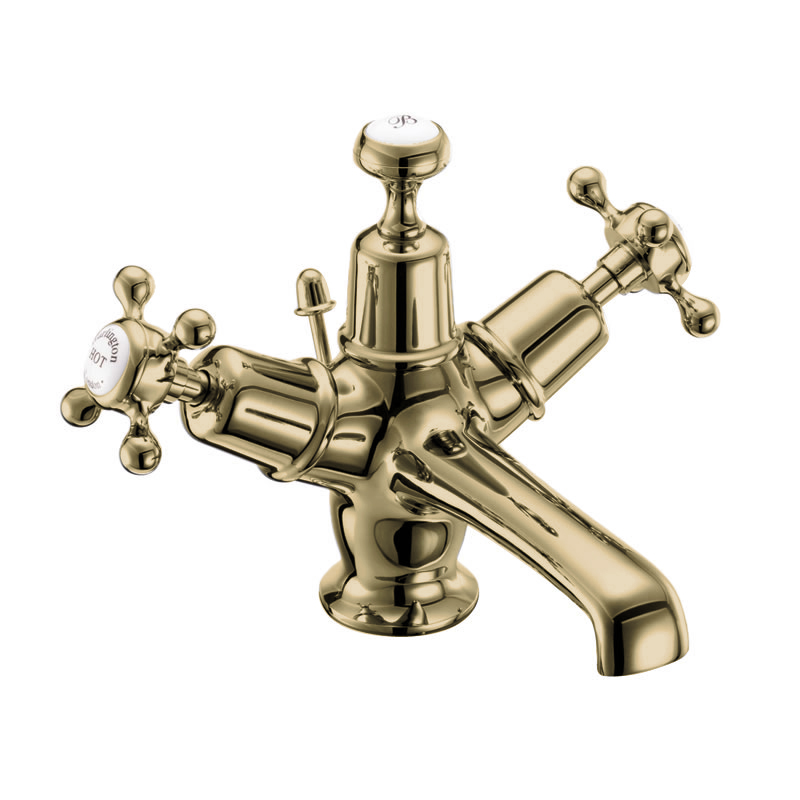

Claremont basin mixer with click-clack waste Chrome Claremont basin mixer with pop-up waste Gold Claremont basin mixer with pop-up waste Nickel Claremont basin mixer with pop-up waste Brushed Nickel
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey basin mixer with click-clack waste Anglesey Birkenhead basin mixer with click-clack waste Birkenhead
Quarter turn options
Claremont basin mixer with click-clack waste quarter turn full_done.jpg tradional screw-down
Tap Base options

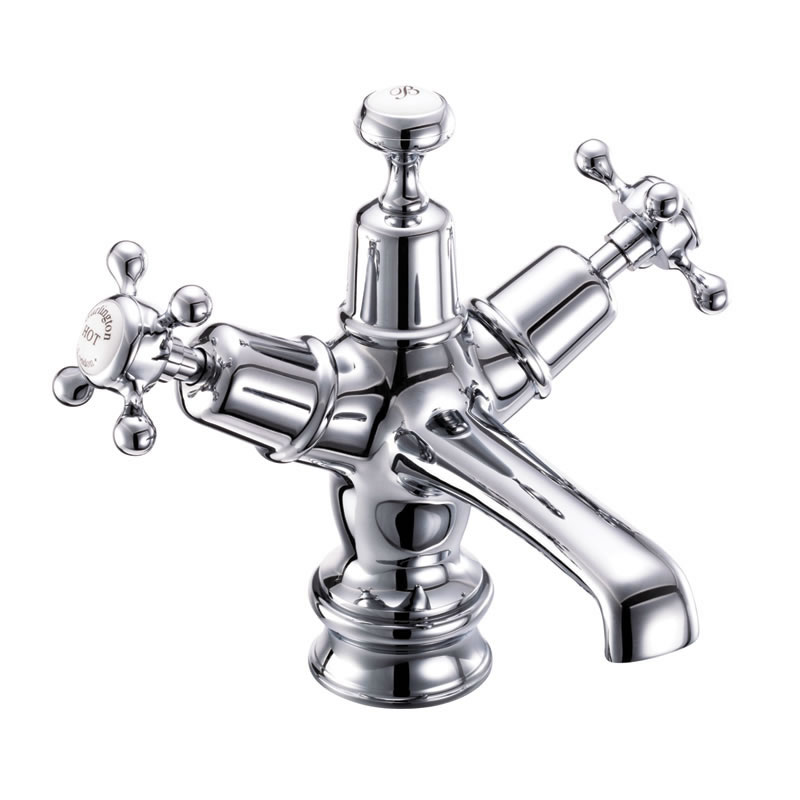

Claremont basin mixer with click-clack waste Standard base Claremont Regent basin mixer with click clack waste Regent base
Waste options
clickclack.jpg with click-clack waste Claremont basin mixer with pop-up waste with pop-up waste Claremont basin mixer with plug and chain waste with plug & chain
Indicies & lever finish

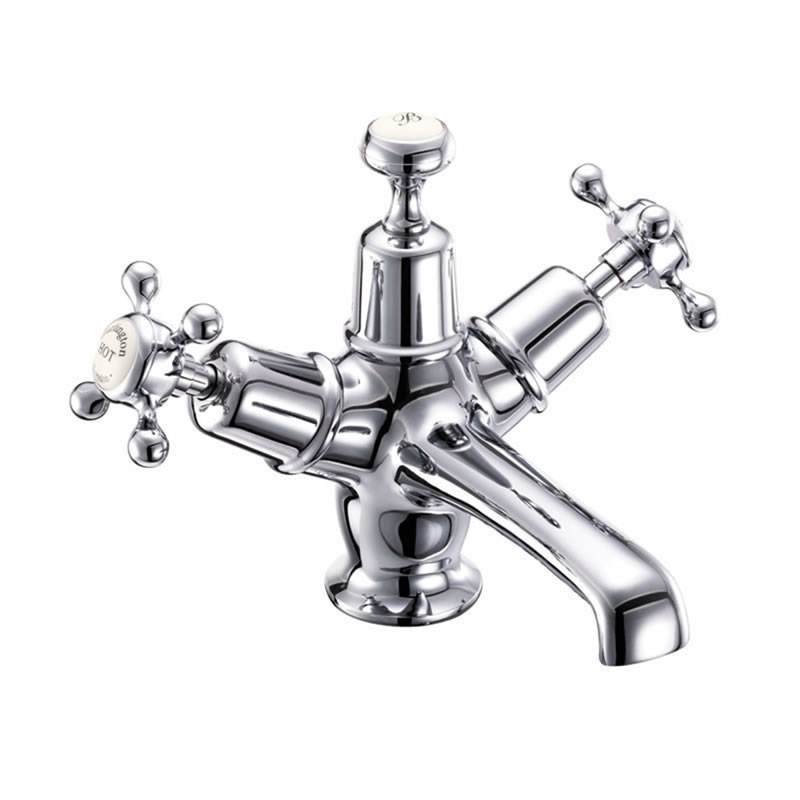

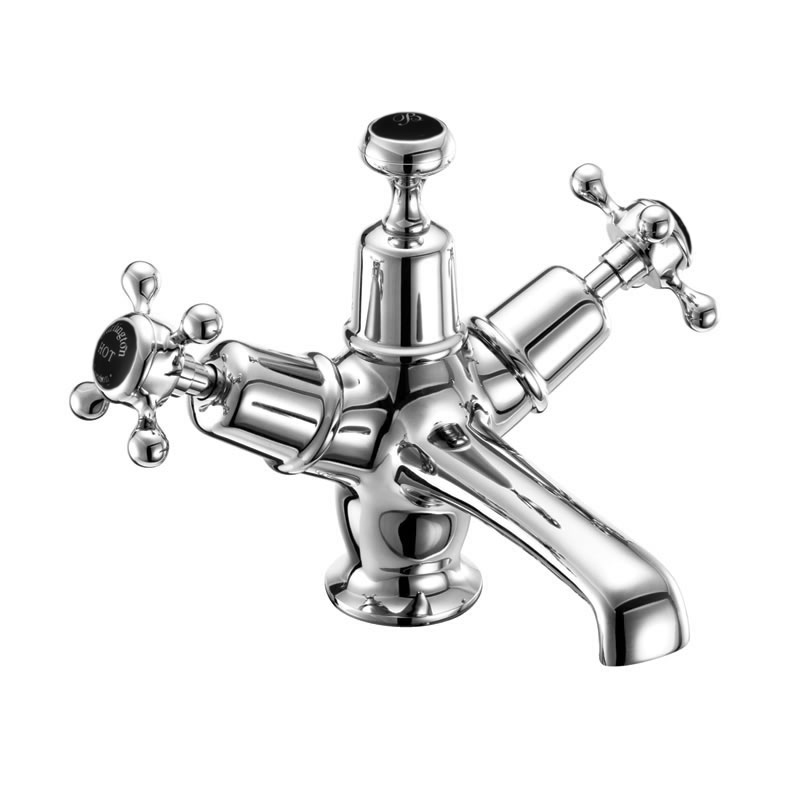

Claremont basin mixer with click-clack waste White Claremont Medici basin mixer with click-clack waste Medici Claremont basin mixer with click-clack waste Black
Alternate Text

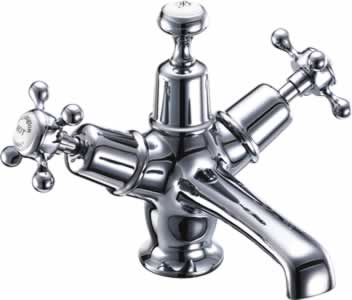

As Shown
T12 Basin mixer
W11 Click-clack basin waste
T1 Claremont tap handles
CL6  -  Combined product code
Colour
T12 - tap - Polished Chrome
W11 - waste - Polished Chrome
T1 - tap handle - Polished Chrome
Material
T12 - tap - Brass
W11 - waste - Brass
T1 - tap handle - Brass
Size
T12 - 166 x 159 x 152mm
W11 - 61 x 61 x 78mm
T1 - 65 x 65 x 28mm
Nett Weight
T12 - tap - 1.63kg
W11 - waste - 0.23kg
T1 - tap handle - 0.15kg
Gross Weight Including Packaging
T12 - tap - 1.98kg
W11 - waste - 0.27kg
T1 - tap handle - 0.17kg
Packed Dimension
T12 - 335 x 285 x 180 = 0.0172 m3
W11 - 110 x 70 x 70 = 0.0005 m3
T1 - 60 x 60 x 62 = 0.0002 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 12  13.2  15.2  19.4  21.4  n/a  n/a
Spout (aerator) 4.5  7.8  8.7  9.8  12  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1726 back bottom washer for SP28
SP1189 black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP480 click clack part for all finishes products of W11, W22
SP133 connector for horizontal control rod
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP150 DECORATIVE HEAD &POP-UP CONTROL ROD-T12
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP31 T12 1, 2 full turn cartridge
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1245 the cover for W11
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
SP171 W11 decorative covers
SP223 washer for all finishes products of W11, W22
SP151 waste for T12
Downloads
  • Instructions - PDF - T12 (English)
  • Instructions - PDF - W11 (English)
  • Instructions - PDF - T12 (French)
  • Instructions - PDF - W11 (French)
  • 3D RFA BIMM Objects - File - RFA  -  CL6 (T12_T1_W11.rfa)
  • 3D IGS - File - IGS - T1 (T1.igs)
  • 3D DWG - File - DWG - T12 (T12.dwg)
  • 3D DXF - File - DXF - T12 (T12.dxf)
  • 3D IGS - File - IGS - T12 (T12.igs)
  • 3D IGS - File - IGS - W11 (W11 basin waste.igs)
  • Lifestyle image 1 - tiff
    jpg
  • Lifestyle image 2 - tiff
    jpg
  • Lifestyle image 3 - tiff
    jpg
  • Product image 1 - jpg
  • Product image 2 - jpg
  • Product image 3 - tiff jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
