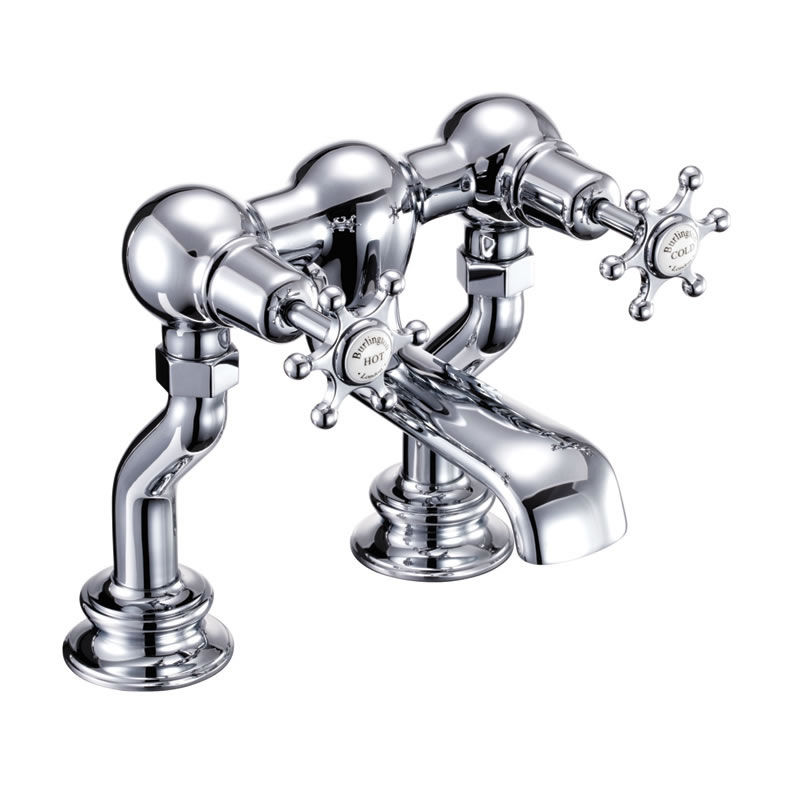

Burlington bath filler deck mounted
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
quarter turn
|
tradional screw-down
|

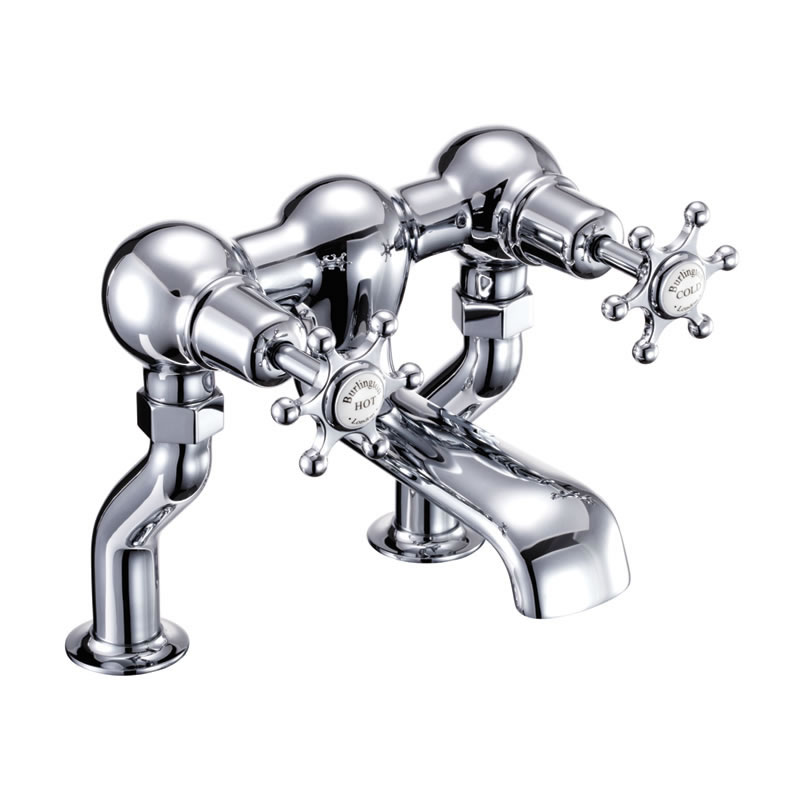

Standard base
|

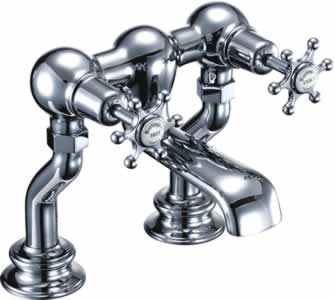

Regent base
|
|
White
|
Medici
|
Black
|
As Shown
| T10 Bath filler |
| T18 Deck mounting unions |
| T3 Birkenhead tap handles |
| T4A Regent large pair of tap bases |
| BIR23 - Combined product code |
Colour
| T10 - tap - Polished Chrome |
| T18 - accessories - Polished Chrome |
| T3 - tap handle - Polished Chrome |
| T4A - regent tap base - Polished Chrome |
Material
| T10 - tap - Brass |
| T18 - accessories - Brass |
| T3 - tap handle - Brass |
| T4A - regent tap base - Brass |
Nett Weight
| T10 - tap - 1.88kg |
| T18 - accessories - 0.94kg |
| T3 - tap handle - 0.175kg |
| T4A - regent tap base - 0.4kg |
Gross Weight Including Packaging
| T10 - tap - 2.29kg |
| T18 - accessories - 1.09kg |
| T3 - tap handle - 0.2kg |
| T4A - regent tap base - 0.5kg |
Packed Dimension
| T10 - 252 x 222 x 126 = 0.007 m3 |
| T18 - 235 x 150 x 60 = 0.0021 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
| T4A - 76 x 76 x 70 = 0.0004 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 21 | 21.7 | 24.2 | 26.5 | 28 | n/a | n/a |
| Spout (aerator) | 5.4 | 10.3 | 11.5 | 13.6 | 15.5 | n/a | n/a |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP1480 | inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
Downloads
-
2D CAD-File - DWG -
BIR23
(BIR23_LD.dwg)
-
2D Drawing - PDF -
BIR23
(BIR23_LD.pdf)
2D Drawing - PDF - BIR23
-
3D RFA BIMM Objects - File - RFA
-
BIR23
(T10_T18_T3_T4A.rfa)
- 3D IGS - File - IGS - T18 (t18.igs)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D DWG - File - DWG - T4A (T4A.dwg)
- 3D DXF - File - DXF - T4A (T4A.dxf)
- 3D IGS - File - IGS - T4A (T4A.igs)
- 3D IGS - File - IGS - T10 (t10.igs)
