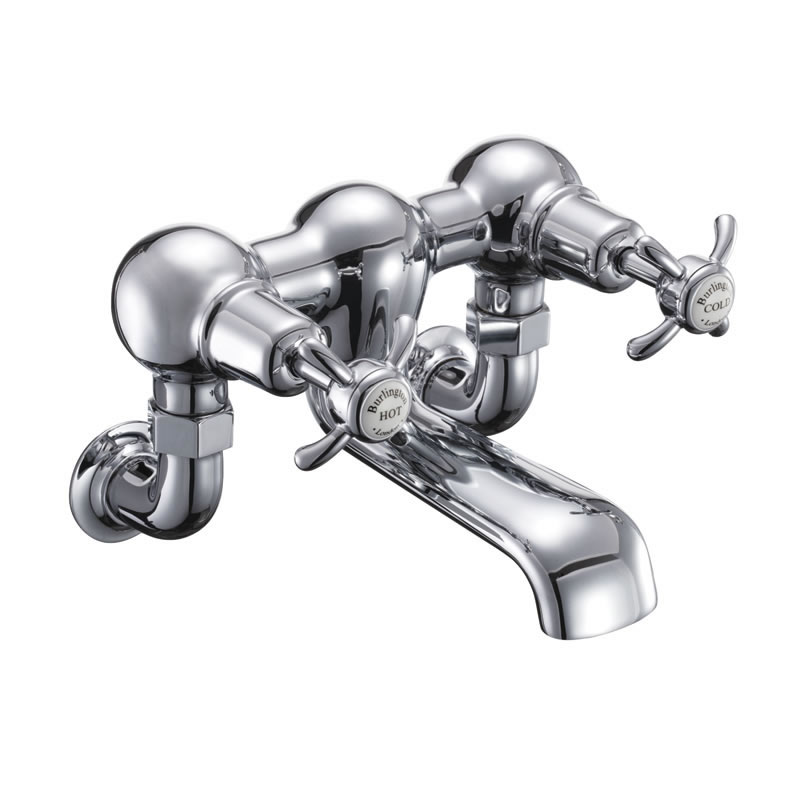

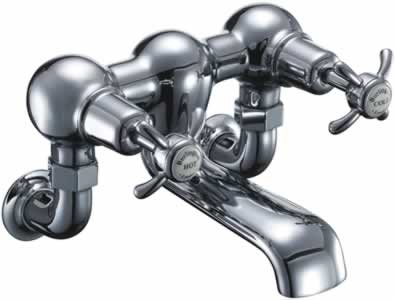

Burlington bath filler wall mounted
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont bath filler - wall mounted Claremont AngleseyTapHead.jpg Anglesey Birkenhead bath filler - wall mounted Birkenhead
Quarter turn options
Anglesey bath filler - wall mounted quarter turn full_done.jpg tradional screw-down
Tap Base options

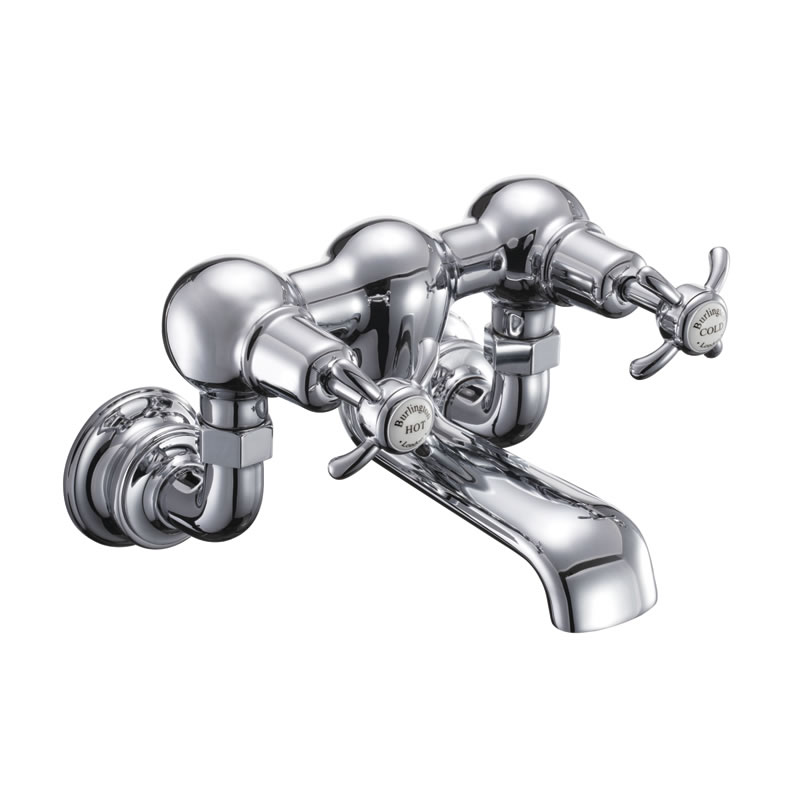

Anglesey bath filler - wall mounted Standard base Anglesey Regent bath filler - wall mounted Regent base
Indicies & lever finish
Anglesey bath filler - wall mounted White Anglesey Medici bath filler - wall mounted Medici Anglesey bath filler - wall mounted Black
Alternate Text
As Shown
T10 Bath filler
T17-2 Wall mounting unions
T2 Anglesey tap handles
AN24  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 21  21.7  24.2  26.5  28  n/a  n/a
Spout (aerator) 5.4  10.3  11.5  13.6  15.5  n/a  n/a
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1480 inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722 o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1721 thread pipe (1 piece) for T17, T17-2
