Welcome to the Bathroom Brands Technical Whitebook


Burlington bidet mixer with high central indice with pop-up waste
Birkenhead bidet mixer with pop-up waste
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont bidet mixer with pop-up waste Claremont Anglesey bidet mixer with pop-up waste Anglesey Ceramic Tap Hand_T1_PAGE71_PAGE73.jpg Birkenhead Kensington bidet mixer with pop-up waste Kensington
Tap Base options

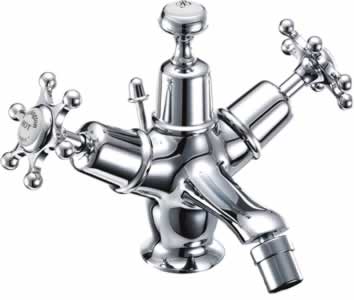

Birkenhead bidet mixer with pop-up waste Standard base
Indicies & lever finish

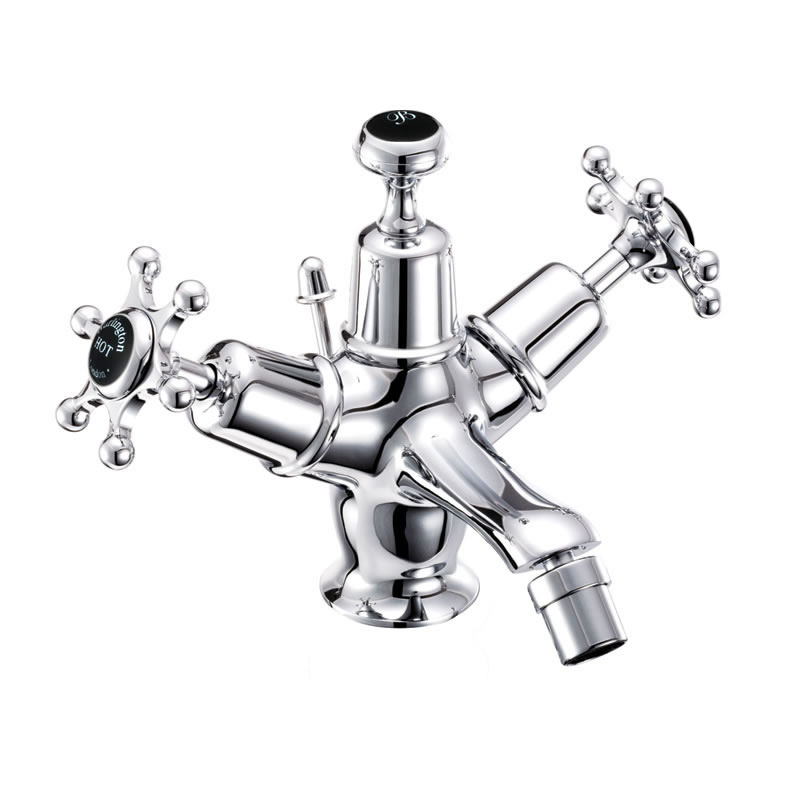

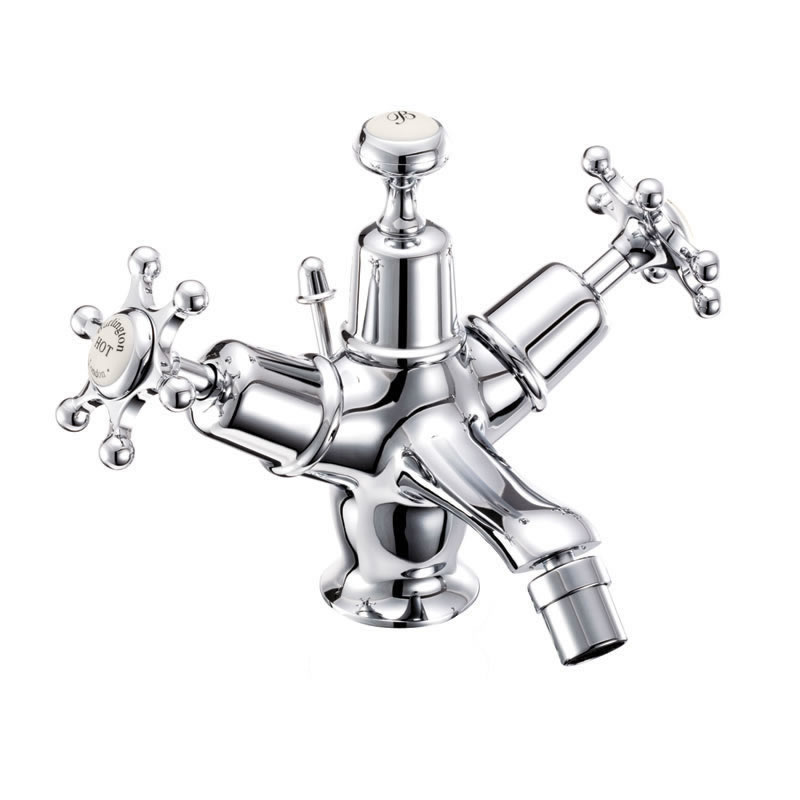

Birkenhead bidet mixer with pop-up waste White Birkenhead Medici bidet mixer with pop-up waste Medici Birkenhead bidet mixer with pop-up waste Black
Alternate Text
As Shown
T15 Bidet mixer with pop up
T3 Birkenhead tap handles
BI13  -  Combined product code
Gross Weight Including Packaging
T15 - tap - 2.22kg
T3 - tap handles - 0.21kg
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
T15  -  UK Compliant
T3  -  WRAS Not Applicable
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.3  15.2  16.9  19.4  20.7  n/a  n/a
Spout (aerator) 3.8  5.3  7.3  8.3  10.5  n/a  n/a
SP523 bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP934 decorative head of product T16, T16-QT, T15, T15-QT
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29 T13, T15 1, 2 full turn cartridge
SP942 tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1125 the nozzle for T15, T15-QT, CH23
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Saved
Product name:
Birkenhead bidet mixer with pop-up waste
