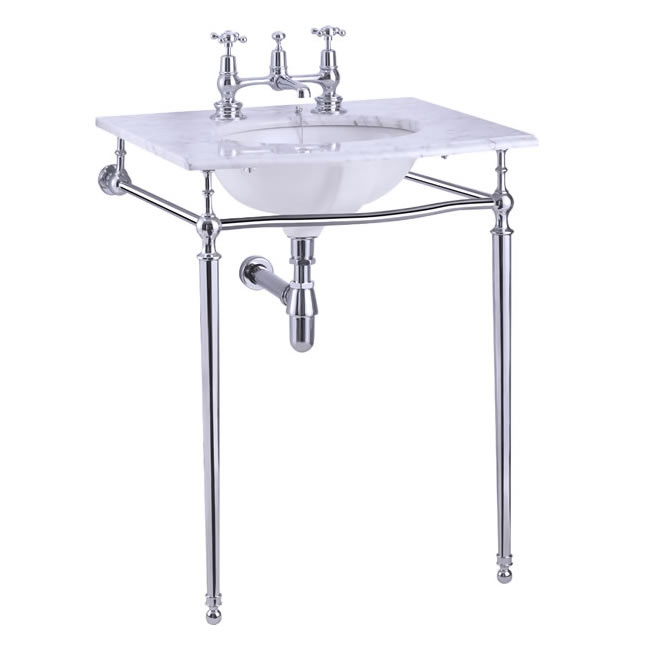

Georgian 58cm marble top
Product Options
stand options
wash stand options
shelf options
|
with wash stand
|
with aluminium stand: brushed
|
with aluminium stand: black
|
with aluminium stand: white
|
|
chrome stand
|
gold stand
|
|
no optional shelf
|
As Shown
| G1 2TH − |
| T49ACHR − |
Tap Hole Options
| 1,2 or 3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr |
Additional Information
|
Please note that when ordering the basin in a 2TH option it will be supplied with a small chain stay hole for the plug and chain |
|
This product is provided with splashbacks and sides in the same box. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP848 | inner box of product T23A CHR, T49A CHR |
| SP1709 | leg for Burlington basin stand T49A CHR, T52 CHR |
| SP225 | rubber washer for basin stands |
Downloads
- Instructions - PDF - G1 2TH (English)
- Instructions - PDF - T49ACHR (English)
- Instructions - PDF - (French)
- Instructions - PDF - (French)
-
2D CAD-File - DWG -
G1 2TH T49A CHR
(G1 2TH T49A CHR_LD.dwg)
-

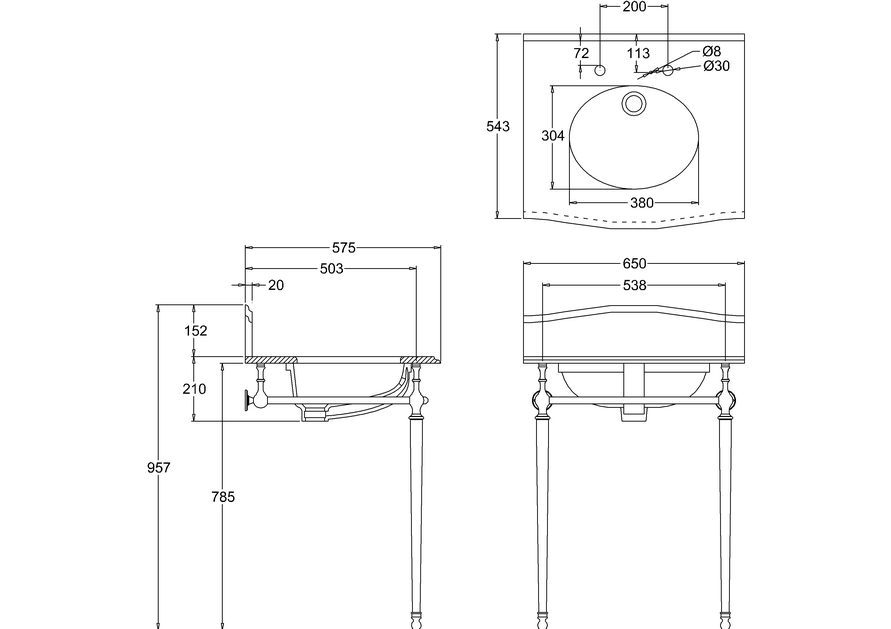

2D Drawing - PDF -
G1 2TH T49A CHR
(G1 2TH T49A CHR_LD.pdf)
2D Drawing - PDF - G1 2TH T49A CHR
-
3D DWG - File - DWG
-
G1 2TH T49A CHR
(2929.dwg)
-
3D DXF - File - DXF
-
G1 2TH T49A CHR
(2929.dxf)
-
3D IGS - File - IGS
-
G1 2TH T49A CHR
(2929.igs)
-
3D RFA BIMM Objects - File - RFA
-
G1 2TH T49A CHR
(2929.rfa)
