Welcome to the Bathroom Brands Technical Whitebook


Hinged doors with in-line panels
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes

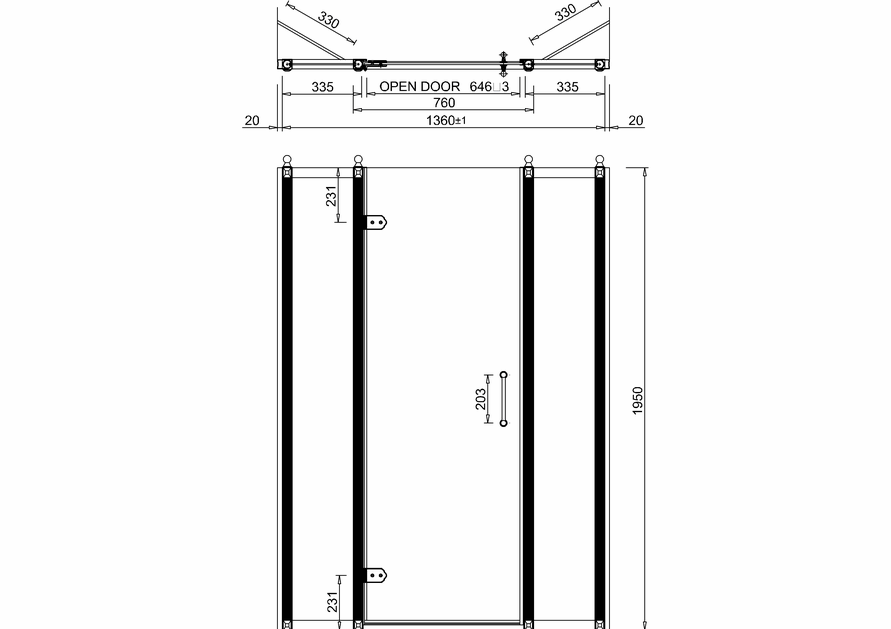

Hinged door 80cm & 20cm in-line panel 80cm (A), 20cm (B) Hinged door 80cm & 30cm in-line panel 80cm (A), 30cm (B) Hinged door 80cm & 40cm in-line panel 80cm (A), 40cm (B) hinged_door_and_inline_option.jpg 80cm (A), 30cm (B)
Hinged door 90cm & 2x30cm in-line panel 90cm (A), 30cm (B) Hinged door 80cm & 2x40cm in-line panel 80cm (A), 40cm (B) Hinged door 90cm & 2x40cm in-line panel 90cm (A), 40cm (B)
Alternate Text

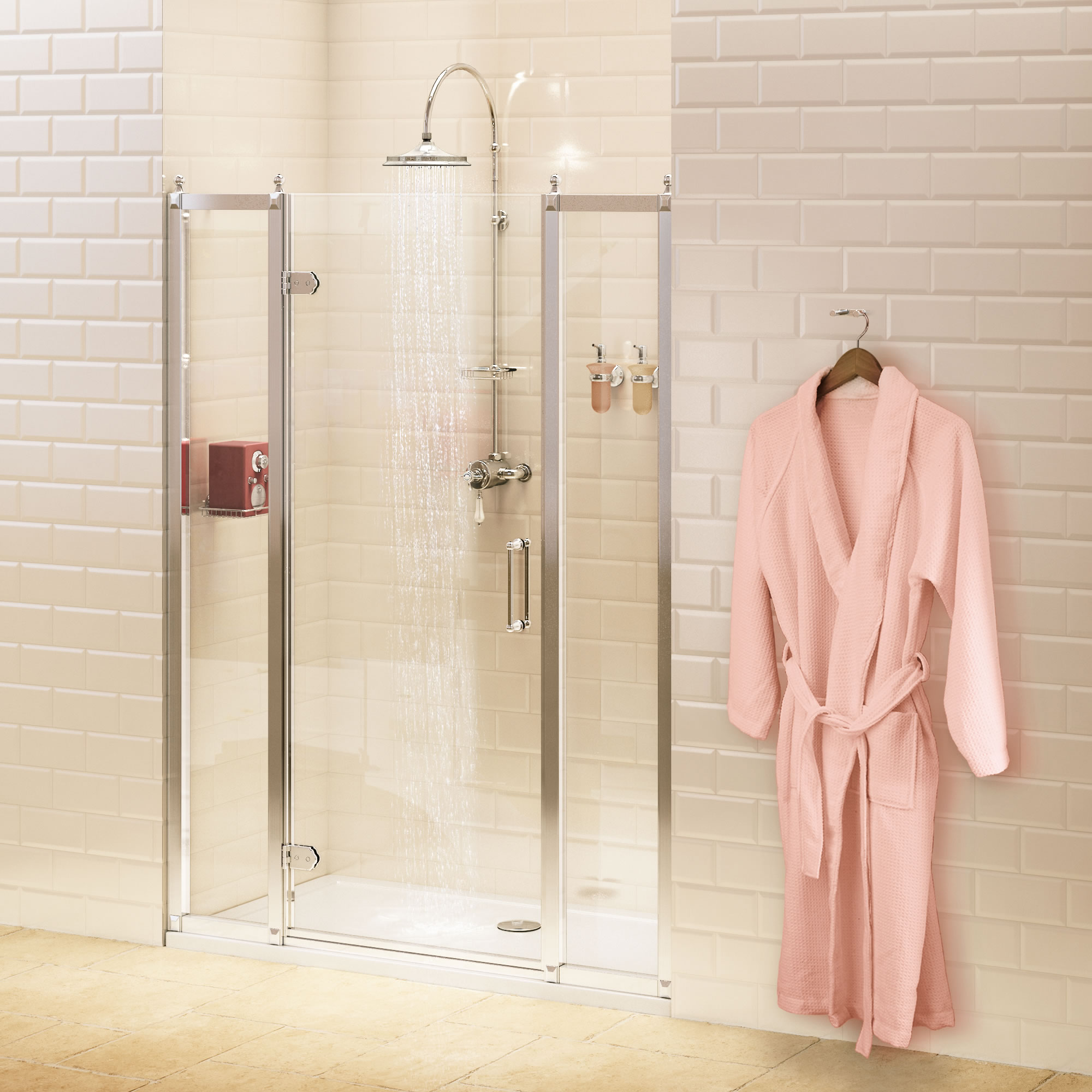

As Shown
C20 800mm hinged door
C16 300mm inline panel
BU7  -  Combined product code
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN14428:2015
BS EN 12150-1:2015
Additional Information
Hinged door opens outwards only
Safety glass with 3M™ Easy Clean Coating
Hinged door 8mm glass, in-line panel 6mm glass
SP938 adjustable profile of product C19, C20, C21
SP471 bottom door frame B020 for C20 (excluding the sealing strip)
SP61 bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP318 burlington Bottom profile of hinge door C19, C20, C21
SP912 hinge of product C19, C20, C21, C9, C10
SP1687 hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21,
SP53 hinged Door Spare Kit
SP59 inline Panel Spare Kit
SP431 part B011 for C19, C20, C21
SP982 seal on the hinged side of the door for product C19, C20, C21
SP242 side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP407 support bar for C16, C17, C23 (B032, L=330mm)
SP921 top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
SP426 vertical seal for C19, C20, C21(B017)
