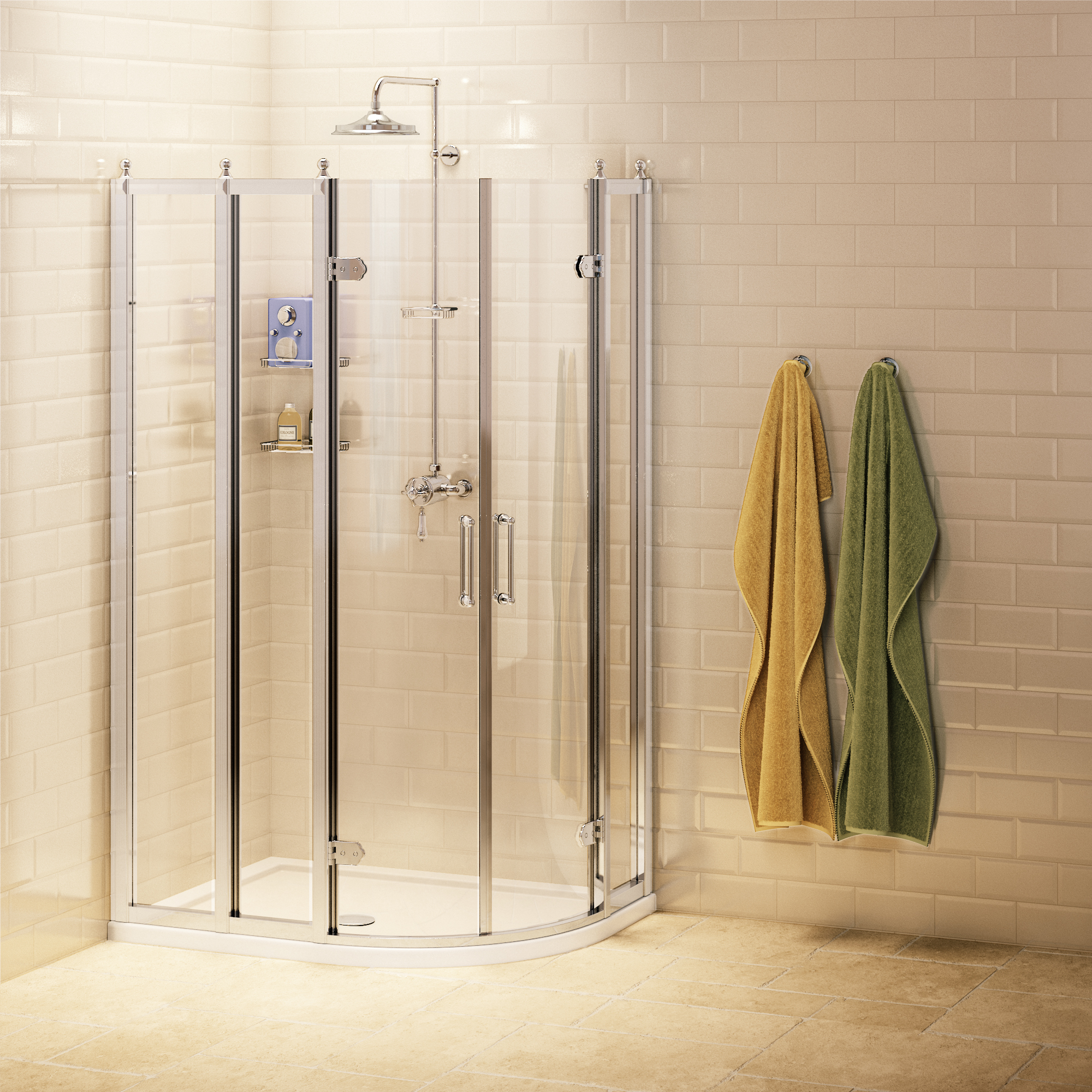

OffSet Quadrants

Sizes

80cm (D), 20cm (B)

90cm (D), 30cm (B)

80cm (D), 40cm (B)

As Shown

C23A 900 x 900 Quadrant door BOX A ONLY

C16 300mm inline panel

C23B 900 x 900 Quadrant door BOX B ONLY

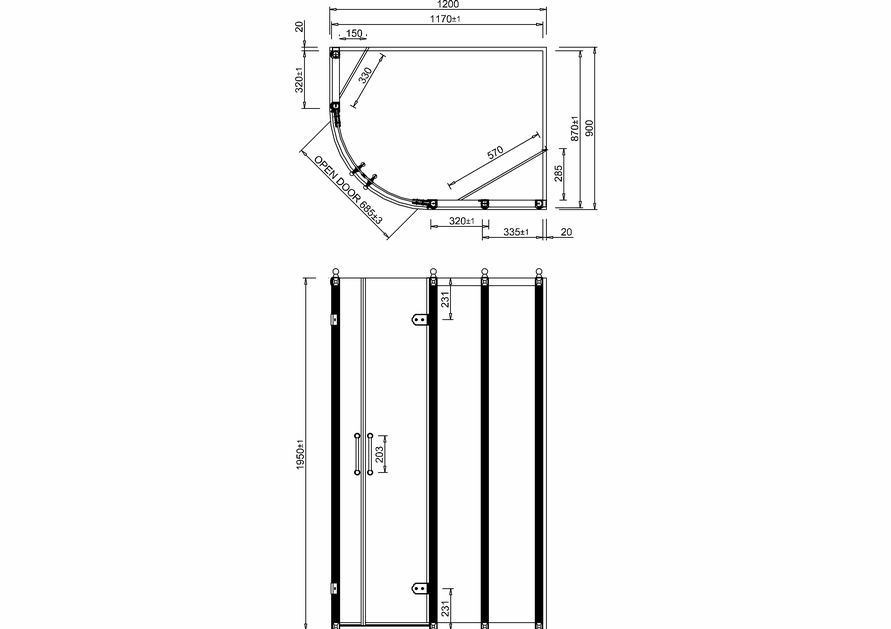

BU42 - Combined product code

Colour

C23A - door - Polished Aluminum

C16 - inline panel - Polished Aluminum

C23B - door - Polished Aluminum

Material

Size

Nett Weight

Gross Weight Including Packaging

Packed Dimension

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

Quadrant door 8mm glass, in-line panel 6mm glass

Safety glass with 3M™ Easy Clean Coating

SP124	aluminium frame, 2 x hinges and screws for C22 & C23 (Left version)
SP241	base rail - B037 for C23, C22
SP61	bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP1688	hinge screws for Burlington shower enclosure C22, C23
SP59	inline Panel Spare Kit
SP549	magnetic stripe for left moving door of C23
SP1023	right door of C22, C23
SP242	side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP55	slider Door Spare Kit
SP407	support bar for C16, C17, C23 (B032, L=330mm)
SP1221	the black magnetic strips for Burlington quadrant C22, C23, L=1902mm
SP921	top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
