Sliding doors
Product Options
Sizes
110cm (A)
|
120cm (A)
|
140cm (A)
|
120cm (A), 30cm (B)
|
140cm (A), 20cm (B)
|
140cm (A), 30cm (B)
|

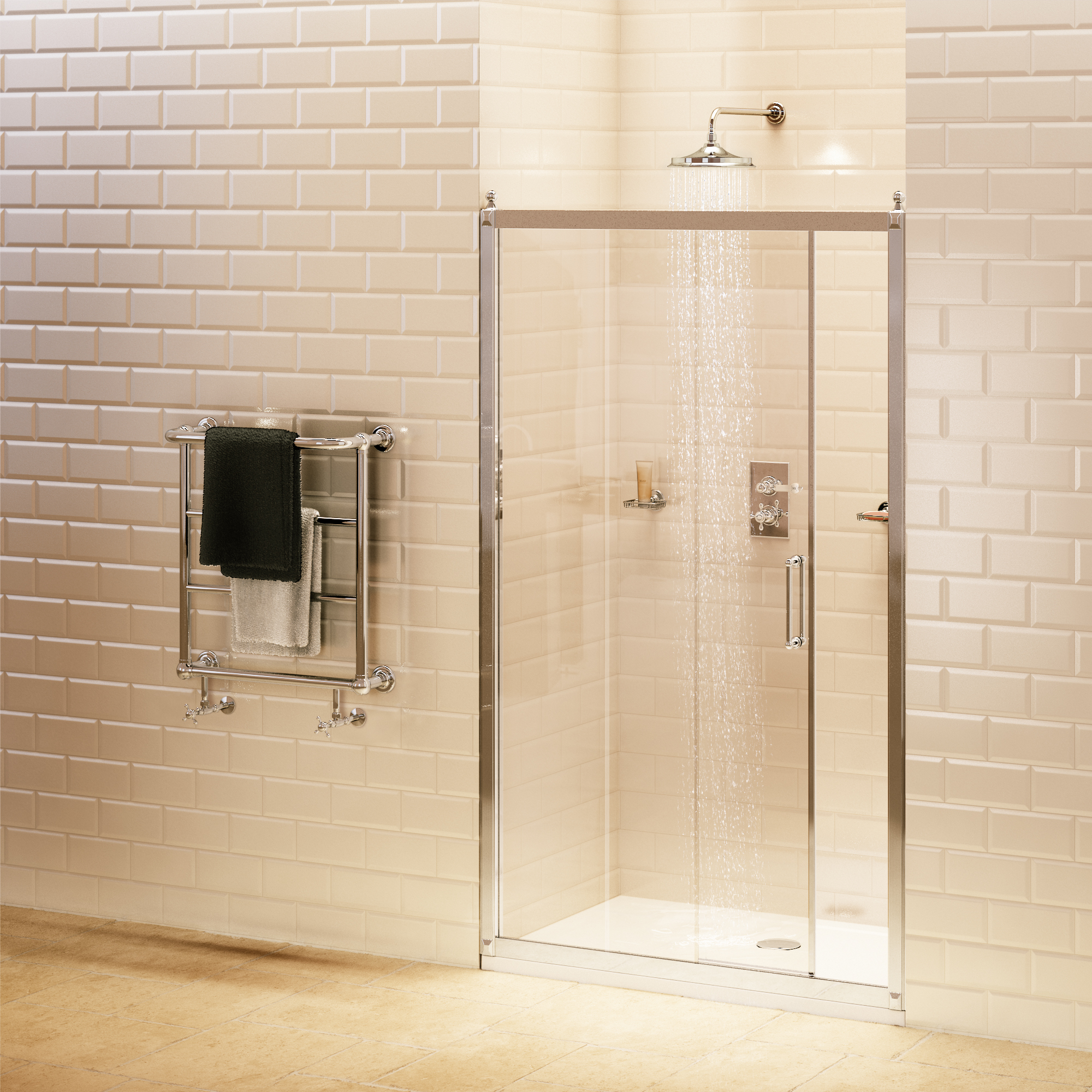

As Shown
| C7S 1200mm soft close slider |
| C16 300mm inline panel |
| BU71 - Combined product code |
Nett Weight
| C7S - door - 42.5kg |
| C16 - inline panel - 11.1kg |
Gross Weight Including Packaging
| C7S - door - 49kg |
| C16 - inline panel - 13.7kg |
Packed Dimension
| C7S - 2010 x 1225 x 90 = 0.2216 m3 |
| C16 - 2010 x 395 x 87 = 0.0691 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Slider door 8mm glass, fix panel and in-line panel 6mm glass |
|
Safety glass with 3M™ Easy Clean Coating |
| SP94 | 4 runners (one set) for slider C6S, C7S, C8S. |
| SP885 | bottom sealing strip of fixed panel for product C6S, C7S, C8S |
| SP514 | decorative cap for C6S, C7S, C8S (B047) |
| SP59 | inline Panel Spare Kit |
| SP1116 | magnetic strip B108 for C8S, C6S, C7S (L=1896, 1930) |
| SP1381 | moving glass for C7S including magnetic strip |
| SP477 | part BO46 for C6S, C7S, C8S |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP129 | soft Close Mechanism |
| SP407 | support bar for C16, C17, C23 (B032, L=330mm) |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP1774 | vertical seal B042 for Burlington slider C6S, C7S, C8S fixed panel |
| SP358 | waterproof Strip L=1916mm for C7S (code B043) |
Downloads
- Instructions - PDF - C7S (English)
- Instructions - PDF - C16 (English)
- Instructions - PDF - C7S (French)
- Instructions - PDF - C16 (French)
-
2D CAD-File - DWG -
BU71
(BU71_LD.dwg)
-

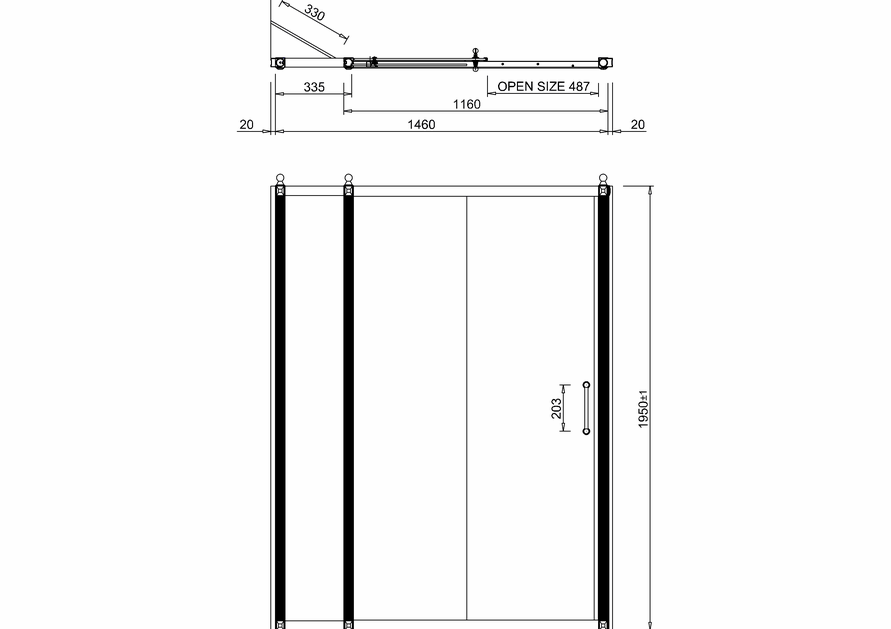

2D Drawing - PDF -
BU71
(BU71_LD.pdf)
2D Drawing - PDF - BU71
