Fine S40 600 basin
Product Options
Pedestal options
with round fronted pedestal
|
with round fronted semi pedestal
|
with square fronted pedestal
|
with square fronted semi pedestal
|
As Shown
| 40.1973 600mm Fine washbasin |
| SP.1033 Round semi pedestal |
Nett Weight
| 40.1973 - basin - 19kg |
| SP.1033 - pedestal - 5.6kg |
Gross Weight Including Packaging
| 40.1973 - basin - 21.2kg |
| SP.1033 - pedestal - 6.44kg |
Tap Hole Options
| 1 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Compatible Products
| W11 - Click-Clack Basin Waste (slotted) |
| W18 - Flip Top Basin Waste (slotted) |
| SP96 | fixing for Semi Pedestal |
Downloads
-
2D CAD-File - DWG -
SP.1033 40.1973
(SP.1033 40.1973_LD.dwg)
-

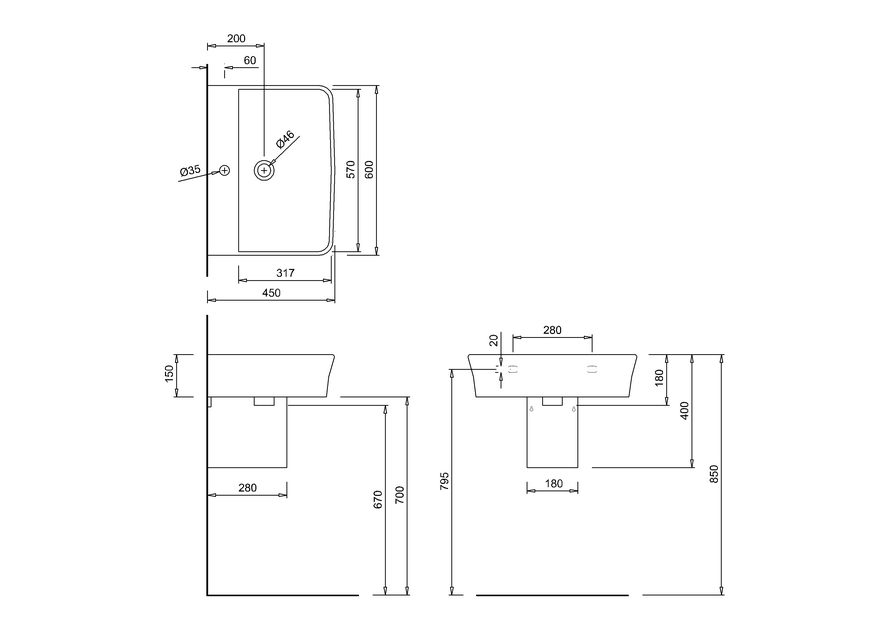

2D Drawing - PDF -
SP.1033 40.1973
(SP.1033 40.1973_LD.pdf)
2D Drawing - PDF - SP.1033 40.1973
-
3D DWG - File - DWG
-
SP.1033 40.1973
(3592.dwg)
-
3D DXF - File - DXF
-
SP.1033 40.1973
(3592.dxf)
-
3D IGS - File - IGS
-
SP.1033 40.1973
(3592.igs)
