Curve S30 500 basin
Product Options
Pedestal options
with round fronted pedestal
|
with round fronted semi pedestal
|
with square fronted pedestal
|
with square fronted semi pedestal
|
As Shown
| 30.1967 500mm Curve washbasin |
| SP.1979 Square semi pedestal |
Nett Weight
| 30.1967 - basin - 15.4kg |
| SP.1979 - pedestal - 6.37kg |
Gross Weight Including Packaging
| 30.1967 - basin - 17.4kg |
| SP.1979 - pedestal - 7.47kg |
Tap Hole Options
| 1 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Compatible Products
| W11 - Click-Clack Basin Waste (slotted) |
| W18 - Flip Top Basin Waste (slotted) |
Downloads
-
2D CAD-File - DWG -
30.1967 SP.1979
(30.1967 SP.1979_LD.dwg)
-

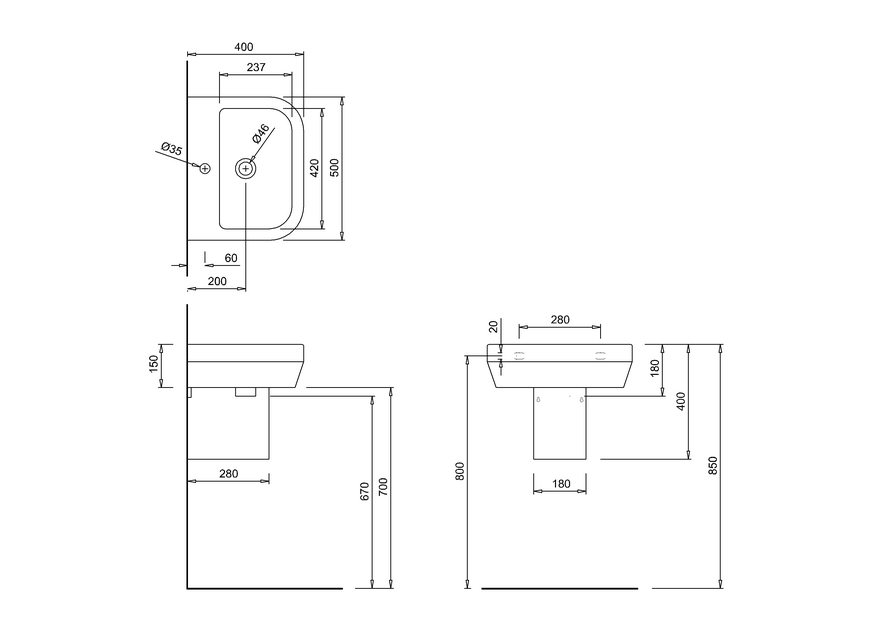

2D Drawing - PDF -
30.1967 SP.1979
(30.1967 SP.1979_LD.pdf)
2D Drawing - PDF - 30.1967 SP.1979
-
3D DWG - File - DWG
-
30.1967 SP.1979
(3702.dwg)
-
3D DXF - File - DXF
-
30.1967 SP.1979
(3702.dxf)
-
3D IGS - File - IGS
-
30.1967 SP.1979
(3702.igs)
