EcoCurve Showering bath
Product Options
Bath size options
left hand
|
right hand
|
As Shown
| R16 EcoCurve bath RH |
Colour
| R16 - bath - Gloss White |
Material
| R16 - bath - Acrylic |
Nett Weight
| R16 - bath - 25kg |
Gross Weight Including Packaging
| R16 - bath - 25.6kg |
Packed Dimension
| R16 - 1710 x 760 x 450 = 0.5848 m3 |
Bath water capacity
| 133 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R16F - EcoCurve Front Panel |
| R16E - EcoCurve End Panel |
| BS6 - EcoCurve bathscreen |
| CW8 - Click-clack bath waste |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
Downloads
-
2D CAD-File - DWG -
R16
(R16.dwg)
-

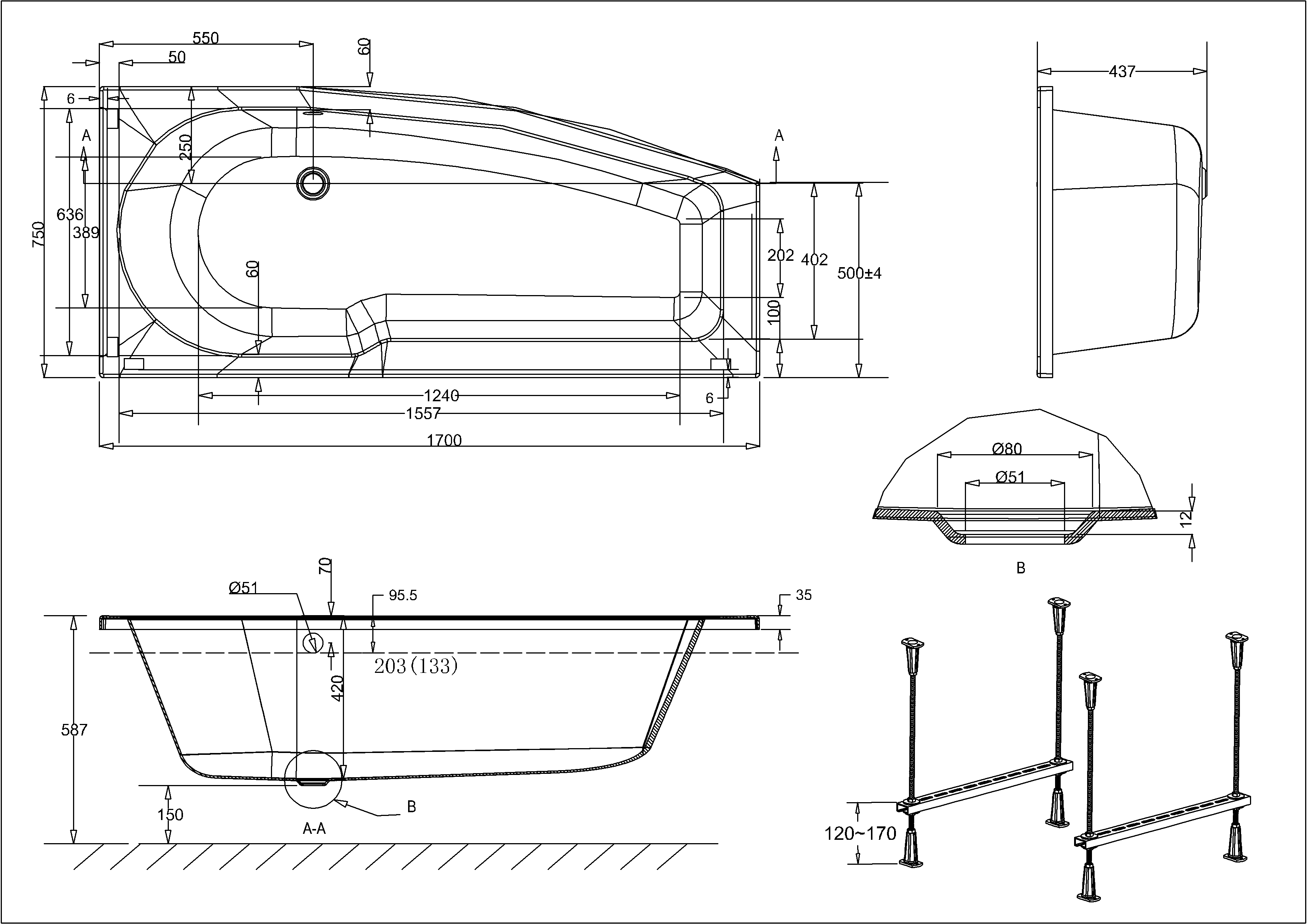

2D Drawing - PDF -
R16
(R16.pdf)
2D Drawing - PDF - R16
-
3D DWG - File - DWG
-
R16
(BS-1695R_1.dwg)
-
3D DXF - File - DXF
-
R16
(BS-1695R_1.dxf)
-
3D IGS - File - IGS
-
R16
(BS-1695R_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R16
(R16.rfa)
