ClearGreen Baths - EcoRound Baths
Product Options
Bath size options
left hand
|
right hand
|
As Shown
| R22 − |
Bath water capacity
| 130 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R22F - EcoRoundFront Panel 170cm |
| R20E - EcoRound End Panel |
| BS7 - EcoRound bathscreen |
| CW8 - Click-clack bath waste |
| SP232 | leg sets for EcoSquare, EcoRound baths |
Downloads
-
2D CAD-File - DWG -
R22
(R22.dwg)
-

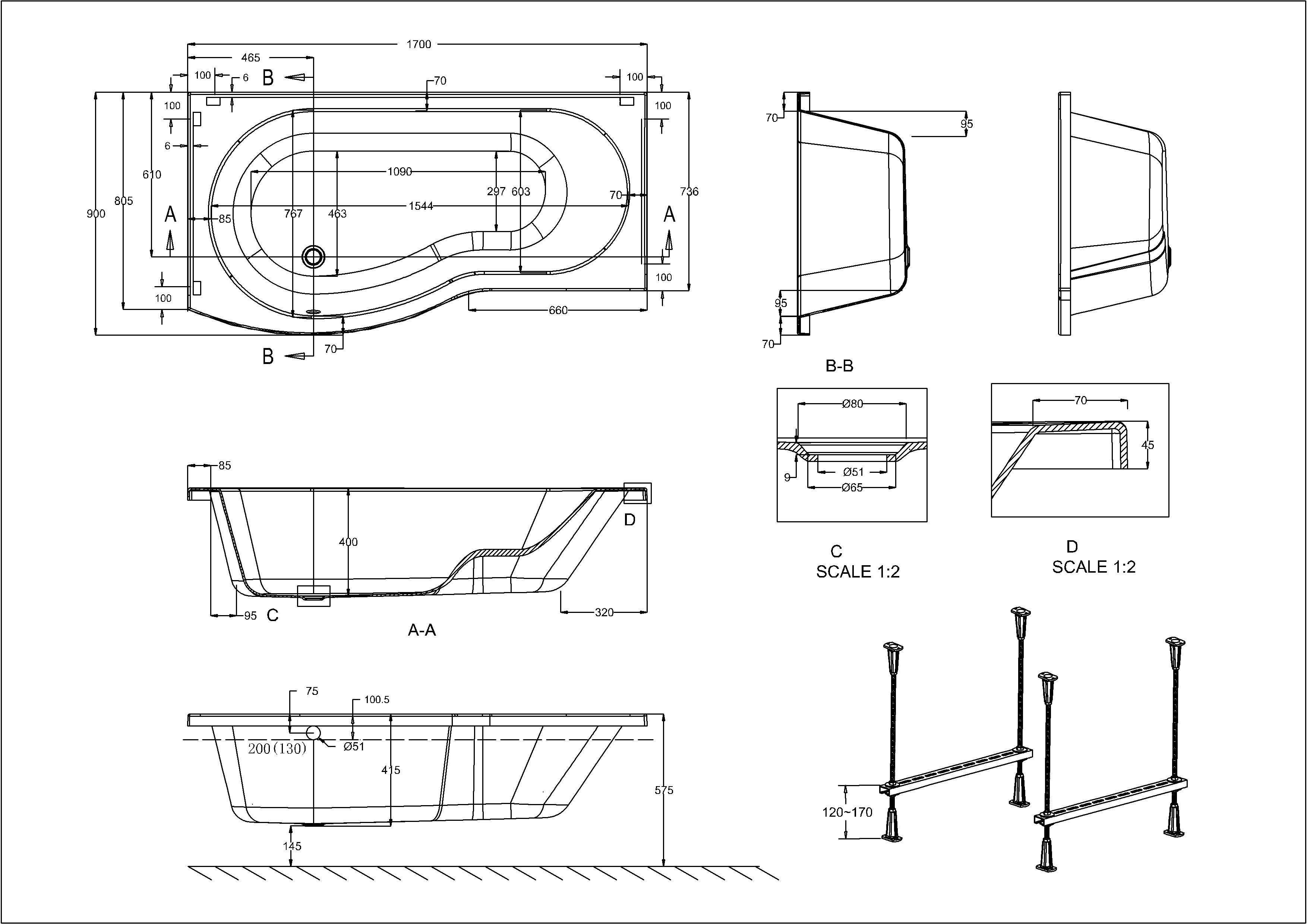

2D Drawing - PDF -
R22
(R22.pdf)
2D Drawing - PDF - R22
-
3D DWG - File - DWG
-
R22
(BS-1792H_R_1.dwg)
-
3D DXF - File - DXF
-
R22
(BS-1792H_R_1.dxf)
-
3D IGS - File - IGS
-
R22
(BS-1792H_R_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R22
(R22.rfa)
