EcoSquare Showering Bath
Product Options
Bath size options
left hand
|
right hand
|
As Shown
| R18 EcoSquare bath RH |
Colour
| R18 - bath - Gloss White |
Material
| R18 - bath - Acrylic |
Nett Weight
| R18 - bath - 31.7kg |
Gross Weight Including Packaging
| R18 - bath - 32.3kg |
Packed Dimension
| R18 - 1710 x 860 x 450 = 0.6618 m3 |
Bath water capacity
| 165 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R18F - EcoSquare Front Panel |
| R27E - End bath panel 700 |
| BS8L - EcoSquare bathscreen left with access panel |
| CW8 - Click-clack bath waste |
| SP232 | leg sets for EcoSquare, EcoRound baths |
Downloads
-
2D CAD-File - DWG -
R18
(R18.dwg)
-

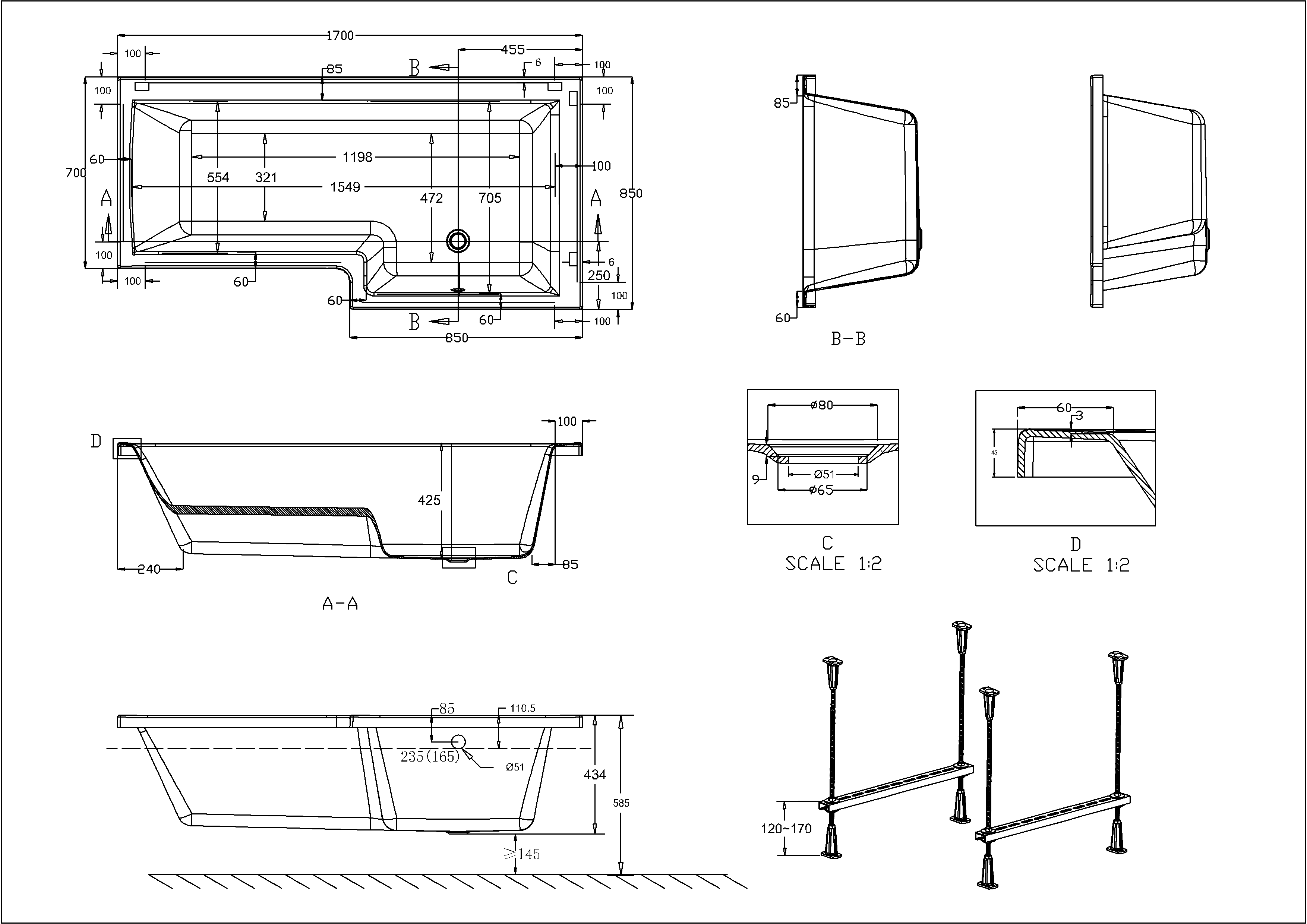

2D Drawing - PDF -
R18
(R18.pdf)
2D Drawing - PDF - R18
-
3D DWG - File - DWG
-
R18
(BS-1786R.dwg)
-
3D DXF - File - DXF
-
R18
(BS-1786R.dxf)
-
3D IGS - File - IGS
-
R18
(BS-1786R.igs)
-
3D RFA BIMM Objects - File - RFA
-
R18
(R18.rfa)
-

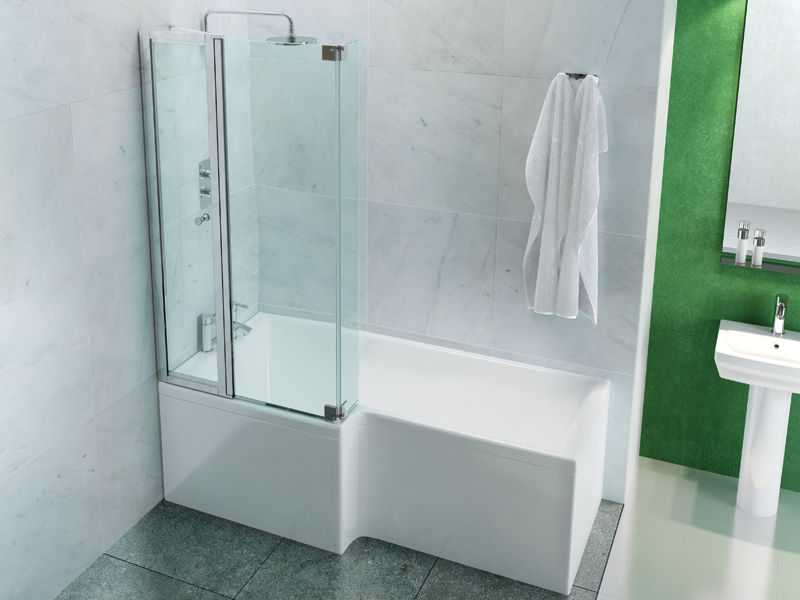

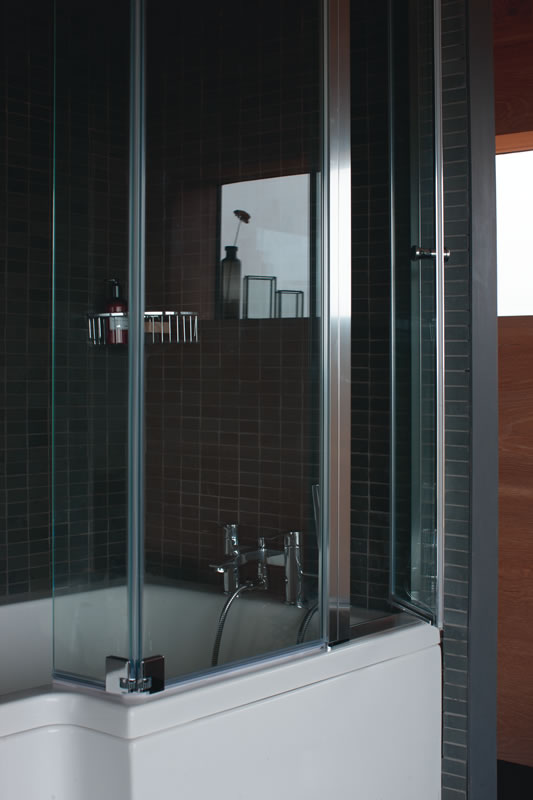

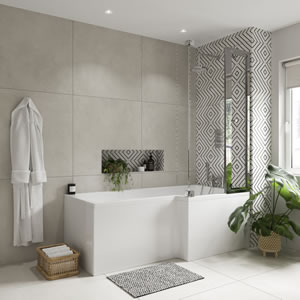

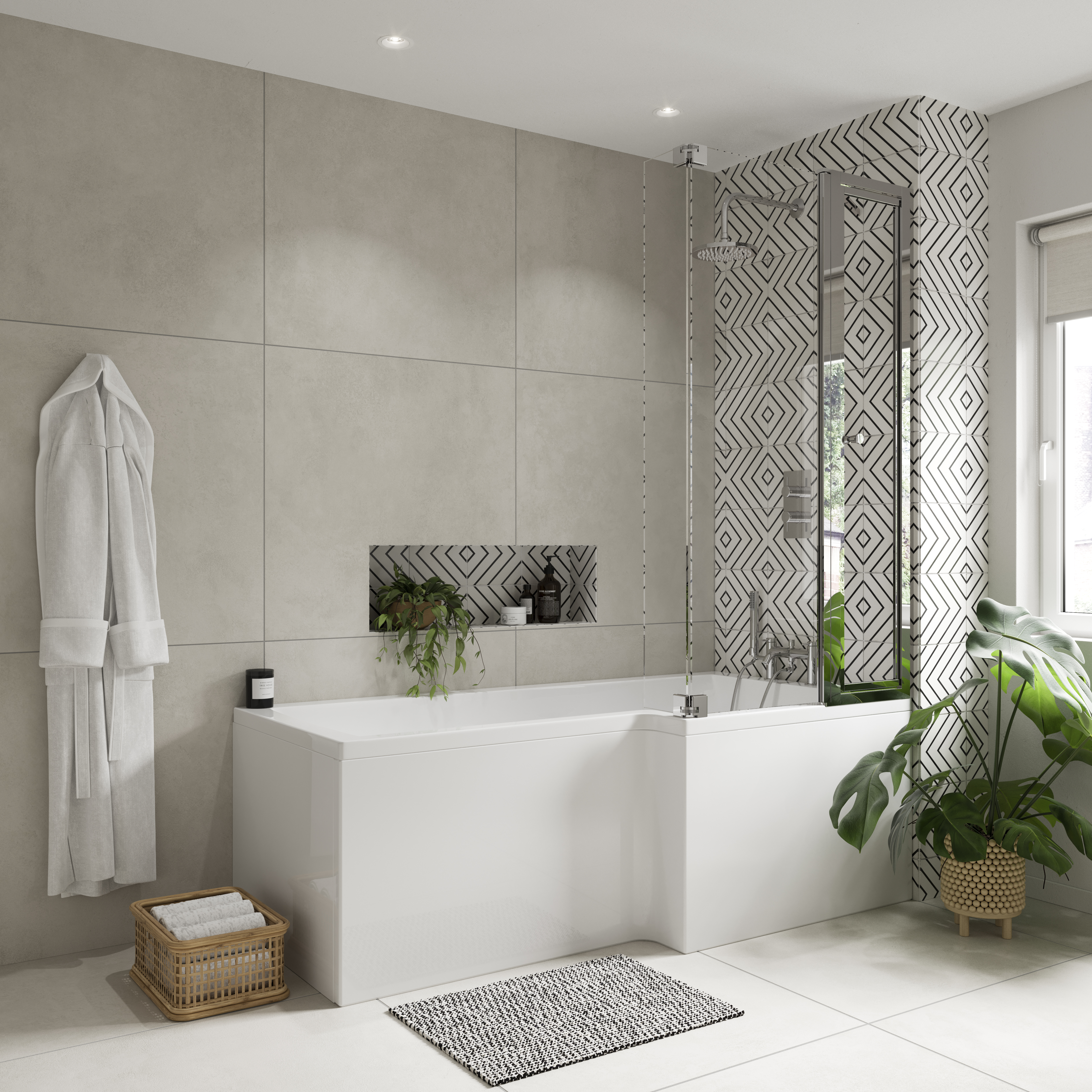

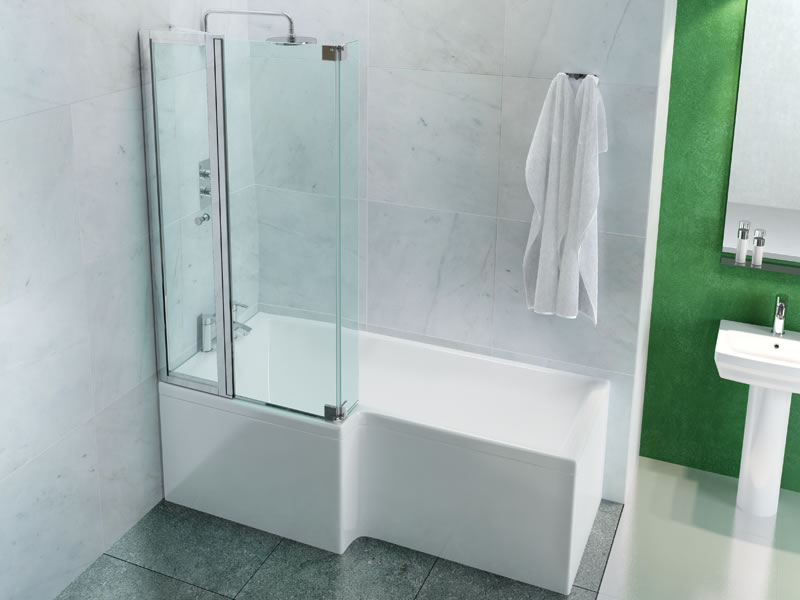

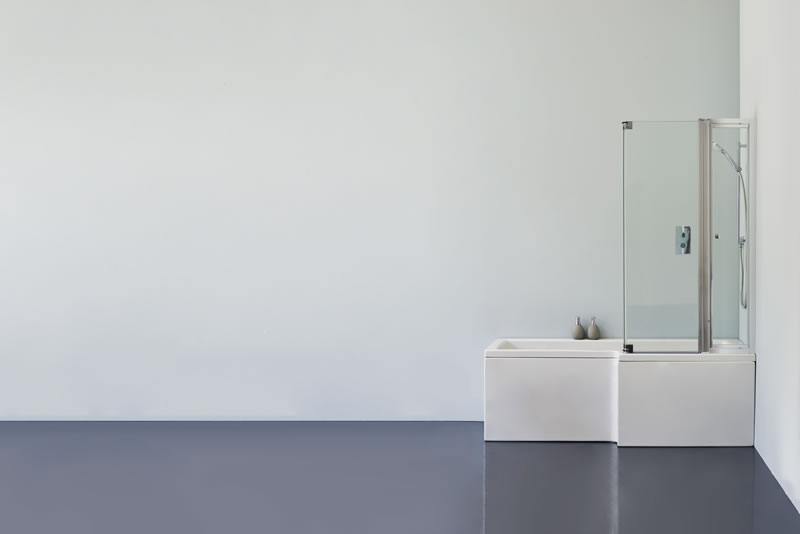

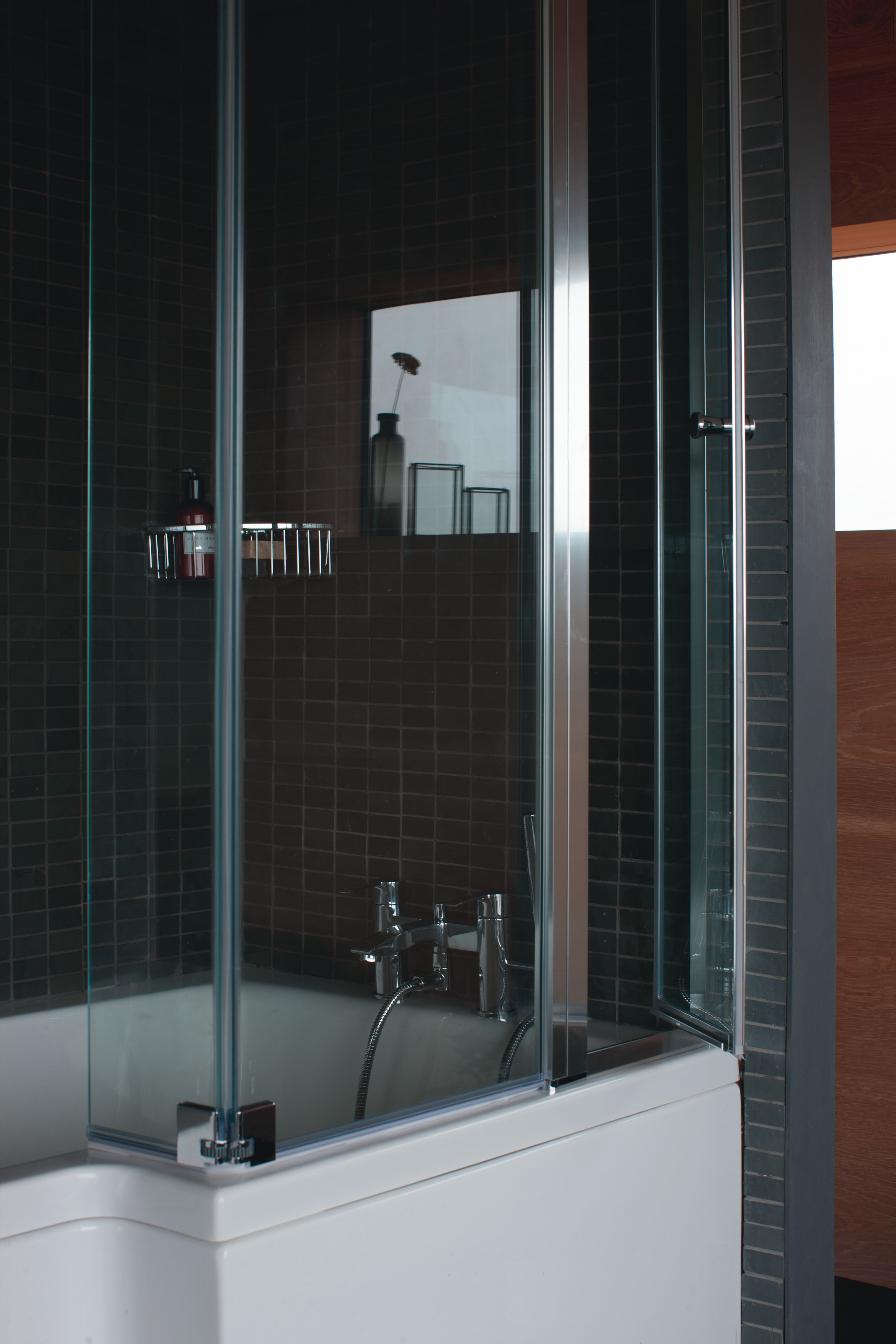

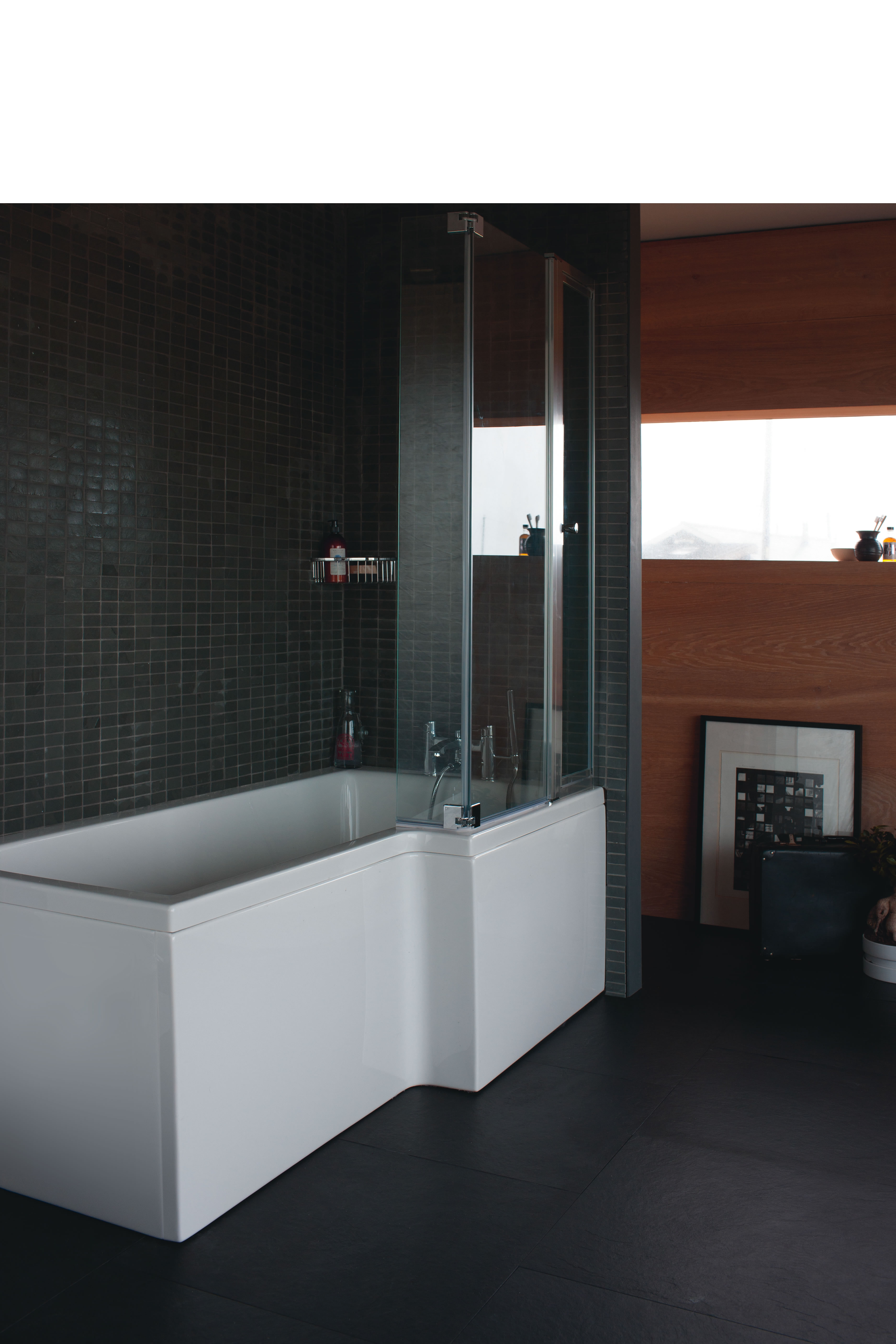

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
jpg -
Lifestyle image 5 -
tiff
jpg -
Lifestyle image 6 -
tiff
jpg -
Lifestyle image 7 -
jpg -
Product image 1 -
jpg
