Welcome to the Bathroom Brands Technical Whitebook
search
autorenew
EcoRound Showering bath
Product Options
Bath size options
left hand
|
right hand
|
As Shown
| R20 EcoRound bath RH |
Colour
| R20 - bath - Gloss White |
Material
| R20 - bath - Acrylic |
Nett Weight
| R20 - bath - 24.75kg |
Gross Weight Including Packaging
| R20 - bath - 25.75kg |
Packed Dimension
| R20 - 1510 x 910 x 425 = 0.584 m3 |
Bath water capacity
| 100 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R20E - EcoRound End Panel |
| R20F - EcoRound Front Panel 150cm |
| BS7 - EcoRound bathscreen |
| CW8 - Click-clack bath waste |
| SP232 | leg sets for EcoSquare, EcoRound baths |
Downloads
-
2D CAD-File - DWG -
R20
(R20.dwg)
-

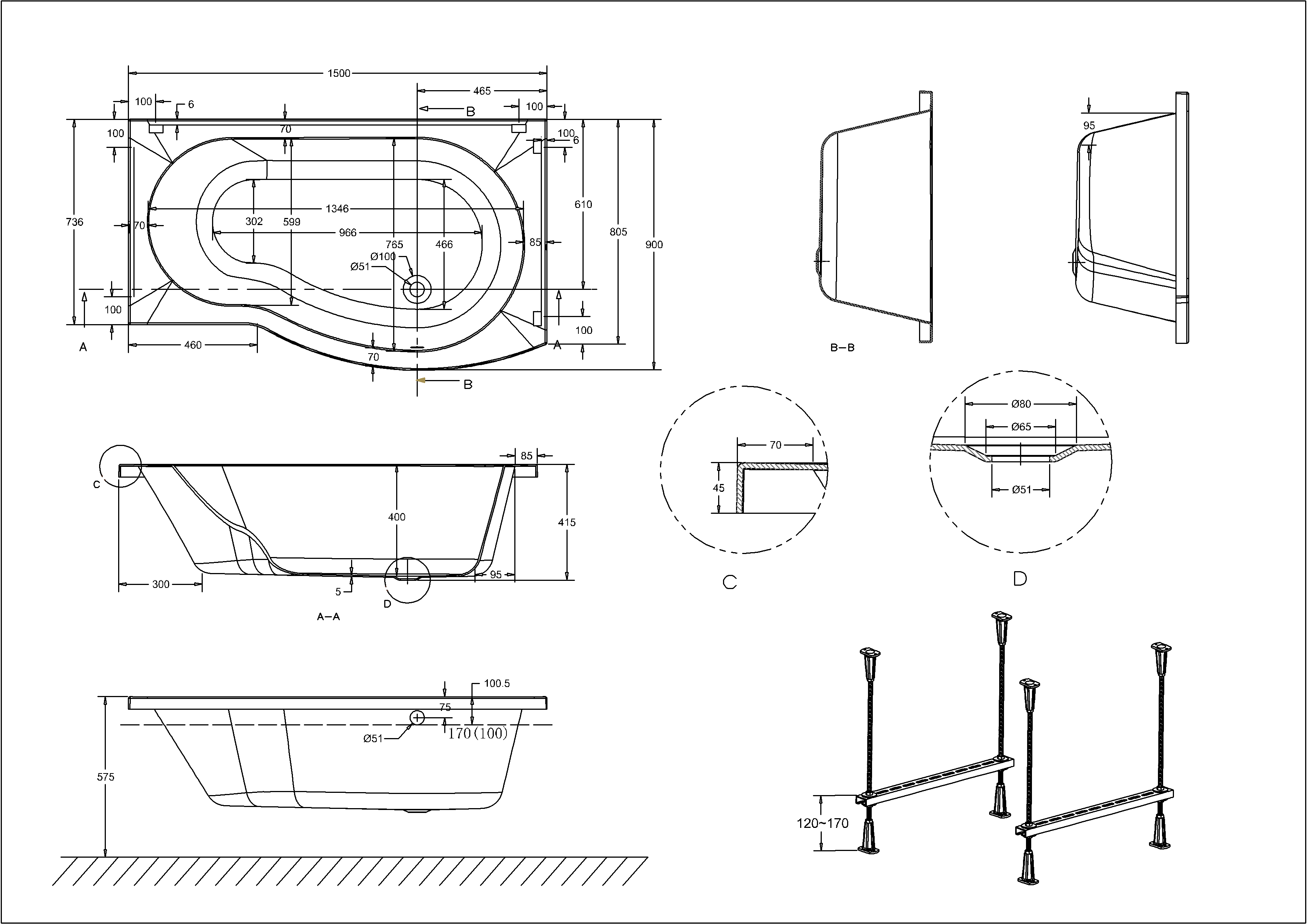

2D Drawing - PDF -
R20
(R20.pdf)
2D Drawing - PDF - R20
-
3D DWG - File - DWG
-
R20
(BS-1592R_2.dwg)
-
3D DXF - File - DXF
-
R20
(BS-1592R_2.dxf)
-
3D IGS - File - IGS
-
R20
(BS-1592R_2.igs)
-
3D RFA BIMM Objects - File - RFA
-
R20
(R20.rfa)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -
Product image 1 -
jpg
