EcoSquare bathscreen
Product Options
EcoSquare bathscreen options
bathscreen left with access panel
|
bathscreen right with access panel
|
As Shown
| BS8R EcoSquare bathscreen (right) |
Material
| BS8R - bathscreen - Aluminum |
Nett Weight
| BS8R - bathscreen - 21.7kg |
Gross Weight Including Packaging
| BS8R - bathscreen - 23.6kg |
Packed Dimension
| BS8R - 1545 x 595 x 110 = 0.1011 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Glass thickness: 6mm & 8mm |
|
Screen opens both inwards and outwards |
|
Safety glass with 3M Easy Clean Coating |
| SP184 | bottom waterproof strip for BS8L, BS8R |
| SP220 | spare fitting kit for BS8R bathscreen |
| SP229 | support bar L=370 for BS2, BS3, BS8L, BS8R |
| SP181 | top and bottom waterproof strips for access panel door on product BS8L, BS8R, BS3 – pair |
| SP180 | vertical seal between glass for BS4L, BS4R, BS5L, BS5R, BS8L & BS8R bathscreens |
| SP179 | vertical seal between profile & glass for access panel on BS3, BS8L & BS8R screens |
| SP182 | vertical seal between profile & glass for BS2, BS3, BS8L & BS8R bathscreens |
Downloads
-
2D CAD-File - DWG -
BS8R
(DCP9KXRBS8R.dwg)
-

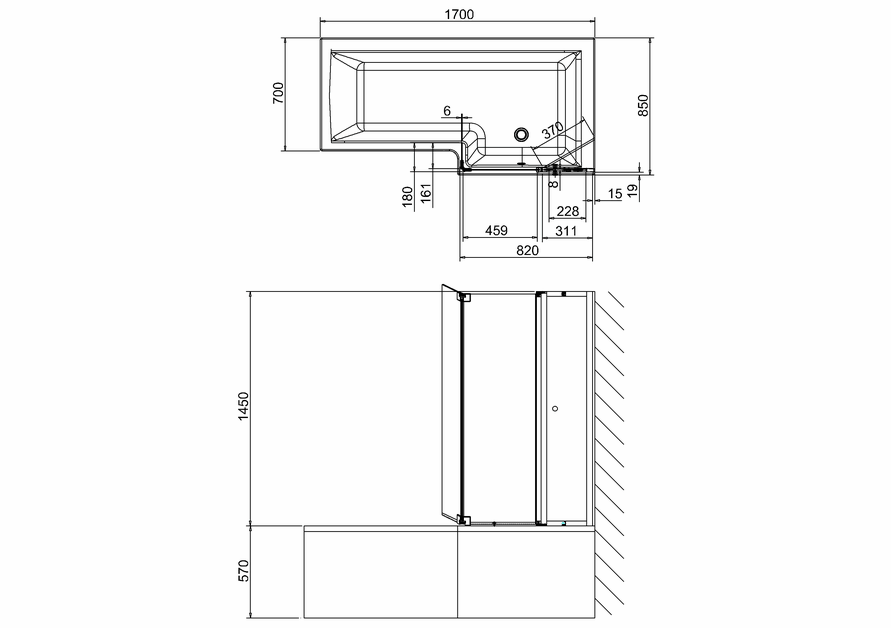

2D Drawing - PDF -
BS8R
(DCP9KXRBS8R.pdf)
2D Drawing - PDF - BS8R
-
3D DWG - File - DWG
-
BS8R
(BS8L.dwg)
-
3D DXF - File - DXF
-
BS8R
(BS8L.dxf)
-
3D IGS - File - IGS
-
BS8R
(BS8L.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS8R
(BS8L.rfa)
-

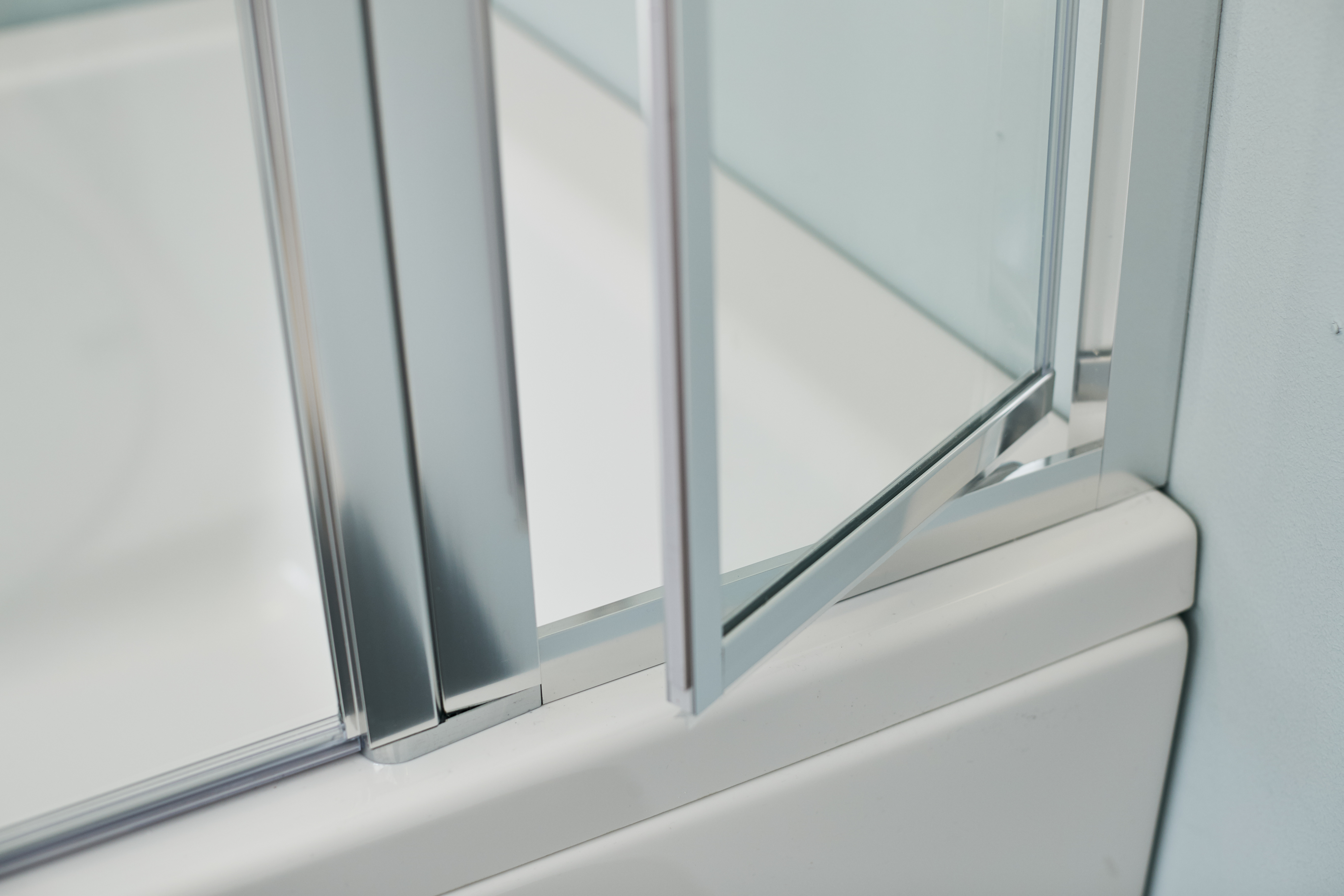

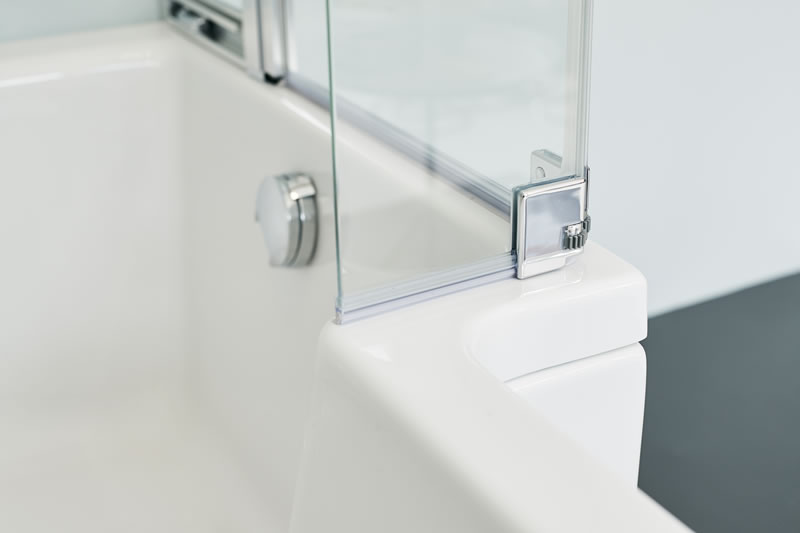

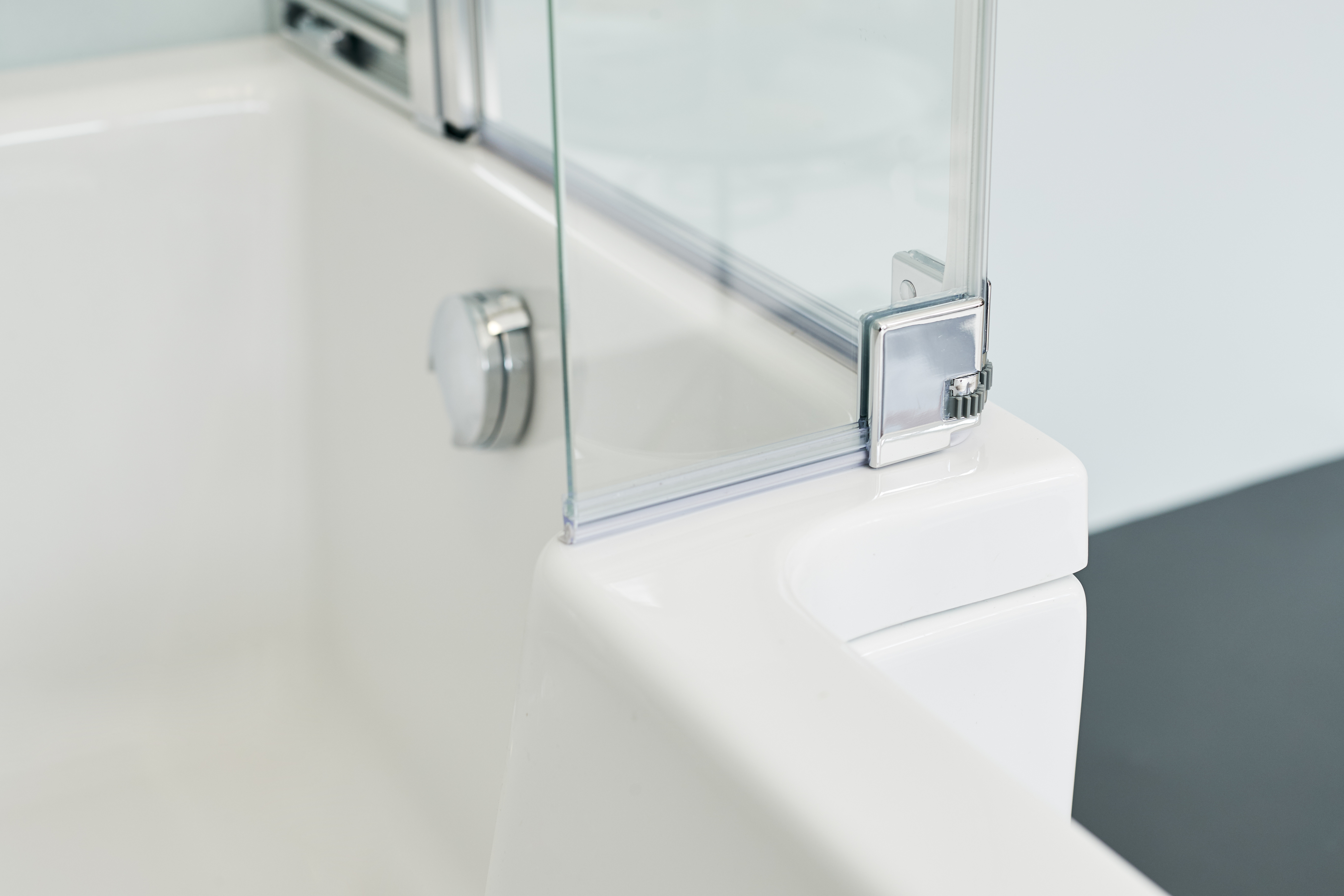

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
tiff
jpg -
Lifestyle image 5 -
tiff
jpg -
Lifestyle image 6 -
tiff
jpg -
Product image 1 -
jpg
