Regal Close Coupled WC

Product Options

WC options

with lever flush 52cm wide cistern C1

with lever flush 44cm wide cistern C3

Regal CC WC with 520 front push button cistern

with push button flush 52cm wide cistern C2

Regal CC WC with 440 front push button cistern

with push button flush 44cm wide cistern C4

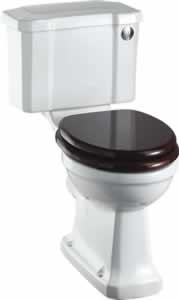

As Shown

P12 Regal close coupled pan

C4 Close coupled/low level front button cistern

S12 Mahogaony seat

A51CHR Burlington seat handle Chrome

Colour

P12 - pan - Gloss White

C4 - cistern - Gloss White

S12 - seat - Gloss Mahogany

A51CHR - accessories - Polished Chrome

Material

P12 - pan - Vitreous China

C4 - cistern - Vitreous China

S12 - seat - Molded Wood

A51CHR - accessories - Zinc Alloy

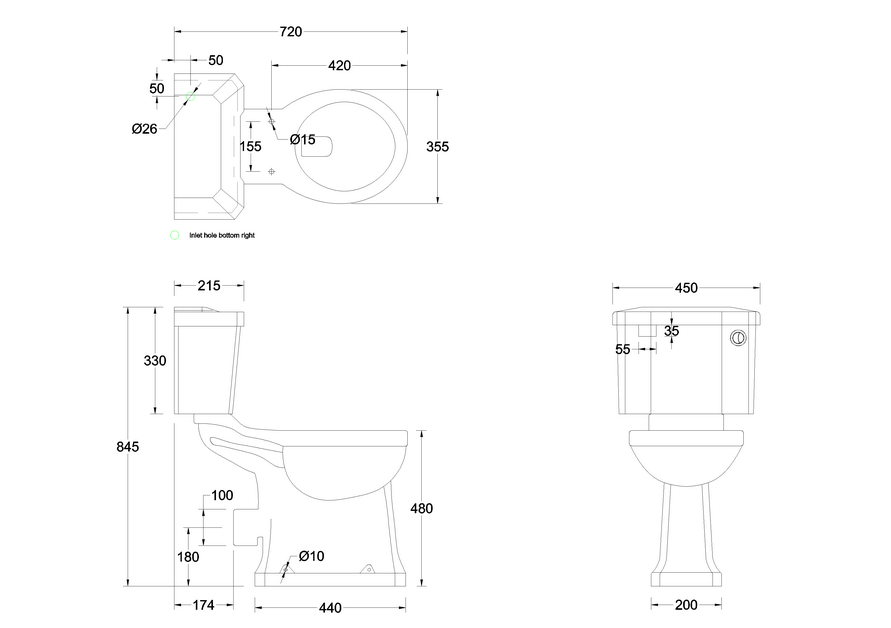

Size

P12 - 655 x 355 x 520mm

C4 - 215 x 450 x 330mm

S12 - 432 x 371 x 65mm

A51CHR - 50 x 56 x 8mm

Nett Weight

P12 - pan - 22.1kg

C4 - cistern - 12.4kg

S12 - seat - 2.87kg

A51CHR - accessories - 0.04kg

Gross Weight Including Packaging

P12 - pan - 24.7kg

C4 - cistern - 14.6kg

S12 - seat - 3.1kg

A51CHR - accessories - 0.07kg

Packed Dimension

P12 - 672 x 365 x 540 = 0.1325 m3

C4 - 537 x 227 x 360 = 0.0439 m3

S12 - 440 x 373 x 65 = 0.0107 m3

A51CHR - 60 x 60 x 100 = 0.0004 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2012

BS EN 33:2011

Additional Information

Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26

Metal connection bracket.

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25

Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP6	button Dual Flush Bottom Entry cistern fitting
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP85	cistern flush valve with control cable SP6 (excluding button and inlet valve)
SP9	cistern Push Button
SP620	complete bar hinges for S11, S12
SP192	hinge fixings for S11, S12, S16, S17 seats
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
