Chelsea Straight Basin Mixer
Product Options
Tap Base options
Indicies & lever finish
waste options
Standard base
|
Regent base
|
|
White
|
Medici
|
with pop-up waste
|
without waste
|

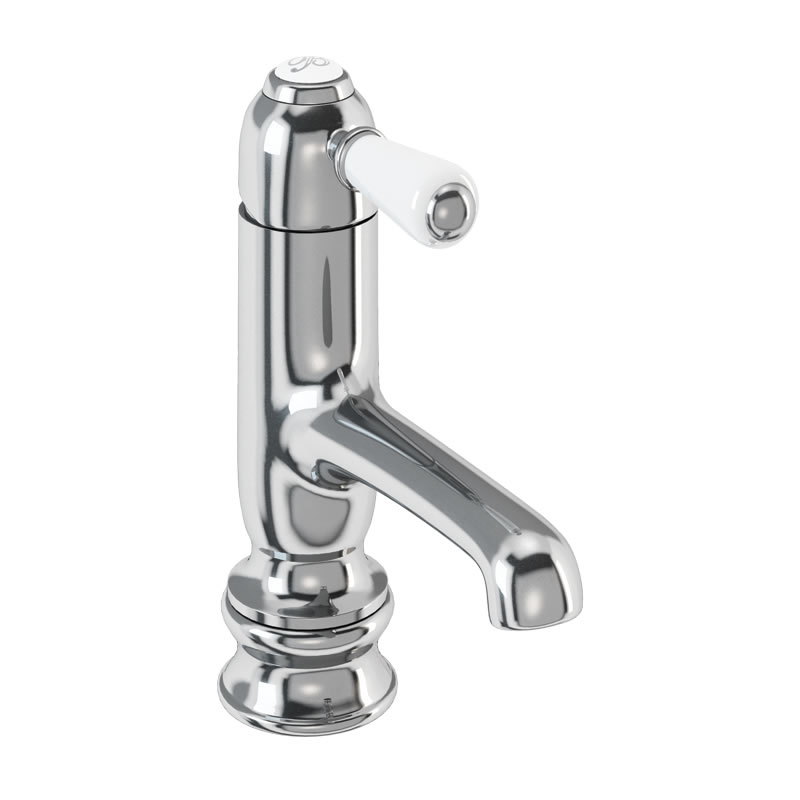

As Shown
| CH19 Chelsea straight basin mono tap without pop up waste |
| T4B Regent small single tap base |
| CHR19 - Combined product code |
Nett Weight
| CH19 - tap - 1.22kg |
| T4B - regent tap base - 0.15kg |
Gross Weight Including Packaging
| CH19 - tap - 1.41kg |
| T4B - regent tap base - 0.21kg |
Packed Dimension
| CH19 - 310 x 175 x 55 = 0.003 m3 |
| T4B - 65 x 65 x 35 = 0.0001 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 4.83 | n/a | 8.21 | 14.36 | 18 | n/a | n/a |
| Spout (aerator) | 2.9 | n/a | 4.99 | 9.11 | 11.09 | n/a | n/a |
| SP47 | b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25 |
| SP1318 | cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23 |
| SP579 | cartridge of product CH19, CH20, CH21, CH22, CH23 |
| SP1309 | cartridge retaining nut for CH19, CH20, CH21, CH22, CH23 |
| SP1054 | chelsea tap lever of CH19, CH20, CH21, CH22, CH23 |
| SP817 | chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP194 | o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT |
| SP655 | pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11 |
| SP942 | tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP640 | the ring that holds the ceramic indice of CH19 |
Downloads
-
2D CAD-File - DWG -
CHR19
(T4B CH19_LD.dwg)
-

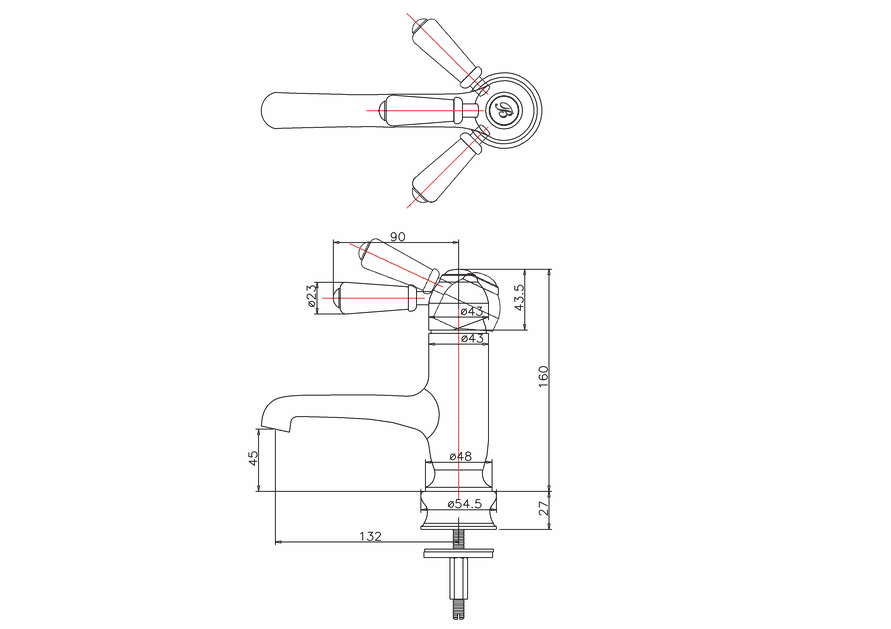

2D Drawing - PDF -
CHR19
(T4B CH19_LD.pdf)
2D Drawing - PDF - CHR19
-
3D RFA BIMM Objects - File - RFA
-
CHR19
(CHR19.rfa)
- 3D DWG - File - DWG - T4B (T4B.dwg)
- 3D DWG - File - DWG - CH19 (CH19.dwg)
- 3D DXF - File - DXF - CH19 (CH19.dxf)
- 3D IGS - File - IGS - CH19 (CH19.igs)
- 3D DXF - File - DXF - T4B (T4B.dxf)
- 3D IGS - File - IGS - T4B (T4B.igs)
