Chelsea Curved Basin Mixer
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Base options
Chelsea curved basin mixer with pop up waste Standard base Chelsea Regent curved basin mono tap with pop up waste Regent base
Indicies & lever finish
Chelsea Regent curved basin mono tap with pop up waste White Chelsea Medici Regent curved basin mono tap with pop up waste Medici
waste options
Chelsea Regent curved basin mono tap with pop up waste with pop-up waste Chelsea Regent curved basin mono tap without pop up waste without waste
Alternate Text
As Shown

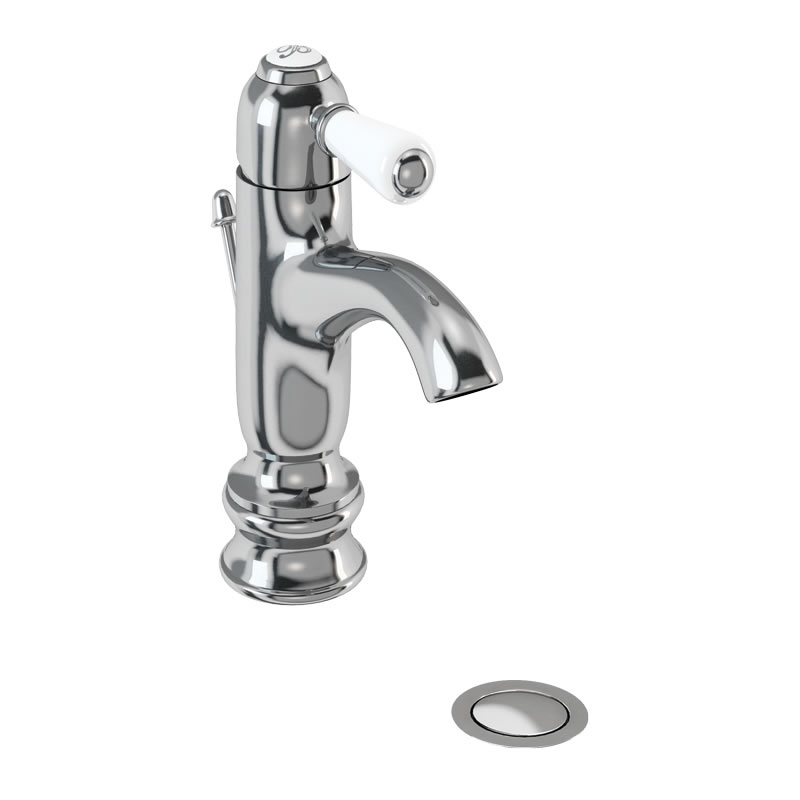

CH22 Chelsea curved basin mono tap with pop up waste
T4B Regent small single tap base
CHR22  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
ACS Approved
Alternate Text
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 5.51  n/a  12  17.31  21.16  n/a  n/a
Spout (aerator) 3.56  n/a  7.75  10.61  13  n/a  n/a
SP47 b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25
SP1318 cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23
SP579 cartridge of product CH19, CH20, CH21, CH22, CH23
SP1309 cartridge retaining nut for CH19, CH20, CH21, CH22, CH23
SP1054 chelsea tap lever of CH19, CH20, CH21, CH22, CH23
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
