Burlington basin mixer with low central indice

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

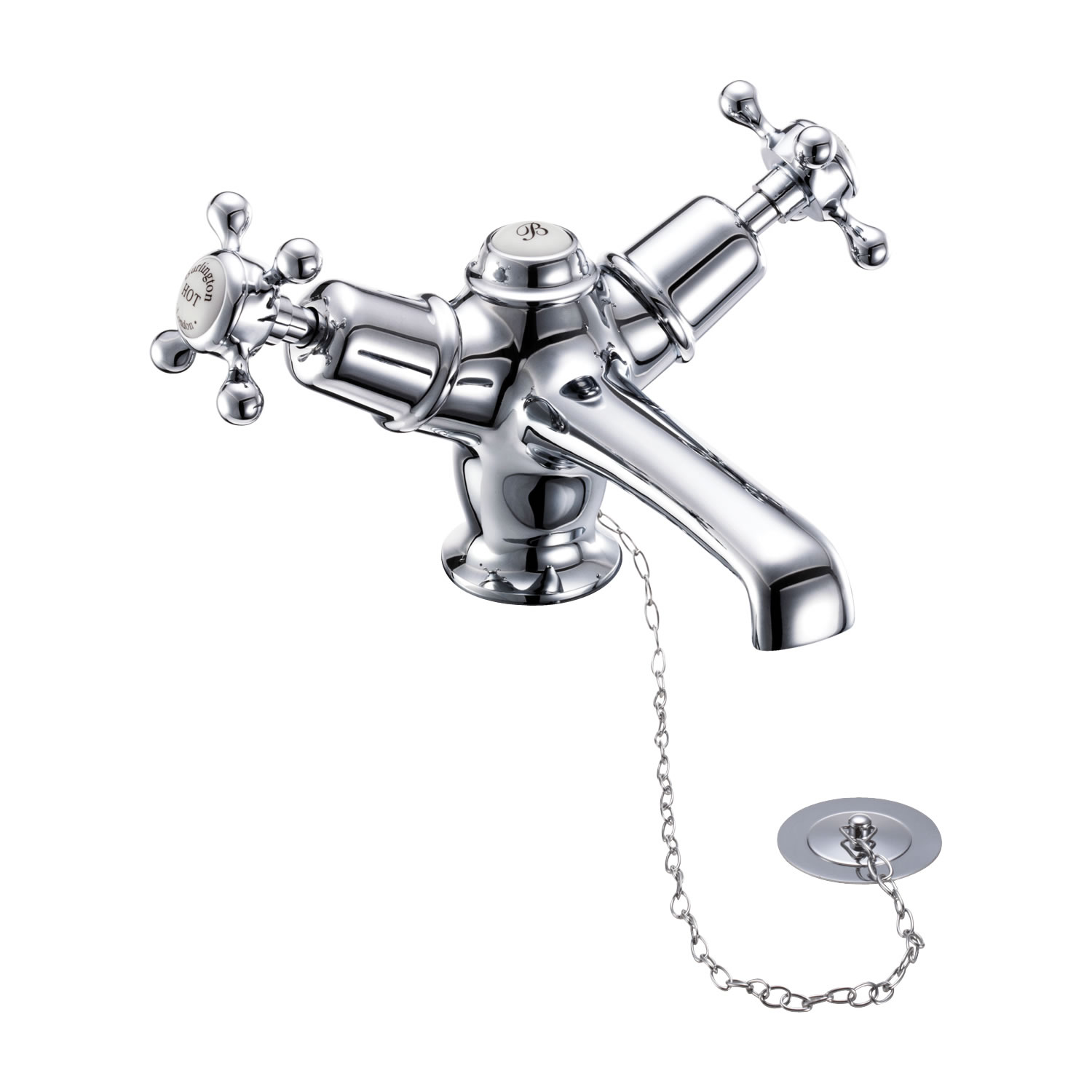

Claremont basin mixer with low central indice with plug and chain waste

quarter turn

tradional screw-down

Tap Base options

Standard base

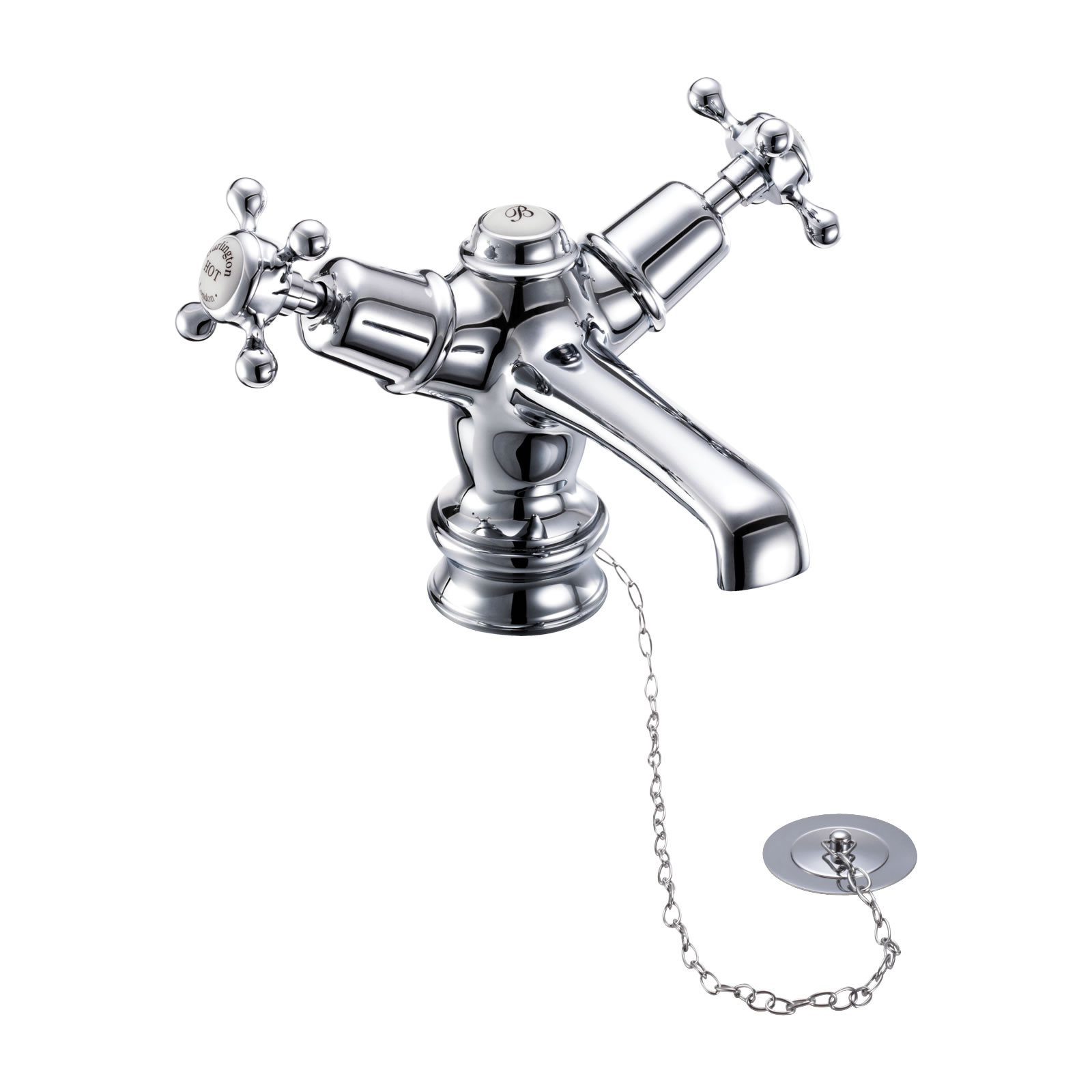

Claremont Regent basin mixer with low central indice with plug and chain waste

Regent base

Waste options

with click-clack waste

with pop-up waste

with plug & chain

As Shown

T13 Basin mixer with plug & chain

T1 Claremont tap handles

CL5 - Combined product code

Colour

T13 - tap - Polished Chrome

T1 - tap handle - Polished Chrome

Material

T13 - tap - Brass

T1 - tap handle - Brass

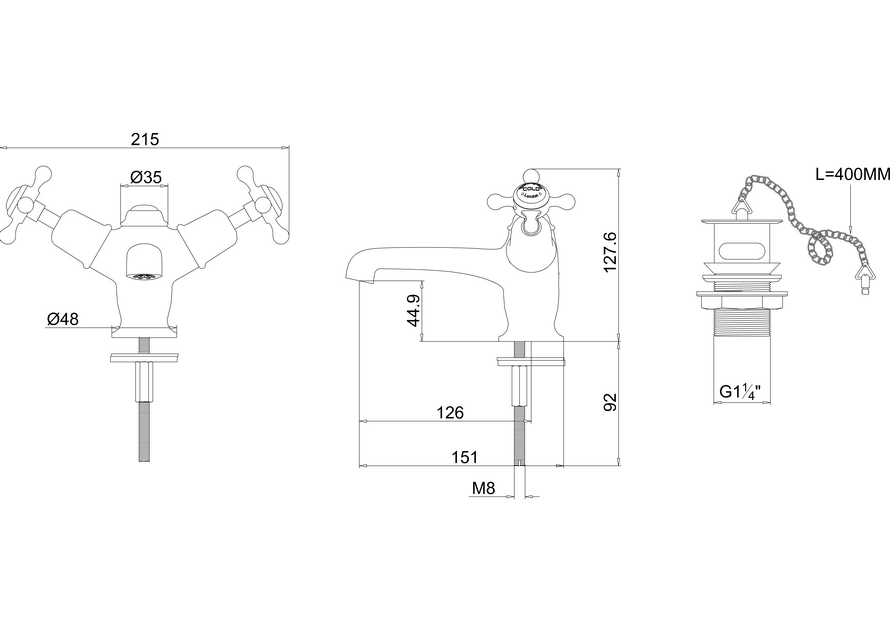

Size

T13 - 151 x 215 x 152mm

T1 - 65 x 65 x 28mm

Nett Weight

T13 - tap - 1.7kg

T1 - tap handle - 0.15kg

Gross Weight Including Packaging

T13 - tap - 2kg

T1 - tap handle - 0.17kg

Packed Dimension

T13 - 415 x 335 x 180 = 0.025 m3

T1 - 60 x 60 x 62 = 0.0002 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS 5412:1996

BS EN 200:2008

ACS Approved

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	12	13.2	15.2	19.4	21.4	n/a	n/a
Spout (aerator)	4.5	7.8	8.7	9.8	12	n/a	n/a

Spare parts

SP450	aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1726	back bottom washer for SP28
SP1189	black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235	chain for T13, T13-QT, T16, T16-QT, W1
SP817	chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP194	o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655	pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP1111	plug (including the chain, stud and nut) for T13, T13-QT
SP884	plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48	T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29	T13, T15 1, 2 full turn cartridge
SP942	tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1103	the grate for the W1, T16, T16-QT, T13, T13-QT
SP985	top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
