Welcome to the Bathroom Brands Technical Whitebook

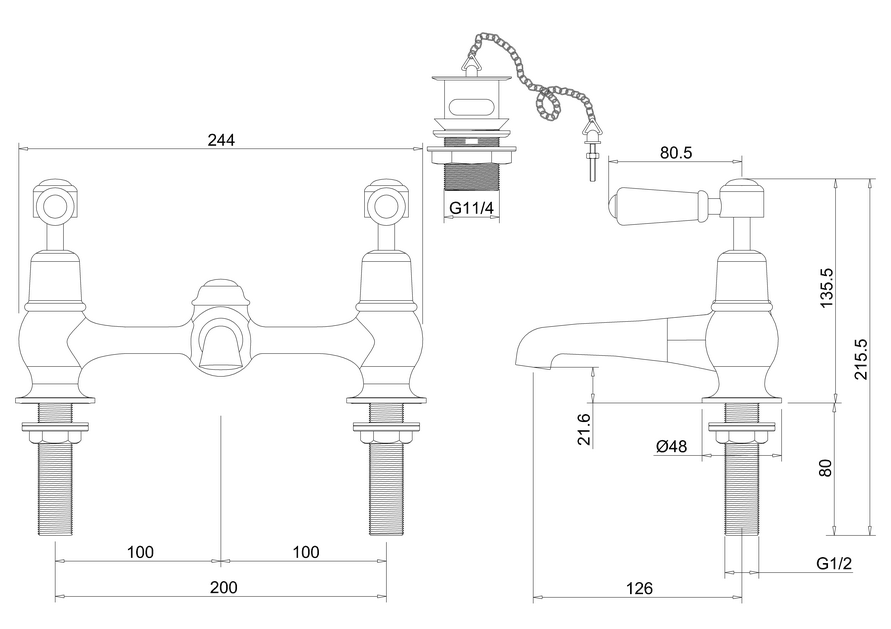

Burlington bridge basin mixer with low central indice & plug and chain waste with swivel spout
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout Claremont Anglesey 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout Anglesey Birkenhead 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout Birkenhead Handle_v2.jpg Kensington
Quarter turn options
Kensington 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout quarter turn full_done.jpg tradional screw-down
Tap Base options
Kensington 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout Standard base Kensington Regent 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout Regent base
Alternate Text
As Shown
T4 Kensington tap handles
T16-QT Quarter turn bridge basin mixer with plug & chain
KE10  -  Combined product code
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS 5412:1996
BS EN 200:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.1  16.9  18.1  20.5  23.7  n/a  n/a
Spout (aerator) 1.8  2.7  3.6  3.6  n/a  n/a
SP882 aerator for product T16, T16-QT
SP1189 black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235 chain for T13, T13-QT, T16, T16-QT, W1
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91 G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP884 plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP72 T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71 T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1103 the grate for the W1, T16, T16-QT, T13, T13-QT
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
