Edwardian 80cm basin
Product Options
Options
with Classic pedestal
|
with regal pedestal
|
with wash stand
|

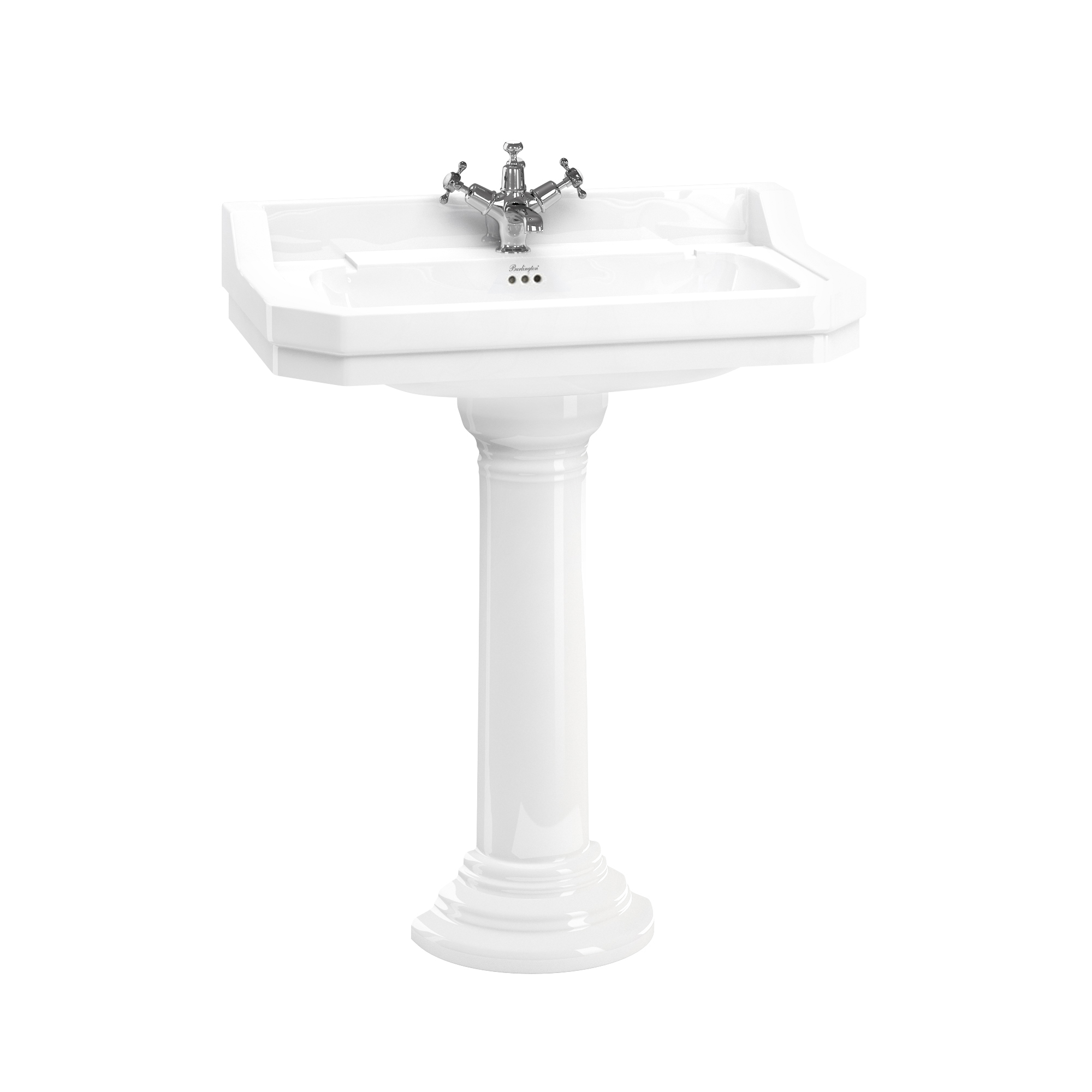

As Shown
| B181TH Edwardian 80cm basin one tap hole |
| P9R Regal round pedestal |
Nett Weight
| B181TH - basin - 22.5kg |
| P9R - pedestal - 10kg |
Gross Weight Including Packaging
| B181TH - basin - 25.88kg |
| P9R - pedestal - 11.5kg |
Packed Dimension
| B181TH - 815 x 520 x 295 = 0.125 m3 |
| P9R - 360 x 315 x 745 = 0.0845 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
B18 1TH P9R
(B18 1TH P9R_LD.dwg)
-

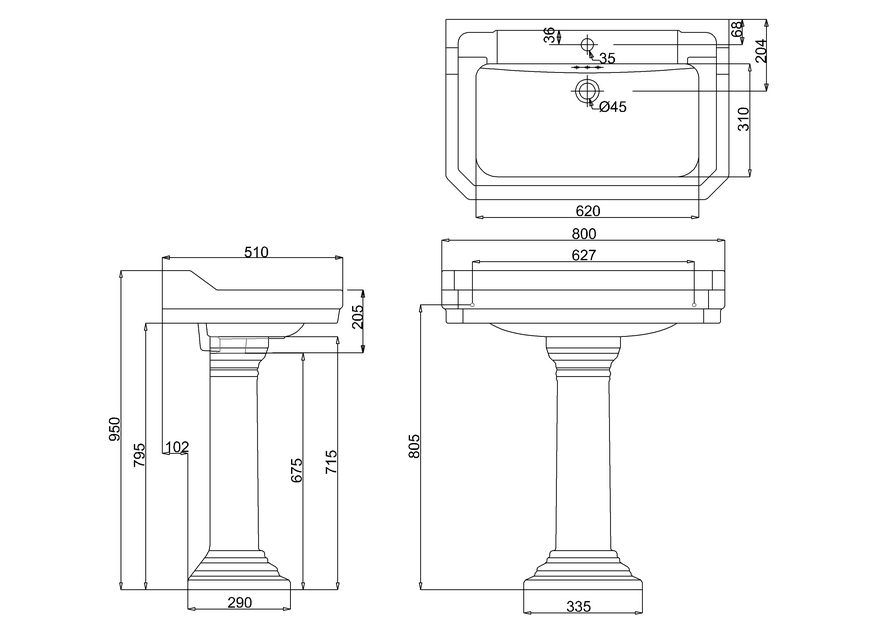

2D Drawing - PDF -
B18 1TH P9R
(B18 1TH P9R_LD.pdf)
2D Drawing - PDF - B18 1TH P9R
-
3D DWG - File - DWG
-
B18 1TH P9R
(70000.dwg)
-
3D DXF - File - DXF
-
B18 1TH P9R
(70000.dxf)
-
3D IGS - File - IGS
-
B18 1TH P9R
(70000.igs)
-
3D RFA BIMM Objects - File - RFA
-
B18 1TH P9R
(70000.rfa)
